LED RF Controller Mono - 10 Zones Remote - User Manual

1. Product Description

The RF Controller Mono 10 zones remote enable to control 10 zones separately,each zone can be

set endless receivers, each receiver maximally be controlled by 8 different remotes. Enable be

dimmed and ON/OFF by push button after connecting receivers.

2.1 Remote LC-002-021:

Operation Voltage: 3VDC Batterie, RF Wireless, Frequenz 434MHz/868MHz

2.2 Receiver LC-002-010:

12-36VDC Power Input, 4 channels x 5A, constant voltage, 4 channels x (60-120)W

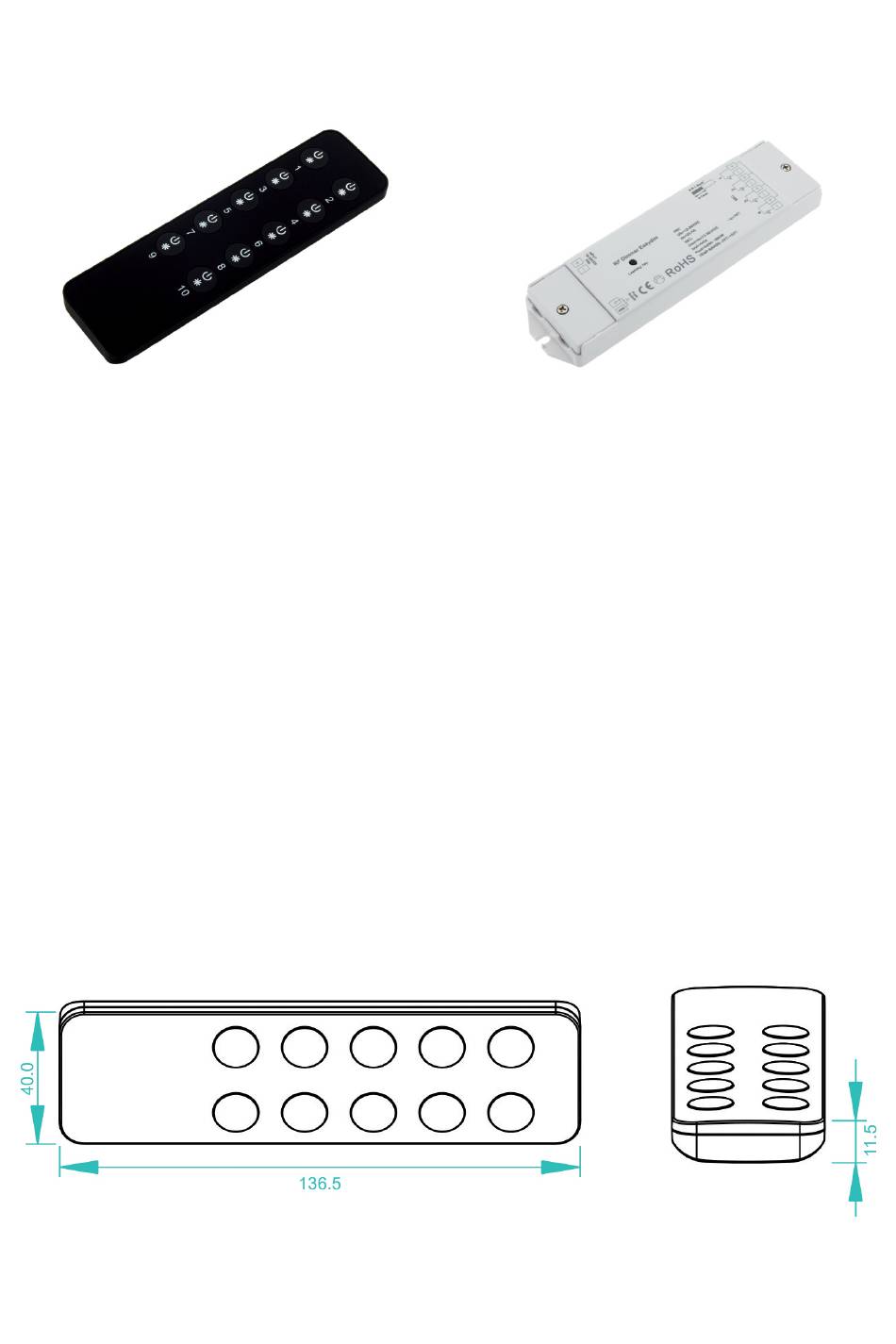

3. Abmessungen:

Remote: LC-002-021

Receiver: LC-002-010

Table of Contents

Do you have a question about the LC-002-021 and is the answer not in the manual?

Page 1 8 different remotes. Enable be dimmed and ON/OFF by push button after connecting receivers. 2. Specification 2.1 Remote LC-002-021: Operation Voltage: 3VDC Batterie, RF Wireless, Frequenz 434MHz/868MHz 2.2 Receiver LC-002-010: 12-36VDC Power Input, 4 channels x 5A, constant voltage, 4 channels x (60-120)W...
Page 2 4. Wiring Diagram 5. Safety warnings 1. To avoid installed the product in minefield, strong magnetic field and high voltage area. 2. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause fire. 3. Please install the product in a well ventilated area to ensure appropriate temperature environment.
Page 3 6. Operation Manual After you have wired all the receivers according to Figure illustration you need to do the following: 1. Pull off the plastic film cover of the battery at the back of remote. 2. In order for each receiver to know what Zone it belongs to, you will need to “pair” it to the zone you wish to use: short press the Learning Key on the receiver, then immediately short press the from the zone you wish to use.
