Maintenance; Lubricating - Belshaw Brothers Donut Robot Mark II Operator's Manual

3
WARNING
To avoid being burned, electrocuted, or
otherwise injured, always unplug the
machine and allow it to cool down before
making adjustments, clearing obstructions,
lubricating, cleaning, or disassembling.

Lubricating

Daily
Before using the machine each day, apply food
grade lubricating oil to the plunger connecting
rod. The oil should penetrate the ball lock and
the spring socket. See Figure 2-1.

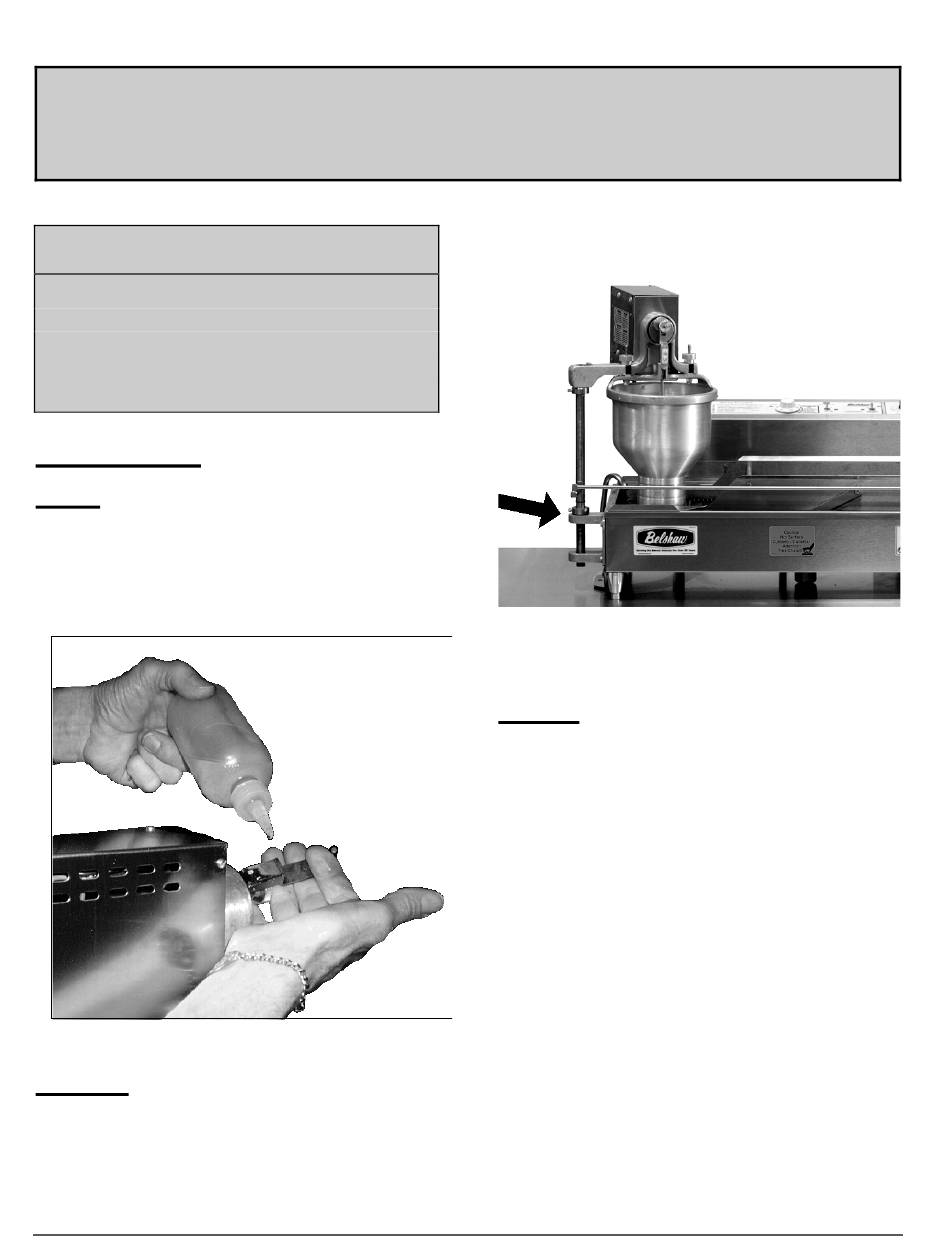

Figure 2-1. Lubricating the Connecting Rod.
Weekly
1. Apply a few drops of food grade lubricating
oil to the swing column where it contacts the
Belshaw Adamatic Bakery Group • www.belshaw-adamatic.com • 206-322-5474 •service@belshaw.com
10
Figure 2-2. Lubricating the swing column.
Yearly
Lubricate the conveyor drive gears, as explained
below.
1.
2.
3.
MN-1012EN

Maintenance

swing column bracket. See arrow on Figure
2-2.
Disconnect the machine from the power
source.
Remove the back cover of the heater head.
Lightly coat the gear teeth with food grade
grease. See Figure 2-3.
Donut Robot Mark II / Mark V TS
