Belshaw Brothers Adamatic HI18F Operator's Manual

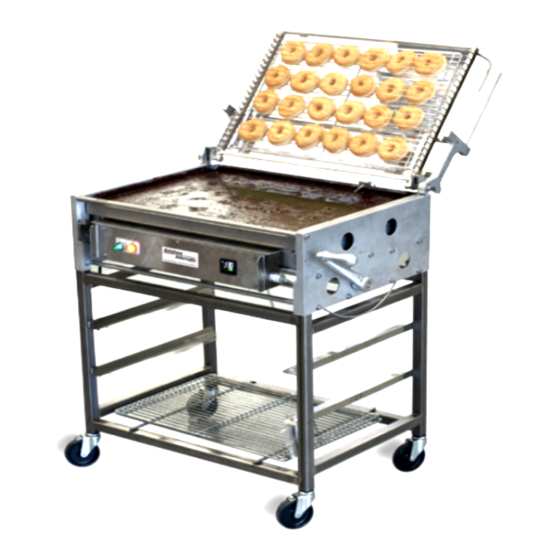

Donut icer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

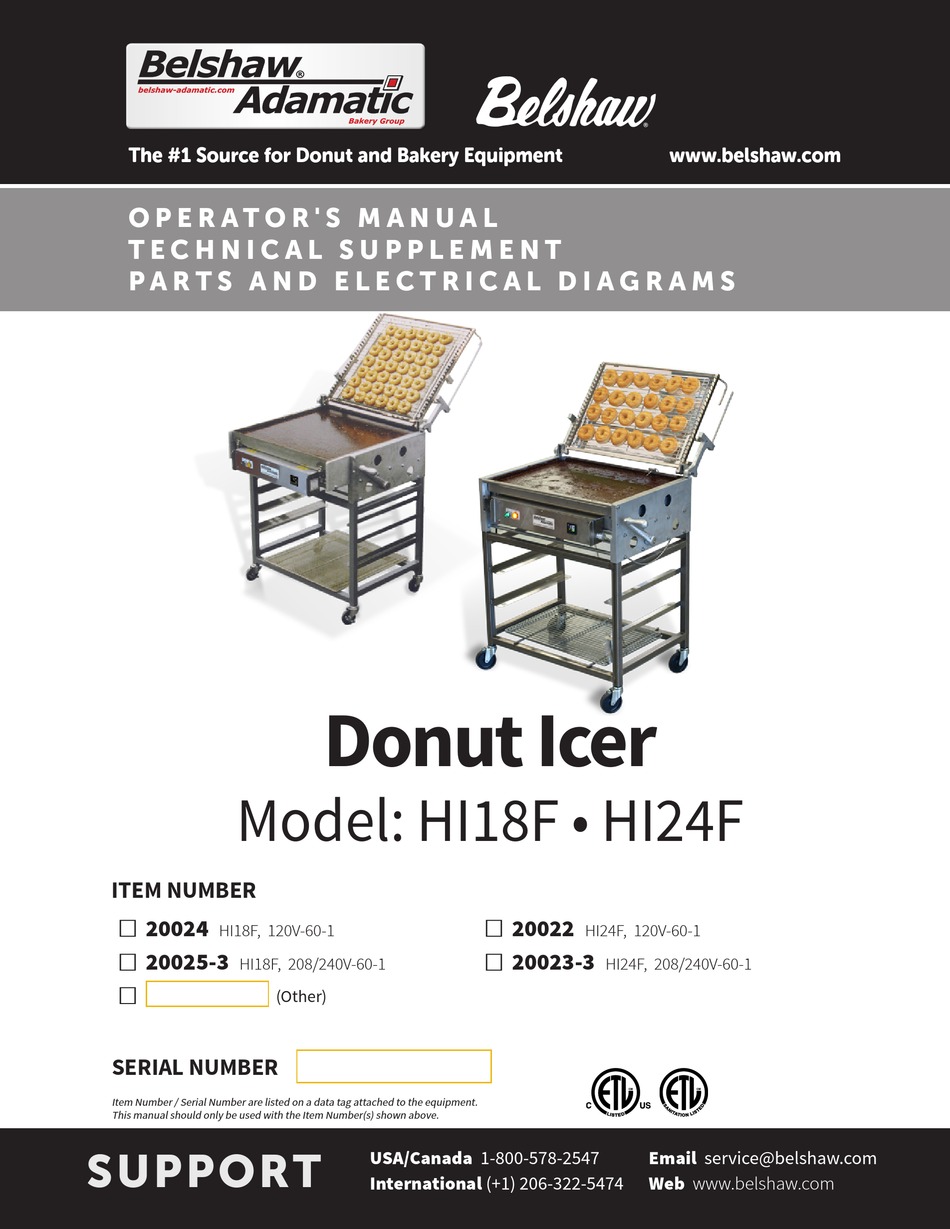

The #1 Source for Donut and Bakery Equipment
O P E R A T O R ' S M A N U A L
T E C H N I C A L S U P P L E M E N T
P A R T S A N D E L E C T R I C A L D I A G R A M S
Model: HI18F • HI24F
ITEM NUMBER
 20024
HI18F, 120V-60-1
 20025-3
HI18F, 208/240V-60-1
SERIAL NUMBER
Item Number / Serial Number are listed on a data tag attached to the equipment.
This manual should only be used with the Item Number(s) shown above.
SUPPORT
Donut Icer
(Other)
USA/Canada 1-800-578-2547
International (+1) 206-322-5474
 20022
HI24F, 120V-60-1
 20023-3
HI24F, 208/240V-60-1
Email service@belshaw.com
Web www.belshaw.com
www.belshaw.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adamatic HI18F and is the answer not in the manual?

Questions and answers

Related Manuals for Belshaw Brothers Adamatic HI18F

Summary of Contents for Belshaw Brothers Adamatic HI18F

  • Page 1 The #1 Source for Donut and Bakery Equipment www.belshaw.com O P E R A T O R ' S M A N U A L T E C H N I C A L S U P P L E M E N T P A R T S A N D E L E C T R I C A L D I A G R A M S Donut Icer Model: HI18F •...
  • Page 2 Econo-Icer HI18/HI24 Operator's Manual Belshaw Bros., Inc. 814 44 ST NW, Suite 103 Auburn, WA 98001 USA Phone: (206) 322-5474  Fax: (206) 322-5425 Email: service@belshaw.com  http://www.belshaw.com...
  • Page 3 BELSHAW FREIGHT DAMAGE POLICY Belshaw has made every effort to insure that your equipment arrives in IMPORTANT excellent condition. For your Keep This Manual For Future protection, please inspect your Reference shipment for any signs of damage that may have occurred during transport. Please note any damage that is found during inspection and file a freight claim with the shipping company...

  • Page 6: Table Of Contents

    Contents PREFACE ...................................... 2 OPERATION .................................. 4 ........................................4 PERATION INSTALLING HI18/HI24 DIGITAL TEMPERATURE RETROFIT KIT .............. 7 ......................................7 ARTS EEDED .................................. 7 NSTALLATION NSTRUCTIONS CLEANING ..................................11 MAINTENANCE ................................12 ......................................12 UBRICATION ..................................9 IGURE NSTALLING ONTROL ANEL ..................................9 IGURE LEMENT ONNECTIONS ON ELAY 1 ....................................9 IGURE HERMOCOUPLE OUTING 2 .

  • Page 7: Preface

    Preface The HI18/HI24 Econo-Icer is avoid electrocution or designed for quickly and easily icing other injury. donuts and a variety of baking products. NEVER USE force to assemble, disassemble, The HI18/HI24 Econo-Icer is meant operate, clean, or maintain to be used on a flat, stationary the machine.
  • Page 8 icing pan, it could cause serious burns or could cause someone to slip on the floor and be seriously injured. MAKE SURE that the machine and the icing are cool before attempting any adjustment, repair, disassembly, or cleaning. Hot icing can cause serious burns.

  • Page 9: Operation

    Operation Operation 1. FILL Icing Pan with icing approximately 1/2” from the top of the pan. 2. TURN ON Heater. 3. ALLOW icing to heat for 45 minutes to reach desired icing temperature. The Heating Indicator Light will 4. ROTATE Wire / Frame over icing. turn off, and the Temperature Controller will display the icing temperature.
  • Page 10 6. ROTATE the Wire / Frame over 10. LOWER the Icing Pan. the rack of donuts to be iced. 7. FIRMLY GRIP the two (2) handles and rotate the Wire / Frame and rack of donuts to be iced. 11. ROTATE the empty donut rack over the iced donuts.
  • Page 11 13. ROTATE the Wire / Frame over the icing, remove iced donuts, and repeat steps 1-13. Belshaw-Adamatic Bakery Group Econo-Icer HI18/HI24 OM, MN-1747EN CALL 800-578-2547 or EMAIL service@belshaw.com for SUPPORT...

  • Page 12: Installing Hi18/Hi24 Digital Temperature Retrofit Kit

    2 Installing HI18/HI24 Digital Temperature Retrofit Kit Heating Panel (4X Bolts). Parts Needed  Remove wires from Heating Element. 1. Heater Control Box Assembly (HI24-1017) + Hardware:  Remove old Heating Control Box Front Cover (4X Bolts).  4X .” Bolts ...
  • Page 13 the new Heating Control Box Icing Pan. (See Figure 6, 7, and pop off easily. Use care when moving wire through 9. PLUG in unit and verify all grommets. functions work properly.  Remove Front Cover of the  Rotate Green ON/OFF Switch new Heating Control Box (located furthest to the left of Assembly.
  • Page 14 Figure 1, Installing New Control Panel Figure 4, Thermocouple Routing 2 Figure 2, Element Connections on Relay Figure 5, Installation of Thermocouple Bracket Figure 3, Thermocouple Routing 1 Figure 6, Installation of Thermocouple Belshaw-Adamatic Bakery Group Econo-Icer HI18/HI24 OM, MN-1747EN CALL 800-578-2547 or EMAIL service@belshaw.com for SUPPORT...
  • Page 15 Figure 7, Installation of Thermocouple Figure 9, Controls Figure 8, Installation of Thermocouple Figure 10, Temperature Controller TROUBLESHOOTING Potential Issue What To Do Error or Alarm present on Digital Temperature Ensure Thermocouple is connected and  Control functioning properly Cycle power (Green Power Switch, or ...

  • Page 16: Cleaning

    Cleaning Once a day, clean the HI18/HI24 8. RETURN the Tray Holder to the Econo-Icer as explained below: left side rest position. 1. REMOVE any debris from the For your safety, observe the following work area before disassembling warnings throughout the entire the HI18/HI24 Econo-Icer.

  • Page 17: Maintenance

    Maintenance Lubrication 1. USE several drops of Lubriplate FMO-900-AW gear oil on the Lift Handle Axle, located under the heating panel assembly. LUBRICATE EVERY TWO WEEKS. 2. USE Lubriplate FMO-900-AW gear oil to lubricate the tray Holder and Wire Holder Pivot Pins. LUBRICATE EVERY WEEK.
  • Page 18 Econo-Icer HI18/HI24 Technical Supplement Belshaw Adamatic Bakery Group 814 44 ST NW, Suite 103 Auburn, WA 98001 USA Phone: 1-800-BELSHAW 1-800-578-2547 +1(206) 322-5474 Email: service@belshaw.com www.belshaw.com...
  • Page 19 BELSHAW FREIGHT DAMAGE IMPORTANT POLICY Keep This Manual For Future Reference. Belshaw has made every effort to insure that your equipment arrives in excellent condition. For your protection, please inspect your shipment for any signs of damage that may have occurred during transport. Please note any damage that is found during inspection and file a freight claim with the shipping company...
  • Page 20 Contents PREFACE ...................................... 4 ..............................6 ENSIONING AND EPLACEMENT MAINTENANCE ................................6 ................................. 8 NLOCKING THE ONTROLLER PROGRAMMING THE TEMPERATURE CONTROLLER ..................8 ................................. 9 HANGING PERATOR OINTS ............................10 HANGING PERATOR EVEL ARAMETERS ............................. 10 HANGING NITIAL EVEL ARAMETERS ............................
  • Page 21 Preface To transport the HI18/HI24 Econo- The HI18/HI24 Econo-Icer Icer to the workstation and unpack it, produces less than 70 dB(A) of follow the steps listed below: equivalent continuous A-weighted sound pressure at work stations. This 1. Use a fork lift or pallet jack to has been determined during a run of transport the shipping crate to the machine with shortening in the...
  • Page 22 To avoid electrocution, MAKE SURE that all MAKE SURE that the electrical cords are not machine and the icing are frayed or cracked and that cool before attempting any they do not pass through adjustment, repair, any water or icing. disassembly, or cleaning.
  • Page 23 Maintenance Wire Tensioning and 1. PLACE looped end of wire over the Wire Retainer Pin (HI18- Replacement. 0004) placing it in the groove. The following tools are required for 2. THREAD other end of wire wire tensioning and replacement: through the hole in the Wire Adjusting Pin (HI24-0020) and ...
  • Page 24 6. TIGHTEN the #10-32 machine also tighten the loop around the Wire Retainer Pin.) screw to hold pin in place. 5. TIGHTEN the wire until taut, 7. TRIM excess tail of the end of removing all slack. Do Not Over wire with wire cutters.
  • Page 25 Programming the Temperature Controller The TJ-0184D-1 or 2 Controller Unlocking the Controller comes per-programmed and protected so the operator cannot change the To unlock the controller: setup parameters. To change any settings, you must first unlock the keys for more 1.
  • Page 26 PARAMETER FACTORY PRESENT UNIT FRONT EXPLANATION OF DEFAULT SETTING PANEL PRESENT SETTING SETTING Protection Parameters 2:Display and change Operation/Adjustment of only "PV" and Protect "PV/SP" parameters are allowed. [2] Initial Setting/Communications 2:Prohibited. [2] Protect Changing Operator Set Points To change operator set points: (Must key to move to the 1.
  • Page 27 Changing Operator Level Parameters To change operator level parameters: (Must be unlocked.) 1. PRESS the key for less than 1 second. key to move to the 2. PRESS the next parameter. 3. PRESS the key to change the parameter. key to return to 4.
  • Page 28 key for more PRESS the operator screen. than 1 second return to PARAMETER FACTORY PRESENT UNIT FRONT EXPLANATION OF DEFAULT SETTING PANEL PRESENT SETTING SETTING Initial Level Parameters 8:Thermocouple [J] Input Type (-20.0 to 400.0°C or 0.0 to 750.0°F) [8] Temperature Unit °F [F] SP Upper Limit...
  • Page 29 PARAMETER FACTORY PRESENT UNIT FRONT EXPLANATION OF DEFAULT SETTING PANEL PRESENT SETTING SETTING Advanced Level Parameters Alarm 1 Latch Enabled [oN] PV/SP No. 1 Display 1:"PV/SP/No display" Selection PV Decimal Point Display OFF [ Locking the Controller Setting the Controller to Default Settings After programming: To lock the controller:...
  • Page 30 Troubleshooting If you have a problem with your HI18/HI24 Econo-Icer that you CAUTION cannot solve, call your dealer or IF YOU PERFORM REPAIRS YOURSELF, another qualified technician. OR HAVE THEM PERFORMED BY ANYONE OTHER THAN A SERVICE If your dealer cannot help you, please TECHNICIAN AUTHORIZED BY call Belshaw Adamatic at 800-578- BELSHAW ADAMATIC, YOU DO SO AT...
  • Page 31 Troubleshooting Specifics NO HEAT AND ON/OFF SWITCH DOES NOT LIGHT UP Possible Causes What To Do Unit not plugged in or wall electrical breaker is Plug unit in and/or check electrical outlet. tripped. ON/OFF SWITCH ON AND LIT UP, HEATING LIGHT NOT ON Possible Causes What To Do Loose wire.
  • Page 32 Parts Diagrams for HI18F, HI24F Mark the Item Number for your Icer below. ABOUT ITEM NUMBERS: Icer models are identified by an Item Number. You need your Icer’s Item Number to find the correct parts diagrams for your glazer. The Item Number is located on a data tag on the icer. When the item number is known, it should be checked off on the cover page of this manual, and also in the table below.
  • Page 33 DIAGRAM: HI18-2012TAB, OVERALL ASSEMBLY 120V and 208-240V models Model: HI18F Item Numbers: 20024, 20025-3 TO IDENTIFY MODEL AND ITEM NUMBER, SEE DATA TAG ON ICER © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 34 © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 35 DIAGRAM: HI24-2005TAB, OVERALL ASSEMBLY 120V and 208-240V models Model: HI24F Item Numbers: 20022, 20023-3 TO IDENTIFY MODEL AND ITEM NUMBER, SEE DATA TAG ON ICER © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 36 © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 37 DIAGRAM: HI18-1300, HEATING PANEL ASSEMBLY 120V and 208-240V models Model: HI18F Item Numbers: 20024, 20025-3 TO IDENTIFY MODEL AND ITEM NUMBER, SEE DATA TAG ON ICER © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 38 DIAGRAM: HI24-1300, HEATING PANEL ASSEMBLY 120V and 208-240V models Model: HI24F Item Numbers: 20022, 20023-3 TO IDENTIFY MODEL AND ITEM NUMBER, SEE DATA TAG ON ICER © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 39 © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 40 DIAGRAM: HI18-1706, ELECTRICAL ASSEMBLY/DIAGRAM HI18F, HI24F (120-Volt models) Item Numbers: 20024, 20022 TO IDENTIFY MODEL AND ITEM NUMBER, SEE DATA TAG ON ICER © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 41 © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 42 DIAGRAM: HI18-1708, ELECTRICAL ASSEMBLY/DIAGRAM HI18F, HI24F (208-240 Volt models) Item Numbers: 220025-3, 20023-3 TO IDENTIFY MODEL AND ITEM NUMBER, SEE DATA TAG ON ICER © Belshaw Adamatic Bakery Group, Auburn, WA 98001 USA. All Rights Reserved. 04/18 DIAGRAMS PAGE...
  • Page 43 DIAGRAM: HI18-1002, DONUT RETAINER FRAME Model: HI18F, Item Numbers 20024, 20025-3 TO IDENTIFY MODEL AND ITEM NUMBER, SEE DATA TAG ON ICER DIAGRAM: HI24-1002, DONUT RETAINER FRAME Model: HI24F, Item Numbers 20022, 20023-3 TO IDENTIFY MODEL AND ITEM NUMBER, SEE DATA TAG ON ICER ©...
  • Page 44 Belshaw Adamatic Bakery Group Limited Warranty / Return Policy Subject to the terms and limitations set forth in this limited warranty (“Limited Warranty”), Belshaw Adamatic Bakery Group (also referred to as “the Manufacturer”) warrants to the original purchaser (“Purchaser”) of Manufacturer’s equipment and parts (“Products”), Belshaw Adamatic Bakery Group’s manufacture and assembly of Products to be free from defects in workmanship and material which would result in product failure under normal use and service.
  • Page 45 Warranty Claims In case of warranty claims relating to your Product, you must follow the instructions below. Report Claims to Your Authorized Distributor or Dealer or to Belshaw Adamatic Bakery Group As soon as you discover a problem, contact the Distributor or Dealer from whom you purchased the Product or Belshaw Adamatic Bakery Group.
  • Page 46 The #1 Source for Donut and Bakery Equipment www.belshaw.com BELSHAW ADAMATIC BAKERY GROUP 814 44th Street NW, Suite 103 Auburn, WA 98001 USA 1-800-BELSHAW 1-800-578-2547 (USA/Canada) (+1) 206-322-5474 (Worldwide) service@belshaw.com an Ali Group Company The Spirit of Excellence...
