Belshaw Brothers Type K Operation And Service Manual

Belshaw Brothers Type K Operation And Service Manual

Pancake dispenser

Advertisement

Quick Links

Quality bakery equipment for over 90 years
K
Type

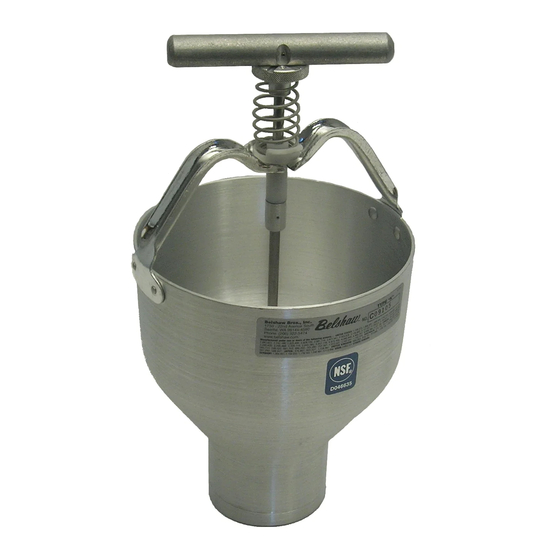

Pancake Dispenser
OPERATION AND SERVICE MANUAL
MANUAL REF: MN-1537 0112 • © 05-2014
BELSHAW ADAMATIC BAKERY GROUP • 206-322-5474 • 800-578-2547
KEEP IN A SAFE PLACE
© Belshaw Adamatic Bakery Group 01-2012
WWW.BELSHAW.COM • WWW.BELSHAW-ADAMATIC.COM • SERVICE@BELSHAW.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the Type K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Belshaw Brothers Type K

  • Page 1 Quality bakery equipment for over 90 years Type Pancake Dispenser OPERATION AND SERVICE MANUAL MANUAL REF: MN-1537 0112 • © 05-2014 BELSHAW ADAMATIC BAKERY GROUP • 206-322-5474 • 800-578-2547 KEEP IN A SAFE PLACE © Belshaw Adamatic Bakery Group 01-2012 WWW.BELSHAW.COM •...
  • Page 2 BELSHAW ADAMATIC BAKERY GROUP • 206-322-5474 • 800-578-2547 Toll Free WWW.BELSHAW.COM • WWW.BELSHAW-ADAMATIC.COM • SERVICE@BELSHAW.COM...
  • Page 3 814 44TH STREET NW SUITE 103 AUBURN, WA 98001 800.578.2547 USA/Canada (+1)206.322.5474 International WWW.BELSHAW-ADAMATIC.COM WWW.BELSHAW.COM SERVICE@BELSHAW.COM Quality bakery equipment for over 90 years TYPE K PANCAKE DISPENSER OPERATION & SERVICE MANUAL MANUAL REF: MN-1537 0112 • © 05-2014 BELSHAW ADAMATIC BAKERY GROUP...
  • Page 4 OPERATION INSTRUCTIONS FOR TYPE K DEPOSITORS How to Operate Type K Depositors See that the plunger is properly locked in place as per instructions on “How to Insert Plunger” below Operate the machine while it is empty to be certain that it operates freely.
  • Page 5 Pass the tube legs through the upper piston and when fully seated, re-hook the lock spring. Video of Type K Pancake Dispenser disassembly and reassembly is available by going to www.YouTube.com and searching “Belshaw Pancake Dispenser”...
  • Page 6 CARE, MAINTENANCE, and CLEANING INSTRUCTIONS for PLUNGERS and HOPPERS The plungers and hoppers of your Type K Depositor are precision instru- ments built from alloy steel and aluminum. They should be handled with care to insure continued satisfactory performance. When cleaning aluminum, selection of the right type cleaner is your most important consideration.
  • Page 7 Remove Valve Assembly (K-20) from Cage Assembly (K-22A). Clean all parts in warm water with recommended detergents. Dry completely. Reassemble plunger. TYPE K PANCAKE DISPENSER OPERATION & SERVICE MANUAL MANUAL REF: MN-1537 0112 • © 05-2014 BELSHAW ADAMATIC BAKERY GROUP...
  • Page 8 BELSHAW ADAMATIC BAKERY GROUP • 206-322-5474 • 800-578-2547 Toll Free WWW.BELSHAW.COM • WWW.BELSHAW-ADAMATIC.COM • SERVICE@BELSHAW.COM...
  • Page 9 K-24A, K-26NSF, K-28, K-29NSF, K-30, K-43 (2), K-44, K-1028) Note: The Type K Pancake Dispenser does not accept a Donut or Hushpuppy Plunger TYPE K PANCAKE DISPENSER OPERATION & SERVICE MANUAL MANUAL REF: MN-1537 0112 • © 05-2014 BELSHAW ADAMATIC BAKERY GROUP...
  • Page 10 Belshaw Adamatic Bakery Group Limited Warranty / Return Policy Belshaw Adamatic Bakery Group (also referred to as “the Manufacturer”) warrants parts of its manufacture and assembly of equipment to be free from defects in workmanship and material which would result in product failure under normal use and service.
  • Page 11 Office Hours: Monday – Friday, 6am to 4pm, USA Pacific Time Belshaw Adamatic Bakery Group www.belshaw-adamatic.com www.belshaw.com Phone (+1) 206-322-5474 Revised 02/20/12 Limited Warranty Page 2 of 2 TYPE K PANCAKE DISPENSER OPERATION & SERVICE MANUAL MANUAL REF: MN-1537 0112 • © 05-2014 BELSHAW ADAMATIC BAKERY GROUP...
