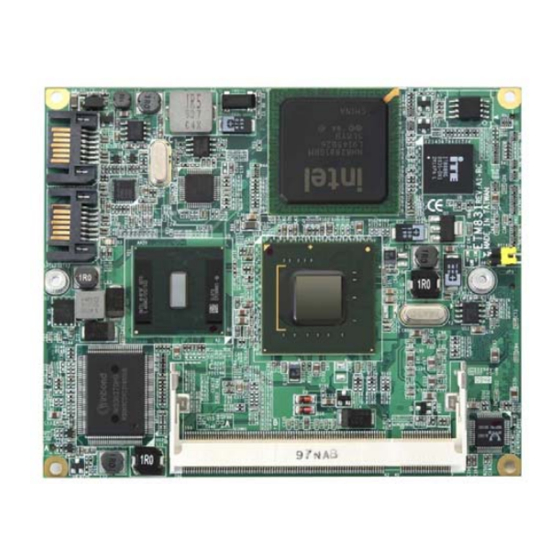

ETM831 Series Quick Installation Guide

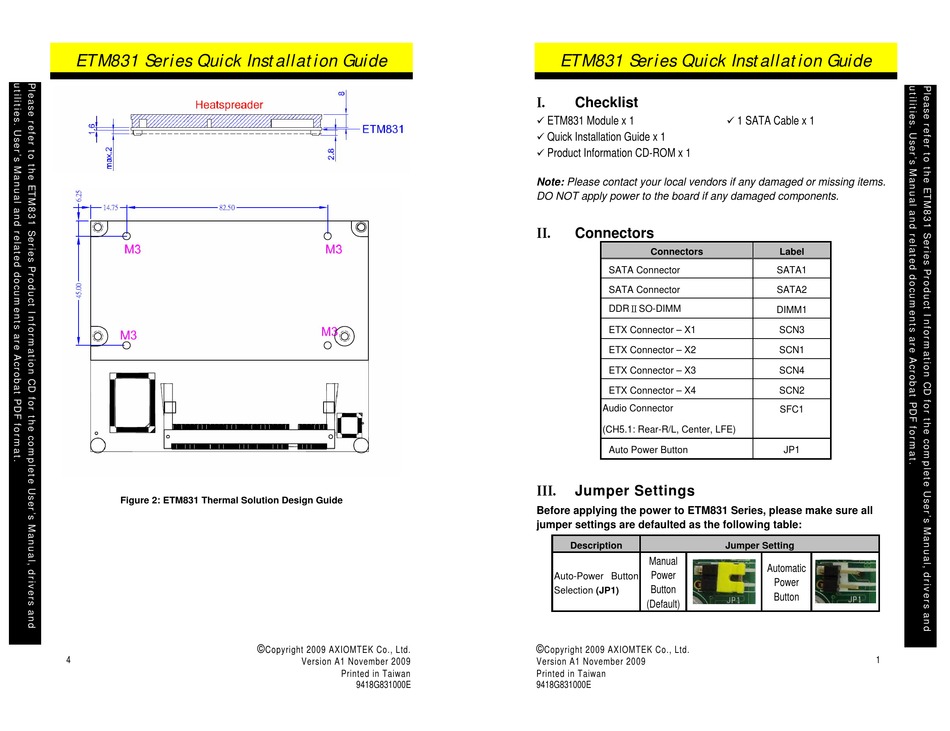

Figure 2: ETM831 Thermal Solution Design Guide
4
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 November 2009
Printed in Taiwan
9418G831000E
ETM831 Series Quick Installation Guide
I.
Checklist
ETM831 Module x 1
Quick Installation Guide x 1
Product Information CD-ROM x 1
Note: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II.
Connectors
Connectors
SATA Connector
SATA Connector
DDRⅡSO-DIMM
ETX Connector – X1
ETX Connector – X2
ETX Connector – X3
ETX Connector – X4
Audio Connector
(CH5.1: Rear-R/L, Center, LFE)
Auto Power Button
III.
Jumper Settings
Before applying the power to ETM831 Series, please make sure all
jumper settings are defaulted as the following table:
Description
Manual
Power
Auto-Power Button
Button
Selection (JP1)
(Default)
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 November 2009
Printed in Taiwan
9418G831000E
1 SATA Cable x 1
Label
SATA1
SATA2
DIMM1
SCN3
SCN1
SCN4
SCN2
SFC1
JP1
Jumper Setting
Automatic
Power
Button
1
