NetXtreme-E User's Manual

BCM957416M4160

This rNDC has 10GBaseT and 1000BaseT RJ-45 ports, each with two LEDs to indicate traffic activities and link
speed. The LEDs are visible as shown in

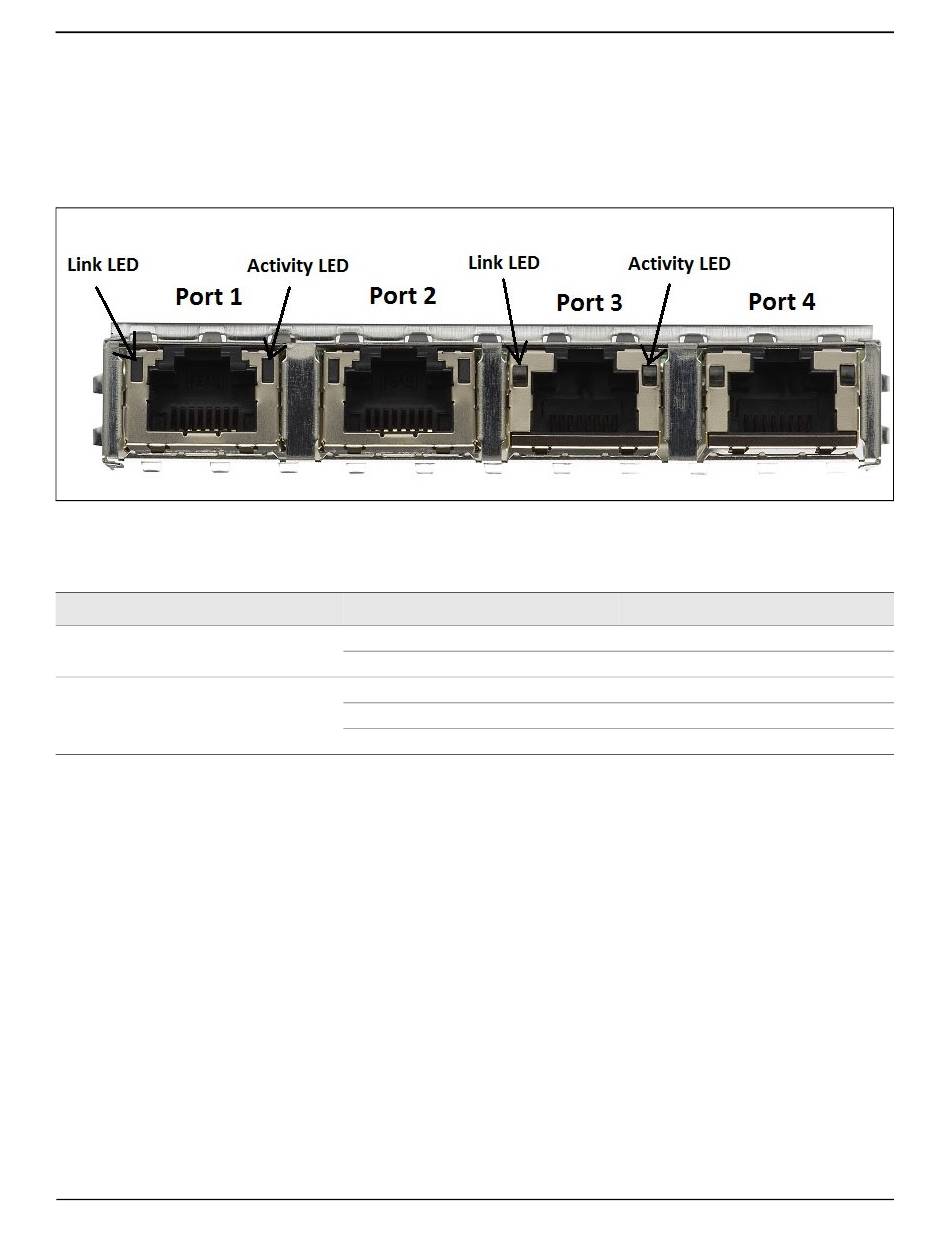

Figure 12: BCM957416M4160 Network Daughter Card (rNDC) Activity and Link LED Locations
Table 12: BCM957416M4160 Network Daughter Card (rNDC) Activity and
LED Type
Activity
Link
February 26, 2018 • NetXtreme-E-UG100
Figure 12.
Link LED Locations 10GBaseT Port 1 and 2
Color/Behavior
Off
Green blinking
Off
Green
Amber
Network Link and Activity Indication
Notes
No Activity
Traffic Flowing Activity
No Link
Linked at 10 Gbps
Linked at 1 Gbps
Page 19
