NetXtreme-E User's Manual

BCM957414M4140D

The SFP28 port has two LEDs to indicate traffic activities and link speed. The LEDs are visible through the
cutout on the bracket as shown in

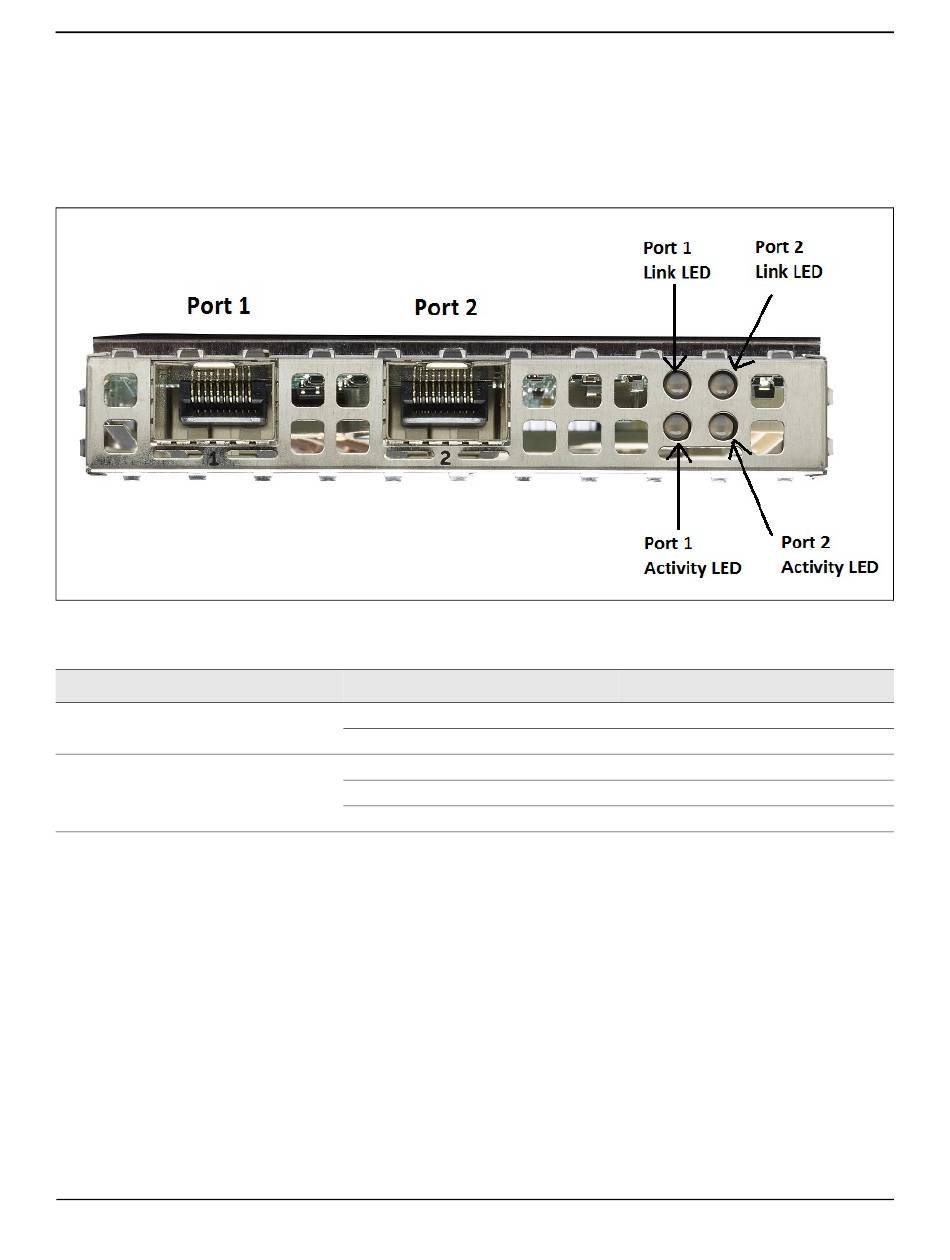

Figure 10: BCM957414M4140D Network Daughter Card (rNDC) Activity and Link LED Locations
Table 9: BCM957414M4140D Network Daughter Card (rNDC) Activity and Link LED Locations
LED Type
Activity
Link
February 26, 2018 • NetXtreme-E-UG100
Figure
10.
Color/Behavior
Off
Green blinking
Off
Green
Yellow
Network Link and Activity Indication
Notes
No Activity
Traffic Flowing Activity
No Link
Linked at 25 Gbps
Linked at 10 Gbps
Page 17
