NetXtreme-E User's Manual
BCM957412M4120D
This rNDC has SFP+ and RJ-45 ports, each with two LEDs to indicate traffic activities and link speed. The LEDs
are visible as shown in
Figure

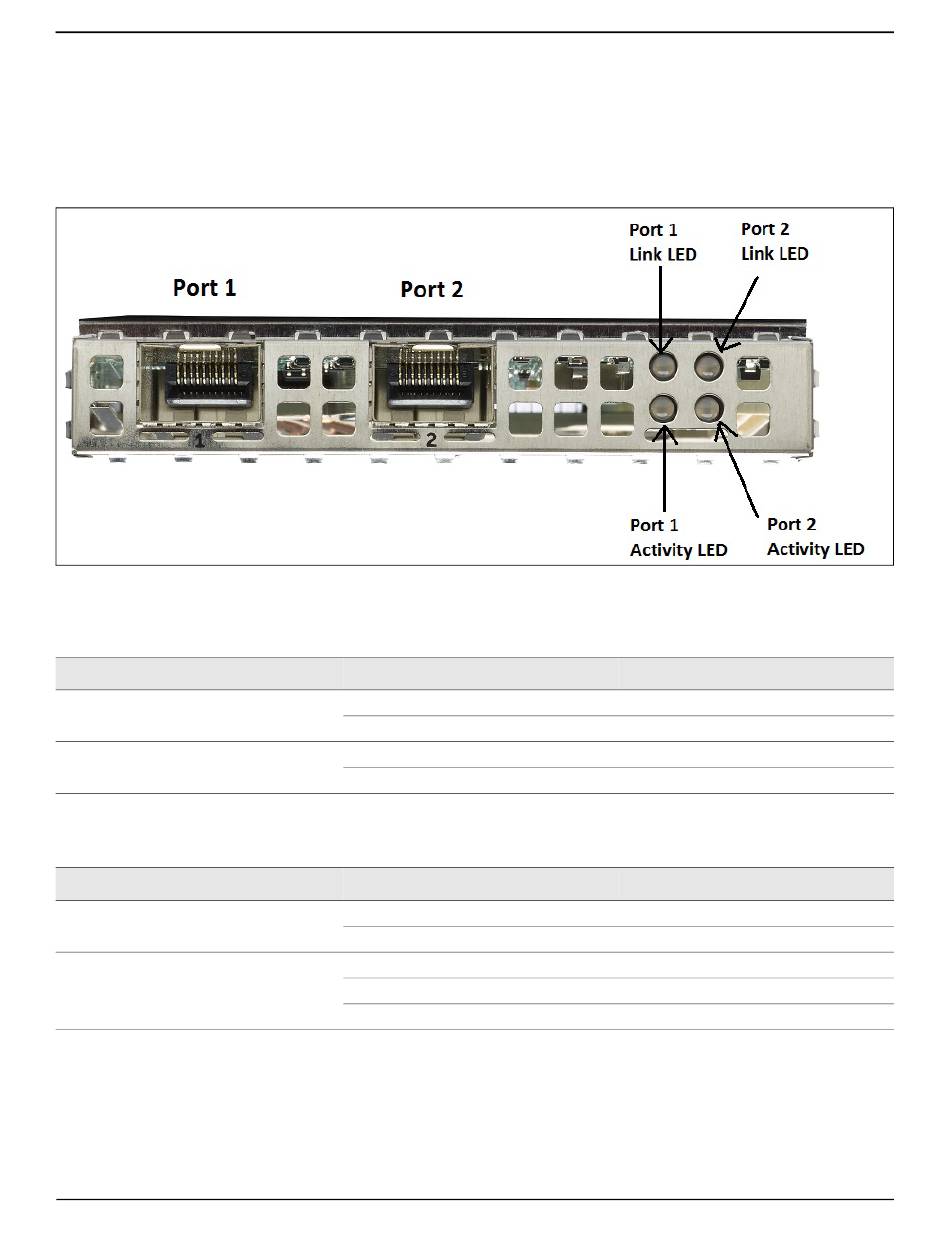

Figure 11: BCM957412M4120D Network Daughter Card (rNDC) Activity and Link LED Locations
Table 10: BCM957412M4120D Network Daughter Card (rNDC) Activity and
LED Type
Activity
Link
LED Type
Activity
Link
February 26, 2018 • NetXtreme-E-UG100
11.
Link LED Locations SFP+ Port 1 and 2
Color/Behavior
Off
Green blinking
Off
Green
Table 11: 1000BaseT Port 3 and 4
Color/Behavior
Off
Green blinking
Off
Green
Amber
Network Link and Activity Indication
Notes
No Activity
Traffic Flowing Activity
No Link
Linked at 10 Gbps
Notes
No Activity
Traffic Flowing Activity
No Link
Linked at 1 Gbps
Linked at 10/100 Mbps
Page 18
