RightAngle 310CPU Instruction

K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 3/28/12
A
1
7
6
STEPS 1-4
NON-SKID PAD
FACES UP
INSTRUCTION # 52611
TOOLS REQUIRED FOR ASSEMBLY:
CORDLESS DRILL
7/32" HEX HEAD DRIVER BIT OR
ALLEN WRENCH
TAPE MEASURE
READ ALL THE INSTRUCTIONS
BEFORE BEGINNING
COLUMN COVER
4
OUTER COLUMN;
REST OF WORKSTATION
NOT SHOWN FOR CLARITY
2
HARDWARE PACK # 51907

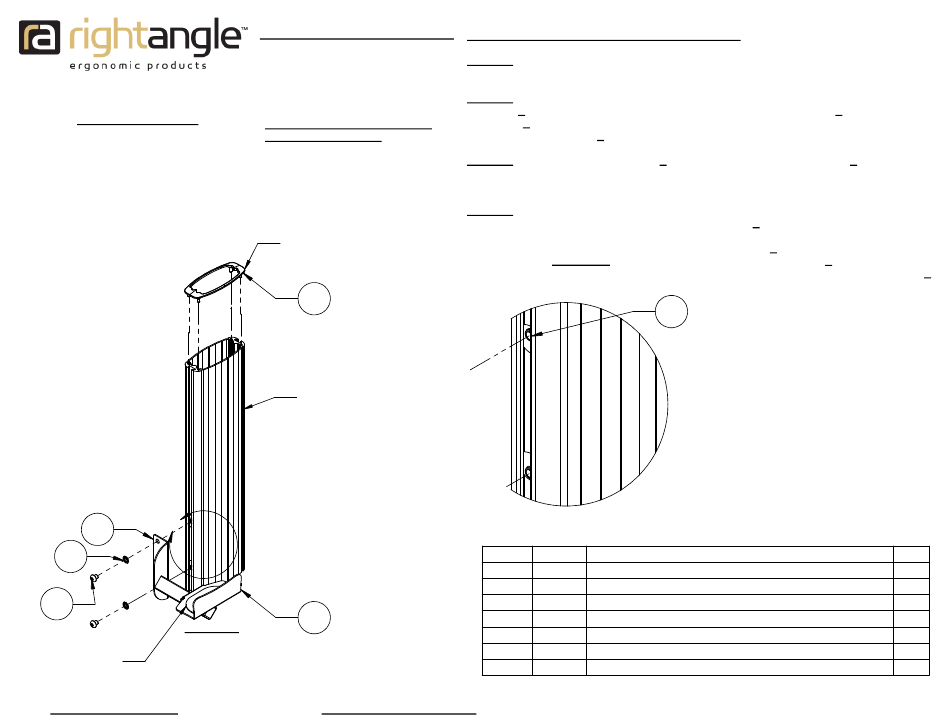

310CPU HOLDER INSTALLATION INSTRUCTIONS:
STEP 1: MEASURE THE HEIGHT OF YOUR CPU AND DETERMINE THE HEIGHT
AT WHICH YOU WANT THE BOTTOM OF YOUR CPU.
STEP 2: RAISE THE WORKSTATION TO ITS HIGHEST POSITION. RAISE THE COLUMN
COVER 4 AS HIGH AS IT WILL GO. PLACE (2) STAR WASHERS 7 ON (2) SOCKET
SCREWS 6 . INSERT THESE THROUGH THE HOLES IN THE BRACKET OF THE CPU
HOLDER ASSEMBLY B 1 .
STEP 3: THREAD (2) WELD NUTS
BACK. THE PROJECTIONS ON THE WELD NUTS MUST FACE THE BACK OF
ASSEMBLY B. SEE DETAIL A.
STEP 4: SLIDE THE ASSEMBLY YOU JUST MADE INTO THE SLOT IN THE COLUMN
FROM THE TOP DOWN. ORIENT THE WELD NUTS 5 AS SHOWN IN DETAIL A
WITH THE WIDE SIDES FACING EACH OTHER. THIS WILL MAKE THE WELD NUTS
LESS VISIBLE. THE NON-SKID PAD ON THE SUPPORT 2
AS SHOWN IN STEPS 1-4. SET THE CPU HOLDER ASSEMBLY B 1
YOU WANT THE BOTTOM OF YOUR CPU. FULLY TIGHTEN THE SOCKETSCREWS
DETAIL A
ITEM # PART #
1 800166 310CPU HOLDER ASSY B
2 800224 310CPU HOLDER SUPPORT BRACKET
3 800165 310CPU HOLDER ASSY A
4 800410 NewHeights COLUMN COVER (EXISTING)
5 52389 3/8-16 x 1/2 OFFSET WELD NUT
6 52470 3/8-16 x 3/8 BUTTON HEAD SOCKET SCREW 4
7 52477 3/8 INTERIOR TOOTH STAR WASHER
5 ONTO THE SOCKET SCREWS 6
SHOULD BE FACING UP
AT THE HEIGHT
5
PROJECTIONS FACE OUT
DESCRIPTION
FROM THE
6 .
QTY.
1
2
1
1
4
4
PAGE 1 OF 2
