RightAngle R-STYLE 36USL Assembly Instructions

K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 8/21/12
(PRE-INSTALLED)
2
HARDWARE
5
(3) 36" & 48" (4) 60"
BACK
3
(4)
LEFT END
STEPS 1 & 2
INSTRUCTION # 50641
TOOLS REQUIRED FOR ASSEMBLY:
CORDLESS DRILL
#2 PHILLLIPS HEAD DRIVER BIT
PHILLIPS SCREWDRIVER
READ ALL THE INSTRUCTIONS
BEFORE BEGINNING
PHILLIPS
SCREWDRIVEER
1
CAM OPERATION
TIGHTEN CLOCKWISE
LOOSEN COUNTER-
CLOCKWISE
4
(4)
RIGHT END

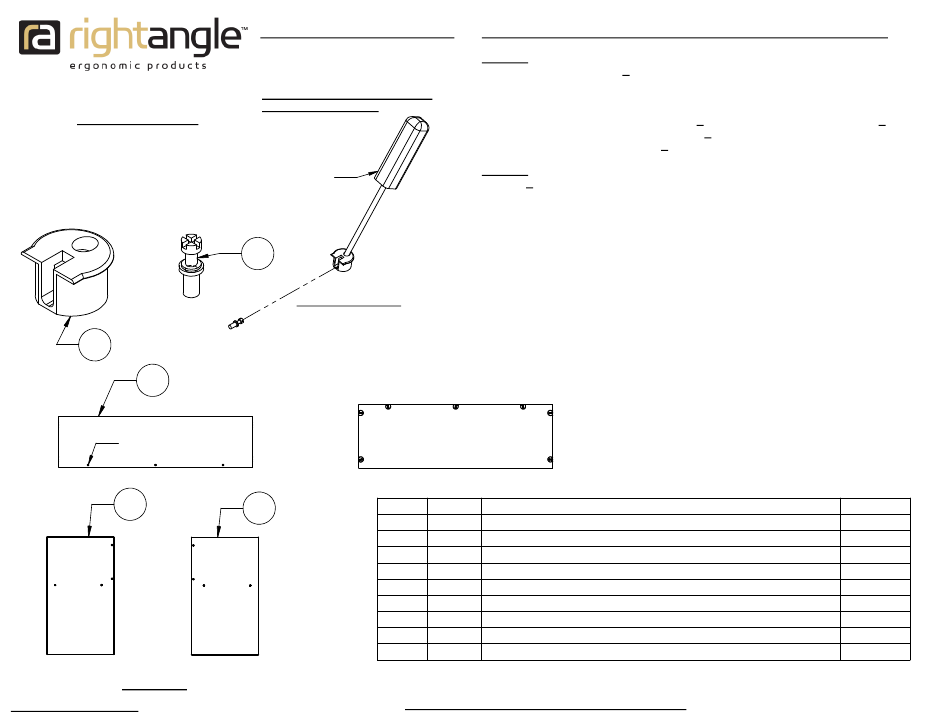

R-STYLE 36USL, 48USL, & 60USL UPPER SHELF ASSEMBLY INSTRUCTIONS:
STEP 1: USING A CORDLESS DRILL AND PHILLIPS DRIVER BIT, SCREW (11)
OR (12) SLIM FIX BOLTS
SHOWN BELOW LEFT: DO NOT OVER-TIGHTEN THE BOLTS. USE A LOW
TORQUE SETTING ON THE DRILL.
(4) EACH INTO THE LEFT END PANEL
(3) INTO THE 36" OR 48" BACK PANEL
(4) INTO THE 60" BACK PANEL
STEP 2: USING A PHILLIPS SCREWDRIVER, MAKE SURE THAT ALL OF THE
CAMS 2 ARE IN THE OPEN POSITION (FULLY COUNTER-CLOCKWISE).
NOTE: COMPONENTS SHOWN ARE FOR A 36" UPPER SHELF.
ASSEMBLY INSTRUCTIONS ARE THE SAME FOR A 48" OR 60" SHELF.
SHELF
ITEM # PART #
1 51687 5mm SLIM FIX BOLT
2 52064 11mm ZINC CAM
3 10152 BOOKSHELF LEFT END ASSY
4 10153 BOOKSHELF RIGHT END ASSY
5 VARIES BOOKSHELF BACK 36", 48", OR 60"
6 VARIES BOOKSHELF SHELF 36", 48", OR 60"
7 800150 BOOKSHELF TABLE ANGLE BRACKET
8 50133 10-32 x 1/2 PHILLIPS TRUSS HEAD MACHINE SCREW 2 OR 4
9 51708 M5 x 18mm SQ/PH/WSHR HEAD WOOD SCREW
HARDWARE PACK # 51914 BLACK, 51982 SILVER
1 INTO THE PRE-DRILLED HOLES IN THE PANELS
3 AND THE RIGHT END PANEL
5
5
DESCRIPTION
4
QTY.
11 OR 12
11 OR 12
1
1
1
1
1 OR 2
2 OR 4
PAGE 1 OF 2
