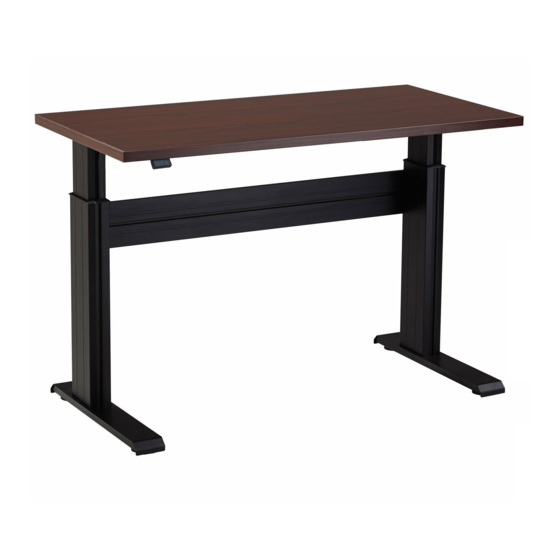

NewHeights Series 4 LT
Eficiente 2-Leg Workstation
Assembly/Operation Instructions
Failure to comply with or observe all assembly, safety, and operation
instructions and warnings regarding the use of this product may result
in serious property damage or bodily injury.
Make sure no obstacles are in the desk's path and all cords are of appropriate
length for the desk. Always maintain a 1" clearance around the table to prevent
pinching.
Never assemble (or disassemble) the table or components with the table plugged
into a power outlet. This product is for use on a nominal 120-volt circuit and has
a grounding plug. Make sure that the product is connected to an outlet having the
same configuration as the plug. No adapter should be used with this product.
Instruction # 53026
Read all the instructions before beginning.
Hardware Pack # 53023
K&A Manufacturing
6703 Zinser Street
Schofield, WI 54476
Phone: 800.298.4351
Fax: 866.882.9475
www.raproducts.com
8/5/16
Page 1 OF 9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RightAngle Eficiente LT
Summary of Contents for RightAngle Eficiente LT
- Page 1 K&A Manufacturing NewHeights Series 4 LT 6703 Zinser Street Schofield, WI 54476 Eficiente 2-Leg Workstation Phone: 800.298.4351 Fax: 866.882.9475 www.raproducts.com Assembly/Operation Instructions 8/5/16 Failure to comply with or observe all assembly, safety, and operation instructions and warnings regarding the use of this product may result in serious property damage or bodily injury.
-
Page 2: Worksurface Support
K&A Manufacturing 6703 Zinser Street Schofield, WI 54476 Phone: 800.298.4351 Fax: 866.882.9475 www.raproducts.com The drawing below shows how to distinguish the left leg A from the right leg B. The left leg A has a sticker on the worksurface support indicating the motor gets installed on this leg. - Page 3 We will replace any defective part after inspection by an authorized agent. Costs incurred due to product replacement such as installation labor or transportation are not covered under this warranty. When corresponding with RightAngle™ products, record and provide the model and serial numbers located on the control box.
- Page 4 Step 1: Lay the worksurface 1 on a protected surface with the pilot holes facing up. There are metal inserts installed in the worksurface. These K&A Manufacturing 6703 Zinser Street Schofield, WI 54476 will not be used for this workstation. Place the left Phone: 800.298.4351 leg assembly 2 (Leg A) on the worksurface.
-
Page 5: Step 6 Bottom View
Step 4: Place the right leg assembly 4 (Leg B) on the worksurface 1 . Insert the end of the hex rod 3 into the hex drive on the right leg assembly. K&A Manufacturing You may need to turn the hex rod clockwise 6703 Zinser Street Schofield, WI 54476 slightly with an adjustable wrench to align the hex Phone: 800.298.4351... - Page 6 Step 7: With the help of an assistant align the cross support 8 with the stickers on both leg assemblies. See below. Insert (4) socket screws 10 through the holes in the ends of the cross support 8 and thread them into the weld nuts that are held in place by the stickers.
- Page 7 Step 9: Fully tighten the (16) wood screws 12 attaching the leg assemblies 2 (Leg A) and 4 (Leg B) K&A Manufacturing to the worksurface 1 . Do not over-tighten the screws. 6703 Zinser Street Schofield, WI 54476 Phone: 800.298.4351 Use a low torque setting on the power driver.
- Page 8 The workstation is now ready for use. Troubleshooting: If you are having any problems with the table operation, contact RightAngle™ service at 800-298-4351 or orders@raproducts.com. Note: If the leg assemblies are at uneven heights. it is usually caused by an improperly installed hex rod.
- Page 9 Step 12: Raise the leg assemblies high enough to fully tighten the motor screws 6 . Fully tighten the screws and K&A Manufacturing return the leg assemblies to their lowest position. With 6703 Zinser Street Schofield, WI 54476 the help of an assistant, set the workstation upright in its Phone: 800.298.4351 Fax: 866.882.9475 final position.
