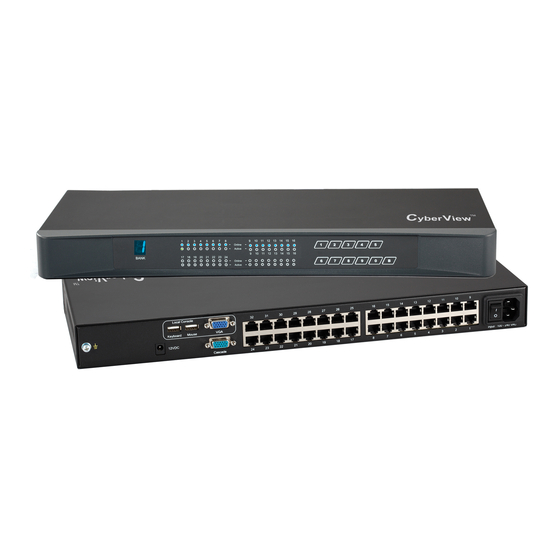

  • Page 1 KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer -UIP802 -UIP1602 Cat6 -UIP3202 back -U802 -U1602 Cat6 2-console KVM -U3202 back -U801 -U1601 Cat6 KVM -U3201 back Designed and manufactured by Austin Hughes UM-CV-751-UKVM-KIT-Q221V1 www.austin-hughes.com...
  • Page 2 Intentionally Left Blank UM-CV-751-UKVM-KIT-Q221V1 www.austin-hughes.com...
  • Page 3 Legal Information First English printing, June 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > Cat6 IP KVM -UIP802 -UIP1602 -UIP3202 Package Content KVM port & Cat6 dongle connection IP & Remote console connection IP Console Setting Important Preconfiguration for IP console P.5 - 7 KVM Cascade Specifications < Part. 2 >...
  • Page 5 < Part 1 > Cat6 Cat6 IP KVM < 1.1 > Package Contents -UIP802 -UIP1602 -UIP3202 KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model.

  • Page 6: Kvm Port & Cat6 Dongle Connection

    < 1.2 > KVM port & Cat6 dongle connection Cat6 IP KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-100H HDMI...
  • Page 7 < 1.3 > IP console connection Cat6 IP KVM Drawer KVM Rear Kit IP Console Frequency Resolution Support ( Hz ) 1600 x 1200 1280 x 1024 1024 x 768 60 / 70 / 75 UM-CV-751-UKVM-KIT-Q221V1 www.austin-hughes.com...

  • Page 8: Ip Console Setting

    After the cable connection, please take the following steps to configure the IP KVM : 1. Download IPKVMsetup.exe from the link: www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to configure the IP KVM by device setup as below. 3. Click Refresh Device to search the connected IP KVM 4.

  • Page 9: Important Preconfiguration For Ip Console

    < 1.5 > Important Preconfiguration for IP console Cat6 IP KVM You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz.
  • Page 10 < 1.5 > Important Preconfiguration for IP console Cat6 IP KVM ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
  • Page 11 Cat6 IP KVM 6) Click < Update > After the firmware has been updated, IP KVM will reset automatically. After one minute, you will be redirected to the Login page and requested to login again. - Completed UM-CV-751-UKVM-KIT-Q221V1 www.austin-hughes.com...

  • Page 12: Kvm Cascade

    < 1.6 > KVM Cascade Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 13: Specifications

    < 1.7 > Specifications Cat6 IP KVM -UIP802 -UIP1602 -UIP3202 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable...

  • Page 14: Cat6 2-Console Kvm

    < Part 2 > Cat6 2-console KVM < 2.1 > Package Contents Cat6 2-console KVM -U802 / -U1602 / -U3202 • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 •...

  • Page 15: Kvm Port & Cat6 Dongle Connection

    < 2.2 > KVM port & Cat6 dongle connection Cat6 2-console KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-100H HDMI...

  • Page 16: Remote Console Connection

    < 2.3 > Remote console connection Cat6 2-console KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200...
  • Page 17 How to use a receiver to connect a remote console Cat6 2-console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.23 Remote Drawer KVM Rear Kit Console Local computer...

  • Page 18: Kvm Cascade

    < 2.4 > KVM Cascade Cat6 2-console KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 19: Specifications

    < 2.5 > Specifications Cat6 2-console KVM -U802 -U1602 -U3202 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console : Nil for LCD console drawer version ▀...

  • Page 20: Cat6 Kvm

    < Part 3 > Cat6 KVM < 3.1 > Package Contents Cat6 KVM -U801 -U1601 -U3201 KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -U801 Cascade Power...

  • Page 21: Kvm Port & Cat6 Dongle Connection

    < 3.2 > KVM port & Cat6 dongle connection Cat6 KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-100H HDMI...

  • Page 22: Kvm Cascade

    < 3.3 > KVM Cascade Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 23: Specifications

    < 3.4 > Specifications Cat6 KVM -U801 -U1601 -U3201 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console : Nil for LCD console drawer version ▀...

  • Page 24: Usage

    < Part 4 > Usage Cat6 KVM Usage < 4.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications 8 ports Bank no.

  • Page 25: Password

    < 4.2 > Password Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 26: Kvm Osd

    < 4.3 > KVM OSD Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port...

  • Page 27: Kvm Hotkey & Remote Console Hotkey

    < 4.4 > KVM Hotkey & Remote Console Hotkey Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
  • Page 28 < 4.5 > Options : DC Power Cat6 KVM Usage Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA...
