User Manual

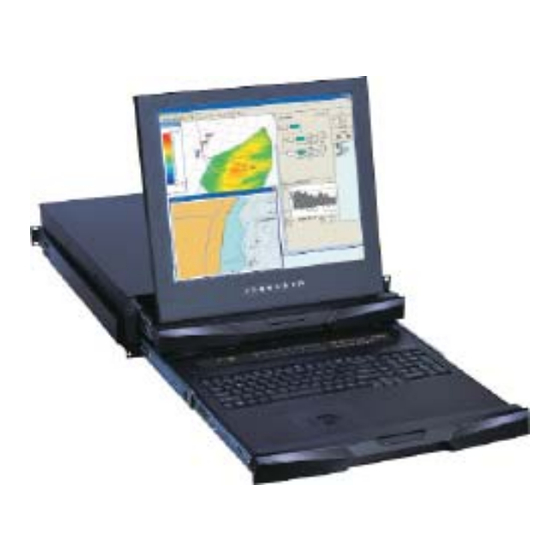

2U Dual Slides LCD Keyboard Drawer
15", 17", 19" screen size
Models
RKP-217 / 219 Series
- With KVM Options
- 2U 17", 19" screen size
Models
S-217 / 219 Series
- With KVM Options
- 2U 17", 19" screen size
- Designed for SUN Solaris
Models
RKP-2415 / 2417 / 2419 Series
- Short depth version
Advertisement
Table of Contents
Related Manuals for CyberView RKP-217 Series
Summary of Contents for CyberView RKP-217 Series
- Page 1 User Manual 2U Dual Slides LCD Keyboard Drawer 15", 17", 19" screen size Models RKP-217 / 219 Series - With KVM Options - 2U 17”, 19” screen size Models S-217 / 219 Series - With KVM Options - 2U 17", 19" screen size - Designed for SUN Solaris Models RKP-2415 / 2417 / 2419 Series...
-
Page 2: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice..............2 Package Contents...............3 Before Installation...............4 Unpacking................4 Optional Accessories............4 Peripheral Products.............5 Structure Diagram...............5 How to Install “One Man” Installation Slides....6-7 1.10 How to Use The Slides............8 1.11 How to Use The Dual Slide..........9 1.12 “S”... - Page 3 Contents Chapter 4 Optional Specifi cation KVM Options..............19 DVI-D Input Option............19 BNC + S-Video Option............19 Audio Option..............20 DC power Options............21 Touchscreen Options............21 Chapter 5 Troubleshooting ............22 Chapter 6 Dimensions ..............23...
-
Page 4: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 5: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice. -
Page 6: Package Contents
Chapter 1 1.3 Package Contents LCD keyboard drawer x 1 pc CB-6 USB 2-in-1 KVM cable x 1 pc (for “S” series) CE-6 Combo 4-in-1 KVM cable x 1 pc (for RKP series) User manual x 1 pc Power cord x 1 pc Auto switch power adapter ( for external power version) x 1 pc Mounting bracket x 2 pcs M6*15mm screw x 8 pcs... -
Page 7: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 8: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM MU-IP1613 / MU-IP1614 / MU-IP1624 Matrix IP Cat6 16 port KVM Matrix Cat6 KVM MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM MU-IP3213 / MU-IP3214 / MU-IP3224 Matrix IP Cat6 32 port KVM M-802 / M-803 / M-804... -
Page 9: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install "One Man" Installation Slides Install into rack Rear side Right bracket ■ Attach the left and right mounting bracket to rack 19” mounting rails. ■ Adjust the rear mouting bracket to fi t your rack. ■... - Page 10 Chapter 1 1.9 How to Install "One Man" Installation Slides ■ Attach front left and right mounting ears of the LCD keyboard drawer to vertical mounting rails. ■ M6 screw and cup washer x 2 pcs included. Complete the installation ■...
-
Page 11: How To Use The Slides
Chapter 1 1.10 How to Use the Slides For keyboard drawer only ■ A black arrow release button is located on the outside of each slide in the keyboard drawer. (shown in Figure 1). Figure 1. ■ Pull and hold the black arrow button on either side of the LCD keyboard drawer to unlock. -
Page 12: How To Use The Dual Slide
Chapter 1 1.11 How to Use The Dual slide ■ Gently pull the handle toward the front of the lower keyboard drawer (shown in Figure 4). Figure 4. Pulling the handle toward the front of keyboard drawer. ■ Push the handle toward the front of the upper LCD drawer (shown in Figure 5). -
Page 13: S" Series (Single Console)
Chapter 1 1.12 “S” Series (Single console) - Use CB-6 to connect to server via USB interface Figure 8. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.13 “S” Series (Single console) - Use CB-6 to connect to KVM via USB interface CB-6 KVM Cable Figure 9. -
Page 14: Rkp Series (Single Console)
Chapter 1 1.14 RKP Series (Single console) - Use CE-6 to connect to server via PS/2 interface Figure 10. Example of connecting CE-6 4-in-1 Combo KVM cable to server via PS/2 interface 1.15 RKP Series (Single console) - Use CE-6 to connect to KVM via PS/2 interface CE-6 KVM Cable Figure 11 Example of connecting CE-6 4-in-1 Combo KVM cable to KVM via PS/2 interface Remarks... -
Page 15: Rkp Series (Single Console)
Chapter 1 1.16 RKP Series (Single console) - Use CE-6 to connect to server via USB interface Figure 12. Example of connecting CE-6 4-in-1 Combo KVM cable to server via USB interface 1.17 RKP Series (Single console) - Use CE-6 to connect to KVM via USB interface CE-6 KVM Cable Figure 13. -
Page 16: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation 15" LCD membrane 17" & 19" LCD membrane Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 17: On-Screen Menu
Chapter 2 2.2 On-screen Menu OSD Confi guration Page Image: To enter into the brighness, contrast, color temp, red, green, and blue Geometry: To enter into the auto adjust, H position, V position, phase and clock Video: To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute... -
Page 18: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description Form Factor 1U rack mounting on slide-out rails LCD Manufacturer Series “S” Diagonal Size 15" TFT 17" TFT 19" TFT 17" TFT 19" TFT 1152 x 900 (Direct) 1152 x 900 (Direct) Max. Resolution 1024 x 768 1280 x 1024 1280 x 1024... - Page 19 Chapter 3 3.2 Keyboard & Mouse For RKP-217 / 219 / 2415 / 2417 / 2419 series Supporting layouts N keyboard integrated with N keyboard integrated with touchpad trackball P.16...
-
Page 20: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For S-217 / 219 series Supporting layouts NS keyboard integrated with touchpad ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■... -
Page 21: How To Use "Ns" Keyboard
Chapter 3 3.3 How to Use "NS" keyboard ■ NS SUN-compatible keyboard incorporates SUN short-cut keys. ■ Press the Fn/Num button to switch the color the Num LED. Num LED in Off mode Num LED in Green color Key pad behaves as a SUN Solaris system Key pad behaves as a normal key pad mode administration command mode Three Audio / Display keys are located in the upper-right corner of the NS keyboard:... -
Page 22: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to KVM user manual ■ Option with Multiple consoles Matrix KVM ■... -
Page 23: Audio Option
Chapter 4 4.4 Audio Option Speaker 3-in-1 VGA KB mouse Power Audio console port Internal power version External power version Remarks ■ Audio input is 35mm audio plug ■ The speaker is sharing the same power with LCD. P.20... -
Page 24: Dc Power Options
Chapter 4 4.5 DC Power Options Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating... -
Page 25: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. Is interference signal appeared on LCD normal when shutting down the computer ? In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered normal. -
Page 26: Chapter 6 Dimensions
Weight Weight 442 x 600 x 88 mm 581 x 753 x 216 mm 18 kg 24 kg RKP-217 series 17.4 x 23.6 x 3.5" 22.9 x 29.6 x 8.5" 40 lb 53 lb 442 x 600 x 88 mm... - Page 27 Blank page...
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2010 Austin Hughes Electronics Ltd. All rights reserved. CV-RKP2-1010V8...
