Summary of Contents for CyberView F117

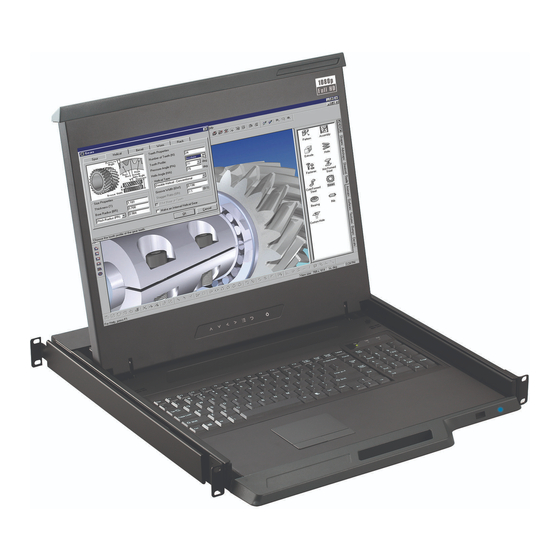

- Page 1 KVM switch and rackmount screen technology User Manual 1U 17″ FHD LCD Console Drawer F117 F1417 1920 x 1080 native resolution 1920 x 1080 native resolution Ultra short depth 400mm / 15.7″ Designed and manufactured by Austin Hughes UM-CV-751-F117-Q218V1...
-
Page 2: Legal Information
■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-F117-Q218V1 www.austin-hughes.com... -
Page 3: Table Of Contents
P.18 3G / HD / SD-SDI Broadcast-grade input P.20 - 21 HDMI 1.3 video input Audio input & output ( F117 only ) P.22 - 23 F17″ Touchscreen : Resistive 1-point touch P.24 DC Power : 12V / 24V / 48V / 125V P.25... -
Page 4: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-F117-Q218V1 www.austin-hughes.com... -
Page 5: Package Content
< Part 1 > < 1.1 > Package Content F117 F1417 - CX-6 6ft DVI-D console cable X 1 - CX-6 6ft DVI-D console cable X 1 ( Alternative : CB-6 6ft VGA console cable ) ( Alternative : CB-6 6ft VGA console cable ) - Power cord X 1 - 2.5A Power adapter &... - Page 6 < 1.2 > Dimension - F117 Front View Rear View Power DVI-D UNIT : mm Side View 1mm = 0.03937 inch Top View F117 Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H)
- Page 7 F1417 17.4 x 15.7 x 1.73" 23.2 x 24.5 x 5.5" 18.9 lb 29.9 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, HDMI & DC power. UM-CV-751-F117-Q218V1 www.austin-hughes.com...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-F117-Q218V1 www.austin-hughes.com... - Page 9 < 1.3 > Installation - How to use the F117 drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 10 < 1.3 > Installation - How to use the F1417 drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 11 Intentionally Left Blank UM-CV-751-F117-Q218V1 www.austin-hughes.com...
-
Page 12: Connection
Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-F117-Q218V1 www.austin-hughes.com... - Page 13 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-F117-Q218V1 www.austin-hughes.com...
-
Page 14: Product Specifi Cations
< 2.1 > Product Specifi cations F117 / F1417 Panel Native Resolution 1920 x 1080 Panel Size ( diagonal ) 17.3" Brightness ( cd/m² ) Contrast Ratio ( typ. ) 600:1 Colors 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) - Page 15 1280 x 720 x 50 / 60Hz ( 720p ) 720 x 480 x 50 / 60Hz ( 576p / 480p ) Audio Signal 2ch Linear PCM F117 F1417 Physical Specifi cation Product ( W x D x H ) 441.6 x 460 x 44 mm...
-
Page 16: Keyboard / Mouse Specifi Cations
> 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States United Kingdom Germany France Spain Norway EMEA Italy Russia Switzerland Netherlands Portugal Asia China Japan Korea Arabia Turkey P.12 UM-CV-751-F117-Q218V1 www.austin-hughes.com... - Page 17 How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts. Dashboard Increase volume Eject disc Rewind Command Play / Pause P.13 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 18 Audio / Display Keys * Please ask your supplier for full details Audio : Mute Audio : Decrease volume Display : Degauss Display : Decrease contrast Audio : Increase volume Display : Increase contrast P.14 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 19 Intentionally Left Blank P.15 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
-
Page 20: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) F117 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 21 Adjust picture in picture setting PIP position : Enter into PIP position PIP source : Enter into the Sub source and sound source System reset : Return the adjustment back to factory setting Information : Select for Help P.17 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 22 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 23 Intentionally Left Blank P.19 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 24 < 3.2 > F117 Options : - HDMI 1.3 ( HDCP 1.3 - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen.
- Page 25 ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi x the issue. HDMI Power DVI-D P.21 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 26 USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc ■ For detailed information, please refer to the attached CD disc ■ As the touchscreen unit is not made of toughened glass, please handle it carefully USB Touchscreen F117 DVI-D Power USB Touchscreen F1417 Power DVI-D P.22...
- Page 27 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the fi rst setup P.23 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 28 ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) F117 casing depth will be extended from 460mm ( 18.1” ) to 530mm ( 20.9” ) ( 4 ) F1417 casing depth will be extended from 400mm ( 15.7” ) to 490mm ( 19.3” ) P.24...
- Page 29 6#32*4.5 mm screw x 8. necessary ■ fl at head screw Installation completed 6#32*4.5mm x 2 This step is necessary for front. Failure to complete this will cause damage. fl at head screw 6#32*4.5mm x 2 P.25 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 30 < Part 4 > < 4.1 > F117 KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Matrix Remote 8-port 16-port 32-port Cat6 KVM F117 - MUIP1613 F117 - MUIP3213 F117 - MUIP1624 F117 - MUIP3224 F117 - MU1602 F117 - MU3202 F117 - MU1603 F117 - MU3203...
- Page 31 (W x D x H) 441.6 x 540 x 44 mm 590 x 622 x 140 mm 10.4 kg 16.3 kg F1417 with KVM 17.4 x 21.3 x 1.73" 23.2 x 24.5 x 5.5” 22.9 lb 35.9 lb P.27 UM-CV-751-F117-Q218V1 www.austin-hughes.com...
- Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2018 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-F117-Q218V1 www.austin-hughes.com...
