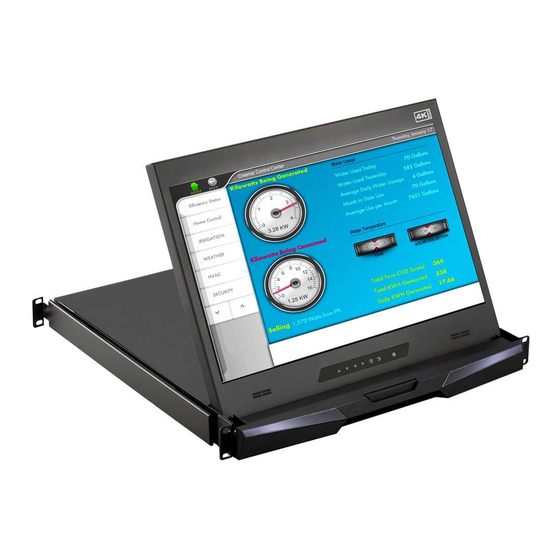

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RP-117 / RP-119 1U LCD Drawer Options : - AV / HDMI / Audio - Touchscreen / DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-117-Q215V2 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-117-Q215V2 www.austin-hughes.com...
- Page 3 Contents < Part. 1 > RP-117 / RP-119 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 <...
-
Page 4: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-117-Q215V2 www.austin-hughes.com... - Page 5 < Part 1 > < 1.1 > Package Content RP-117 / 119 RP-117 or RP-119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 6 Weight Weight 441.6 x 500 x 44 mm 588 x 758 x 120 mm 10.5 kg 16.5 kg RP-117 series 17.4 x 18.9 x 1.73" 23.1 x 29.8 x 4.7” 23 lb 36 lb 441.6 x 500 x 44 mm 588 x 758 x 120 mm 12.5 kg...
- Page 7 < 1.3 > Installation - How to install Installation Slides RP-117 / 119 Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■...
- Page 8 < Part 2 > < 2.1 > Product Specifi cations RP-117 RP-119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ.
- Page 9 RP-117 / 119 Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical RP-117 RP-119 Specifi cation Product ( W x D x H ) 441.6 x 500 x 44 mm...
- Page 10 fl ash continuously when there is no signal input. All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power UM-CV-751-RP-117-Q215V2 www.austin-hughes.com...
- Page 11 < 2.3 > On-screen Display Operation ( OSD ) RP-117 / 119 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
- Page 12 ( 1 ) Either HDMI or DVI-D can be selected. ( 2 ) For the above options, casing depth will be extended from 500mm ( 19.7" ) to 570mm ( 22.4" ) HDMI DVI-D Power Audio S-Video BNC in - in - out PC Video UM-CV-751-RP-117-Q215V2 www.austin-hughes.com...
- Page 13 < 3.2 > Options : Touchscreen & driver RP-117 / 119 17” / 19" USB Touchscreen Specifi cation 17’ 19” 17” 19” Model e-Resistive e-Capacitive 5-Wire Resistive Capacitive Technology Single Single Touch Point Stylus or Finger Finger Method ≤ 50g / Stylus=R0.8 ≤...
- Page 14 For DC power option : ( 1 ) Option excludes 1 x power cord and 1 x AC power adapter. ( 2 ) Casing depth will be extended from 500mm ( 19.7" ) to 570mm ( 22.4" ) P.10 UM-CV-751-RP-117-Q215V2 www.austin-hughes.com...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-117-Q215V2 www.austin-hughes.com...
