Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Contents Contents < Part 1 > Combo Cat6 2-console KVM < Part 1 > Combo Cat6 2-console KVM U-IP802 U-IP1602 U-IP3202 U-IP802 U-IP1602 U-IP3202 Package contents Package contents KVM port & Cat6 dongle connection KVM port & Cat6 dongle connection IP &...
Page 4
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

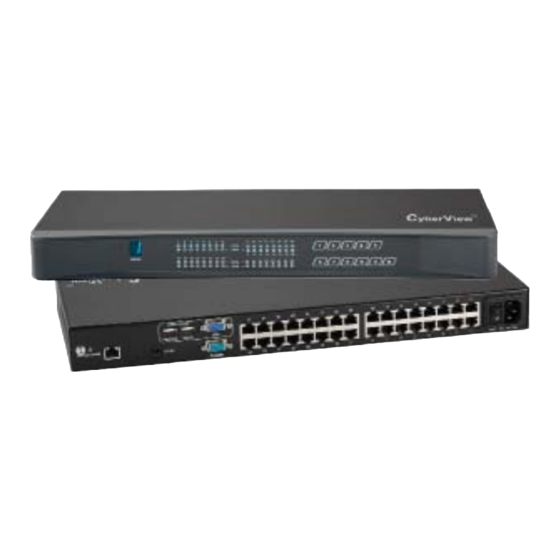

Part 1. Combo Cat6 < 1.1 > Package Contents Combo Cat6 IP KVM < 1.1 > Package Contents Combo Cat6 IP KVM U-IP802 / U-IP1602 / U-IP1602 KVM unit • UIP-802 or UIP-1602 or UIP-3202 KVM unit x 1 •...
Page 7
< 1.3 > IP & Local console connection Combo Cat6 IP KVM IP Console Frequency Resolution Support ( Hz ) 1600 x 1200 1280 x 1024 1024 x 768 60 / 70 / 75 UM-CV-751-UKVM-Q218V2...
Page 8
After the cable connection, please take the following steps to configure the IP KVM : 1. Download from the link: IPKVMsetup.exe www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click to configure the IP KVM by device setup as below. IPKVMsetup.exe 3. Click Refresh Device to search the connected IP KVM 4.
Page 9
< 1.5 > Important Preconfiguration for IP console Combo Cat6 IP KVM You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz.
Page 10
< 1.5 > Important Preconfiguration for IP console Combo Cat6 IP KVM ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
Page 11
Combo Cat6 IP KVM Combo Cat6 IP KVM 6) Click < Update > 6) Click < Update > After the firmware has been updated, IP KVM will reset automatically. After the firmware has been updated, IP KVM will reset automatically. After one minute, you will be redirected to the Login page and requested to login again.
< 1.6 > KVM Cascade Combo Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.
Page 16
< 2.3 > Remote & Local console connection Combo Cat6 2-console KVM Local console Remote Cat6 Console Remote USB console For remote console, max. cable length is Receiver subject to the resolution. Please refer to the tables below. CAT 5 / 6 cable Remote Console Frequency Max.
Page 17
How to use a receiver to connect a remote console Combo Cat6 2-console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.23 Remote Console Local computer...
< 2.4 > KVM Cascade Combo Cat6 2-console KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.
< 2.5 > Specifications Combo Cat6 2-console KVM U-802 U-1602 U-3202 ▀ KVM Port Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable ▀...
Page 20
Part 3. Combo Cat6 KVM Combo Cat6 KVM < 3.1 > Package Contents U-801 / U-1601 / U-3201 KVM unit • U-801 or U-1601 or U-3201 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord ( for KVM ) x 1 U-801 Local Console...
Page 22
< 3.3 > KVM Cascade Combo Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.
Page 23
< 3.4 > Specifications Combo Cat6 KVM U-801 U-1601 U-3201 ▀ KVM Port Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable ▀...
Part 4. Usage Combo Cat6 KVM Usage 4.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications 8 ports Bank no.
Page 25
4.2 Password bo Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...
Page 26
4.3 KVM OSD 4.3 KVM OSD Combo Cat6 KVM Usage OSD Menu OSD Menu OSD operation OSD operation next to the system name The PC is powered on next to the system name The PC is powered on next to the system name The PC is selected next to the system name The PC is selected...
Page 27
4.4 KVM Hotkey & Remote Console Hotkey Combo Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock +...
Page 28
4.5 Options : DC Power Combo Cat6 KVM Usage Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA...
