Summary of Contents for CyberView SP-117

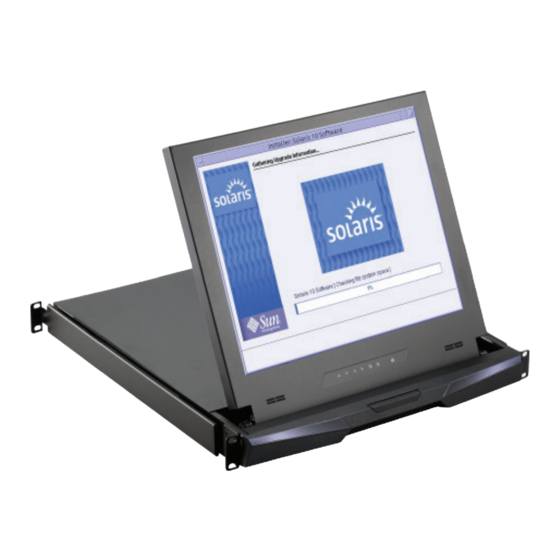

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD 1152 x 900 Native Resolution SP-117 / SP-119 1U SUN LCD Drawer Options : - DC power Designed and manufactured by Austin Hughes UM-CV-751-SP-117-Q322V1 www.austin-hughes.com...
- Page 2 Intentionally Left Blank UM-CV-751-SP-117-Q322V1 www.austin-hughes.com...
- Page 3 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-SP-117-Q322V1 www.austin-hughes.com...
-
Page 4: Table Of Contents
Contents < Part. 1 > SP-117 / SP-119 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options DC Power P.11 UM-CV-751-SP-117-Q322V1 www.austin-hughes.com... - Page 5 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-SP-117-Q322V1 www.austin-hughes.com...
-
Page 6: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content SP-117 or SP-119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). - Page 7 < 1.2 > Dimension SP-117 / 119 Front View Rear View DVI-D Power UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 500 x 44 mm...
-
Page 8: Installation
Basically, user can push in the drawer back to park position by releasing the left & right slide lock arrow (as long as the drawer starts moving, he/she can release their finger right away, holding the arrow is not necessary). Keep Your Fingers Away From The Slide Stop UM-CV-751-SP-117-Q322V1 www.austin-hughes.com... - Page 9 Intentionally Left Blank UM-CV-751-SP-117-Q322V1 www.austin-hughes.com...
-
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations SP-117 SP-119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD 1152 x 900 ( Direct ) 1152 x 900 ( Direct ) Display pixel ( dots x lines ) - Page 11 SP-117 / 119 Physical SP-117 SP-119 Specifi cation Product ( W x D x H ) 441.6 x 500 x 44 mm 441.6 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch 17.4 x 19.7 x 1.73 inch...
-
Page 12: On-Screen Display Operation ( Osd )
( a ) Press the button to call up the on-screen video mode on top right corner. ( b ) Use up/down arrow to the select the video input ( c ) Press the button to confi rm the selection UM-CV-751-SP-117-Q322V1 www.austin-hughes.com... - Page 13 Intentionally Left Blank UM-CV-751-SP-117-Q322V1 www.austin-hughes.com...
- Page 14 OSD time out : Adjust the screen timeout OSD transparency : Adjust the screen transparency OSD size : Adjust the screen size - Normal / Small OSD rotation : Rotate the screen - 90° / 180° / 270° UM-CV-751-SP-117-Q322V1 www.austin-hughes.com...
-
Page 15: Part. 3 > Options
< 2.2 > On-screen Display Operation ( OSD ) SP-117 / 119 Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE /... -
Page 16: Dc Power
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. P.11 UM-CV-751-SP-117-Q322V1 www.austin-hughes.com...
