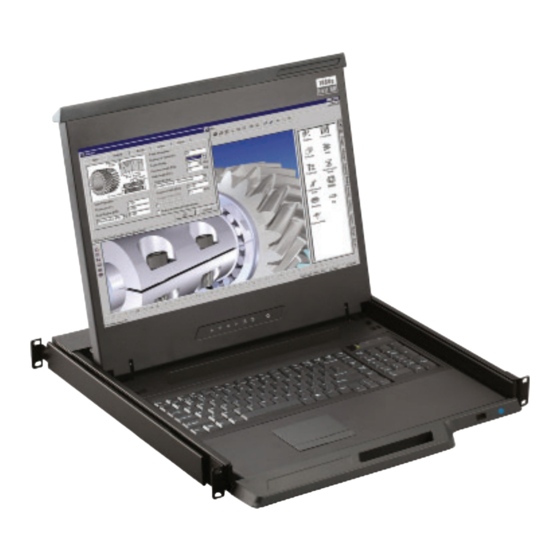

CyberView F1417 User Manual

1u 17" fhd lcd console drawer
Hide thumbs Also See for F1417:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
F117
1920 x 1080 native resolution
Designed and manufactured by Austin Hughes
UM-CV-751-F117-Q123V1
dedicated KVM switch and rackmount screen technology
1U 17" FHD LCD Console Drawer
F1417
1920 x 1080 native resolution
www.austin-hughes.com
Ultra short depth
400mm / 15.7"
751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1417 and is the answer not in the manual?

Questions and answers

Related Manuals for CyberView F1417

Summary of Contents for CyberView F1417

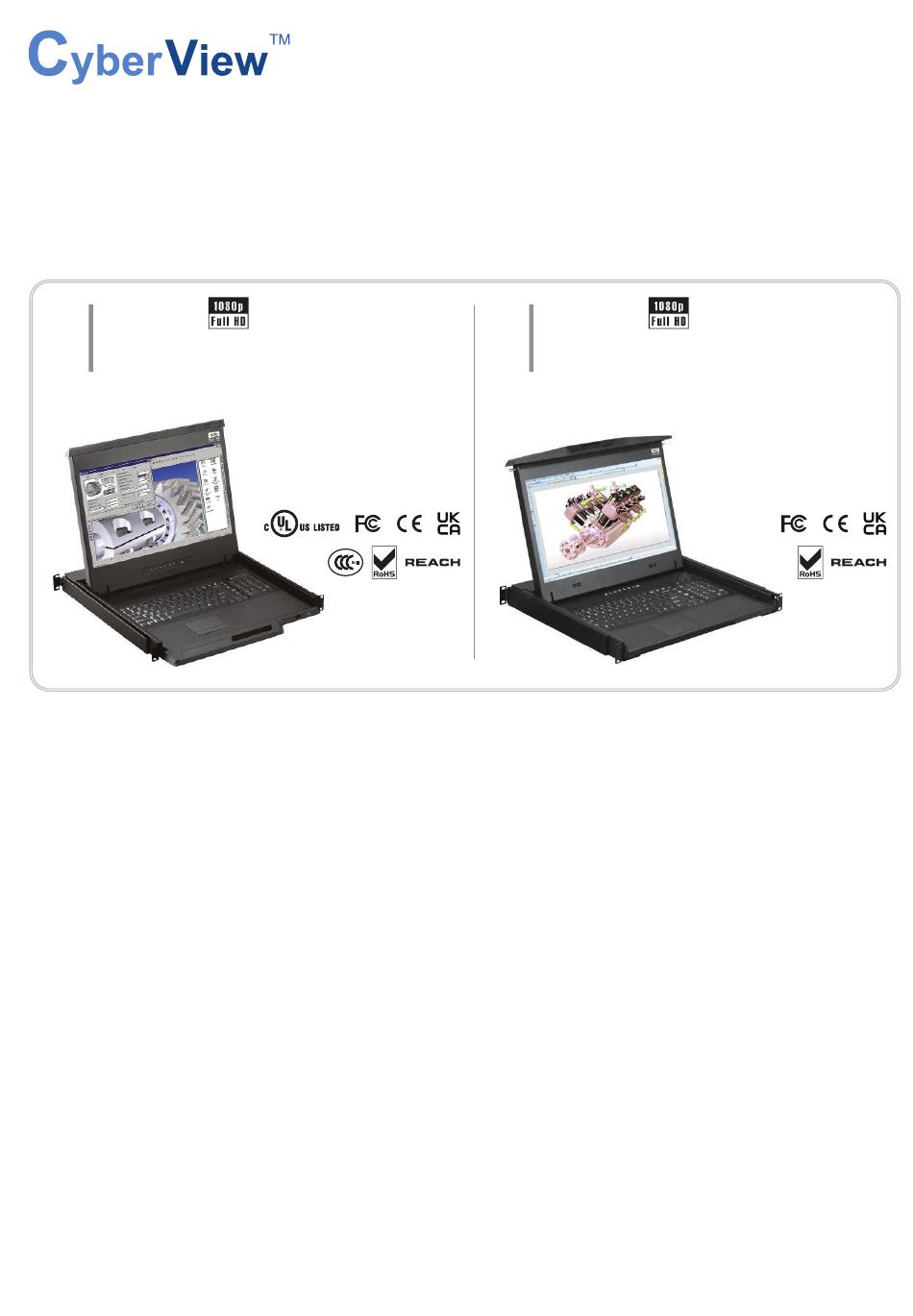

  • Page 1 KVM switch and rackmount screen technology User Manual 1U 17″ FHD LCD Console Drawer F117 F1417 1920 x 1080 native resolution 1920 x 1080 native resolution Ultra short depth 400mm / 15.7″ Designed and manufactured by Austin Hughes UM-CV-751-F117-Q123V1...
  • Page 2 Legal Information First English printing, March 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > F117 / F1417 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations P.11 On-screen Display Operation ( OSD ) P.13 <...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: F117 / F1417

    < Part 1 > F117 / F1417 < 1.1 > Package Content F117 F1417 - CX-6A 6ft DVI-D console cable X 1 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - 2.5A Power adapter &...
  • Page 6 < 1.2 > Dimension - F117 Front View Rear View DVI-D AC Input 100~240V Power UNIT : mm Side View 1mm = 0.03937 inch Top View F117 Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 460 x 44 mm...
  • Page 7 < 1.2 > Dimension - F1417 Front View Rear View DVI-D +12 VDC Power VGA UNIT : mm Side View 1mm = 0.03937 inch Top View F1417 Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H)

  • Page 8: Installation

    < 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...
  • Page 9 < 1.3 > Installation - How to use the F117 drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. After use the drawer Basically, user can push in the drawer back to park position by releasing the left &...
  • Page 10 < 1.3 > Installation - How to use the F1417 drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. After use the drawer Basically, user can push in the drawer back to park position by releasing the left &...

  • Page 11: Connection

    LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable USB server DVI-D * F1417 in external power < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D...
  • Page 12 CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server * F1417 in external power < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA...

  • Page 13: Specifi Cations / Osd

    < Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations F117 / F1417 Panel Native Resolution 1920 x 1080 Panel Size ( diagonal ) 17.3" Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 16.7 M, 8-bit...
  • Page 14 Physical F117 F1417 Specifi cation Product ( W x D x H ) 441.6 x 460 x 44 mm 441.6 x 400 x 44 mm 17.4 x 18.1 x 1.73 inch 17.4 x 15.7 x 1.73 inch Packing ( W x D x H )

  • Page 15: Keyboard / Mouse Specifi Cations

    < 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States...
  • Page 16 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...

  • Page 17: On-Screen Display Operation ( Osd )

    < 2.3 > On-screen Display Operation ( OSD ) F117 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
  • Page 18 < 2.3 > On-screen Display Operation ( OSD ) F1417 Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control...
  • Page 19 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position...
  • Page 20 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 21 < 3.2 > Options : DP Option - Display Port ( DP 1.0, HDCP 1.3 ) F117 AC Input 100~240V F1417 +12 VDC HDMI Option - HDMI HDMI ( HDMI 1.4, HDCP 1.4 ) F117 AC Input 100~240V HDMI F1417...
  • Page 22 < 3.3 > Options : Touchscreen & driver Capacitive Touch screen Specifi cation F117 F1417 Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed <...
  • Page 23 100~240V USB Touchscreen +12 VDC F1417 TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
  • Page 24 ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) F117 chassis extension in depth to 530mm ( 20.9” ) ( 4 ) F1417 chassis extension in depth to 400mm ( 15.7” ) UM-CV-751-F117-Q123V1 P.20...
  • Page 25 < 3.5 > F117 Options : ORB-2.1 2-Post Rack Mounting Brackets Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
  • Page 26 < Part 4 > < 4.1 > F117 KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf...
  • Page 27 < 4.2 > F1417 KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6 Local Remote 8-port...
  • Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-F117-Q123V1 P.24 www.austin-hughes.com...
