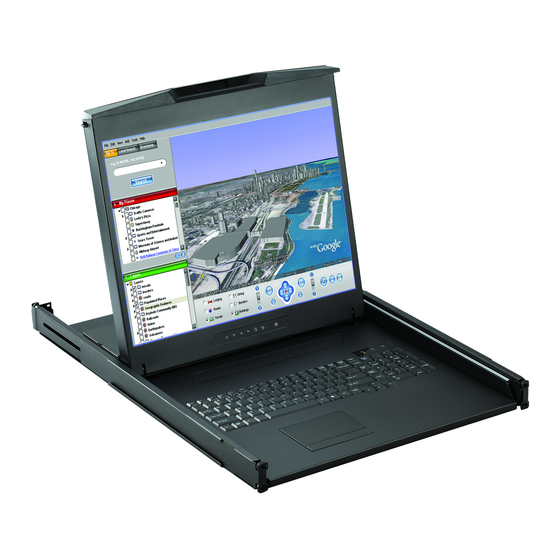

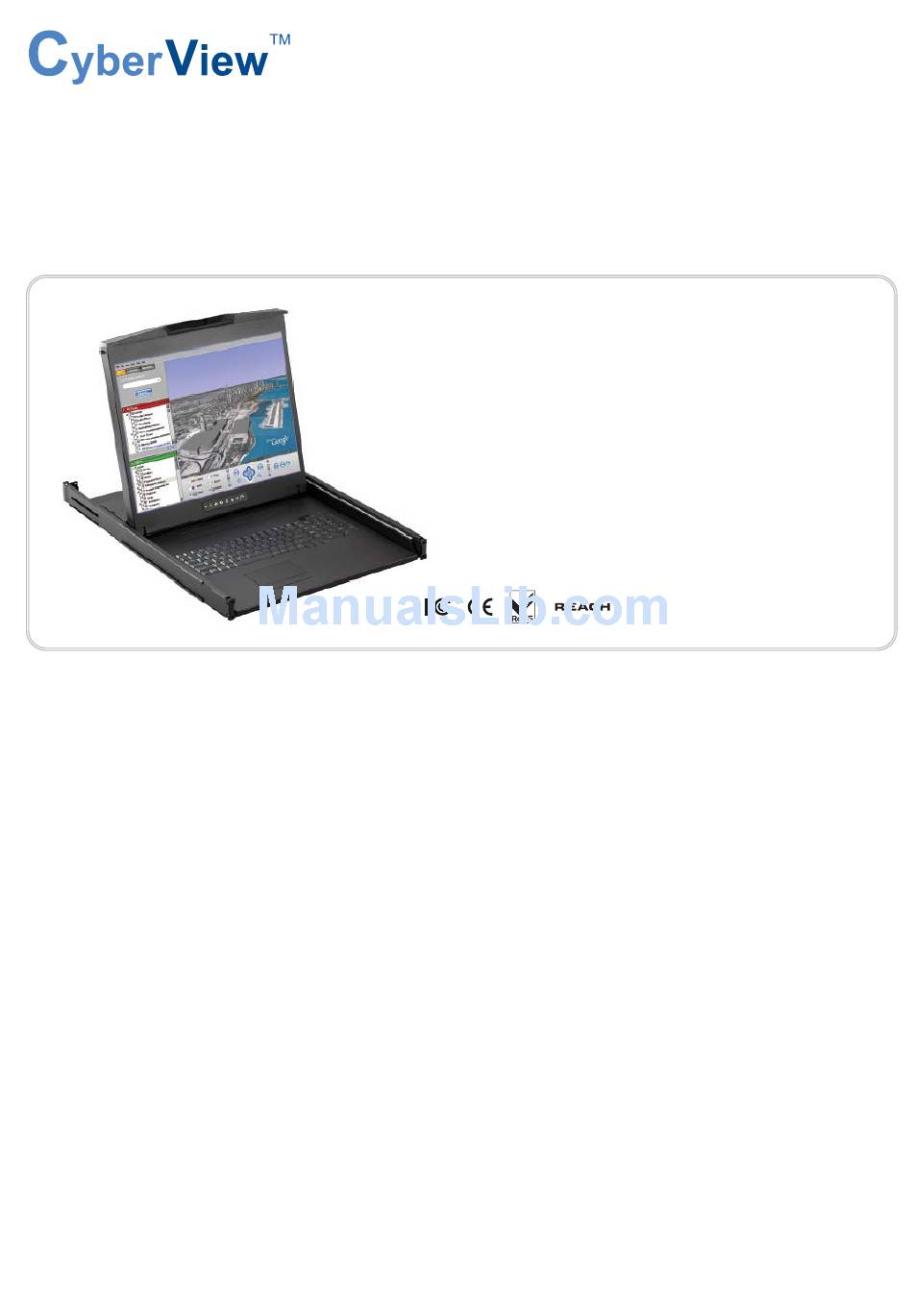

- Page 1 KVM switch and rackmount screen technology User Manual 20” 1600 x 1200 LCD L120 1U LCD Console Drawer Options : - AV / DVI-D / HDMI / Audio - Full Range KVM - DC power Designed and manufactured by Austin Hughes UM-CV-751-L120-Q413V5 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-L120-Q413V5 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > L120 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.6 - 7 Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) <... - Page 4 -MIP1613 -MIP824 -MIP1624 -M802 -M1602 -M803 -M1603 -M804 -M1604 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-SKVM-KIT.pdf Local Remote 8-port 16-port 32-port Combo DB-15 KVM -IP802 -IP1602 -802 -1602 -S801 -S1601 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf Local Remote 12-port DVI-D -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-PS2KVM-KIT.pdf Local Remote 8-port PS/2 DB-15 KVM -801 UM-CV-751-L120-Q413V5 www.austin-hughes.com...
-
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-L120-Q413V5 www.austin-hughes.com... -
Page 6: Package Content
< Part 1 > < 1.1 > Package Content L120 unit X 1 - CE-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 14.5 kg 22 kg L120 series 17.3 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 31.9 lb 48.4 lb The weight is only for the single console models. It varies with accessories & options such as KVM, HDMI, DVI-D, AV, audio &...
-
Page 8: Installation
4 pcs included. Front side This step is necessary. Failure to complete this will cause damage. Rear kit Step Complete the installation M6 screw ■ Tighten all 8 pcs of M6 screw to complete the installation. UM-CV-751-L120-Q413V5 www.austin-hughes.com... - Page 9 < 1.3 > Installation- How to use the drawer L120 ■ Press the handle button and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-L120-Q413V5 www.austin-hughes.com...
-
Page 10: Connection
Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-L120-Q413V5 www.austin-hughes.com... -
Page 11: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations L120 Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 12 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz UM-CV-751-L120-Q413V5 www.austin-hughes.com...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations L120 G keyboard integrated with touchpad 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC... -
Page 14: On-Screen Display Operation ( Osd )
H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer UM-CV-751-L120-Q413V5 www.austin-hughes.com... - Page 15 < Part 3 > < 3.1 > Options : L120 L120 ( HDMI 1.1, CEA-861-D ) - HDMI - DVI-D ( DVI-D TMDS single link ) ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio Either HDMI or DVI-D can be selected.
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. All rights reserved. P.11 UM-CV-751-L120-Q413V5 www.austin-hughes.com...
