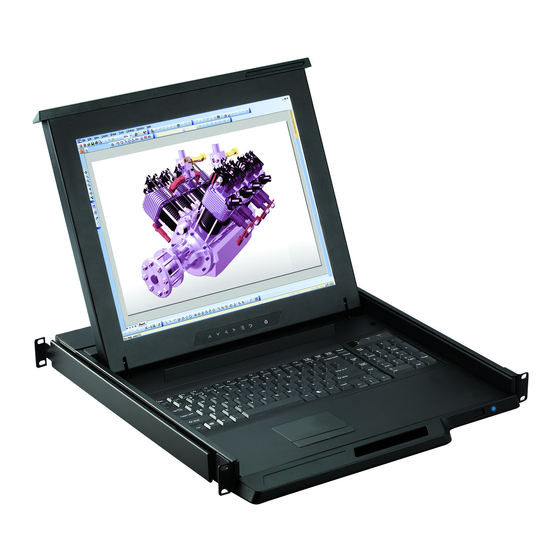

1u lcd console drawer
Hide thumbs
Also See for RKP117:
- User manual (28 pages) ,
- Specifications (2 pages) ,
- User manual (16 pages)
Advertisement
Advertisement
Related Manuals for CyberView RKP117
Summary of Contents for CyberView RKP117

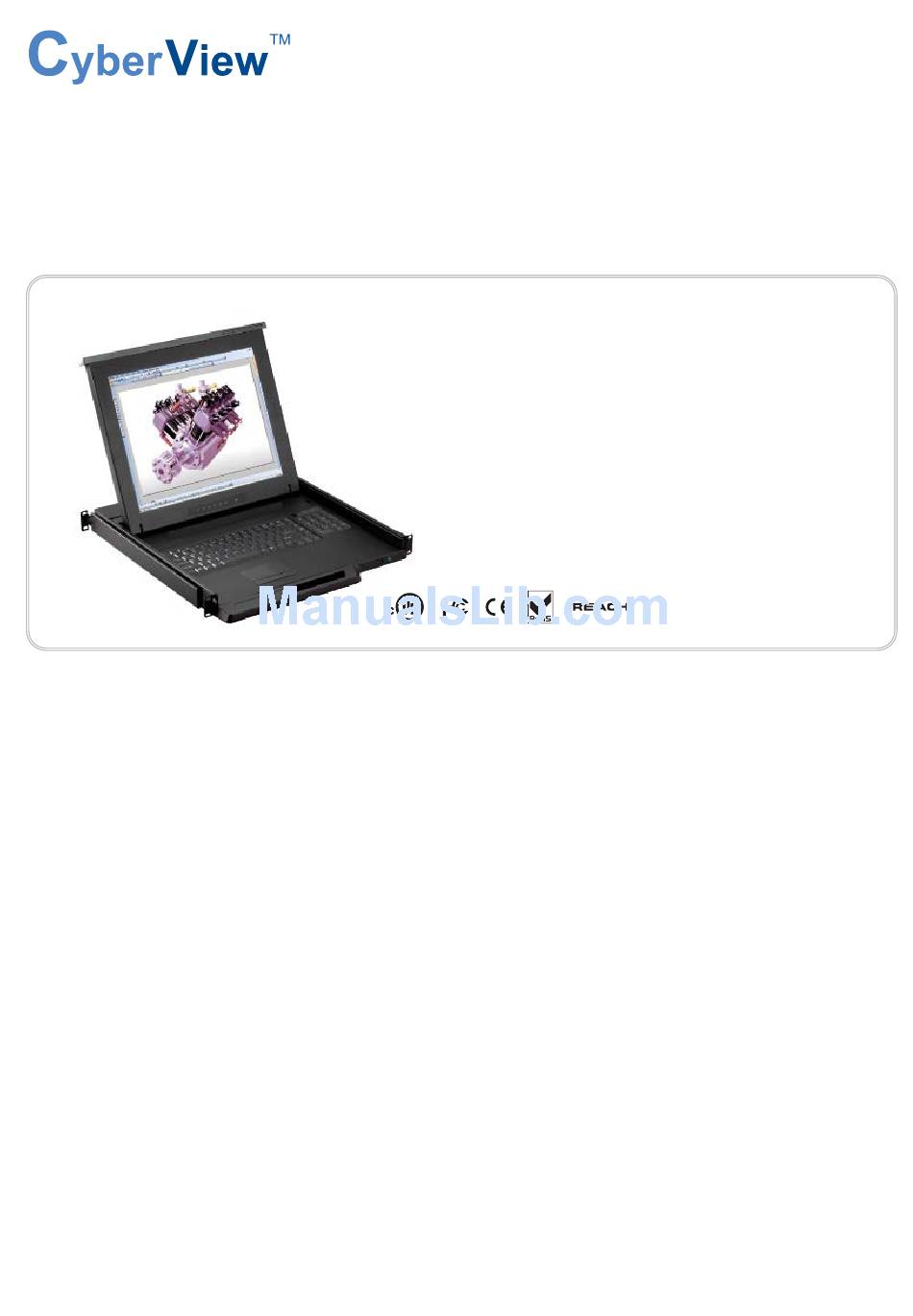

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RKP117 / RKP119 1U LCD Console Drawer Options : - AV / DVI-D / HDMI / Audio - Full Range KVM - DC power Designed and manufactured by Austin Hughes UM-CV-751-RKP117-Q413V5 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RKP117-Q413V5 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RKP117 / RKP119 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.7 - 8 Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.10 - 11... - Page 4 DB-15 KVM -IP802 -IP1602 -802 -1602 -S801 -S1601 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf Local Remote 12-port DVI-D -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-USBKVM-KIT.pdf Local Remote 8-port 16-port 32-port USB Hub DB-15 KVM -IP802H -IP1602H -802H -1602H -801H -1601H www.austin-hughes.com/support/usermanual/cyberview/UM-CV-PS2KVM-KIT.pdf Local Remote 8-port PS/2 DB-15 KVM -801 UM-CV-751-RKP117-Q413V5 www.austin-hughes.com...
-
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RKP117-Q413V5 www.austin-hughes.com... -
Page 6: Package Content
< Part 1 > < 1.1 > Package Content RKP117 or RKP119 unit X 1 - CE-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 < 1.2 > Dimension RKP117 / 119 Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 460 x 44 mm...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-RKP117-Q413V5 www.austin-hughes.com... - Page 9 < 1.3 > Installation - How to install 2 post rack brackets RKP117 / 119 Step ■ Release front mounting ears before applying 2 post rack brackets. ■ Insert rear mounting brackets into the LCD console drawer. Option Model : MB-751-12 Step ■...
- Page 10 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-RKP117-Q413V5 www.austin-hughes.com...
-
Page 11: Connection
< 1.4 > Connection to PS/2 or USB Server RKP117 / 119 LCD console drawer LCD console drawer CE-6 Combo CE-6 Combo KVM cable KVM cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer... -
Page 12: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RKP117 RKP119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 13 RKP117 / 119 Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical RKP117 RKP119 Specifi cation Product ( W x D x H ) 441.6 x 460 x 44 mm...
-
Page 14: Keyboard / Mouse Specifi Cations
MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Software support Linux / Mac Supporting layouts America United States United Kingdom Germany France Spain Norway EMEA Italy Russia Switzerland Netherlands Portugal Asia China Japan Korea Arabia Turkey UM-CV-751-RKP117-Q413V5 www.austin-hughes.com... -
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) RKP117 / 119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust... - Page 16 H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer P.11 UM-CV-751-RKP117-Q413V5 www.austin-hughes.com...
- Page 17 ( 1 ) Either HDMI or DVI-D can be selected. ( 2 ) For the above options, RKP117 depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" ) and RKP119 depth will be extended from 500mm ( 19.7” ) to 570mm ( 22.4” )
- Page 18 ( 1 ) Option excludes 1 x power cord and 1 x AC power adapter. ( 2 ) RKP117 depth will be extended from 460mm ( 18.1” ) to 530mm ( 20.9” ) ( 3 ) RKP119 depth will be extended from 500mm ( 19.7” ) to 570mm ( 22.4” ) P.13...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RKP117-Q413V5 www.austin-hughes.com...
