Summary of Contents for CyberView F117

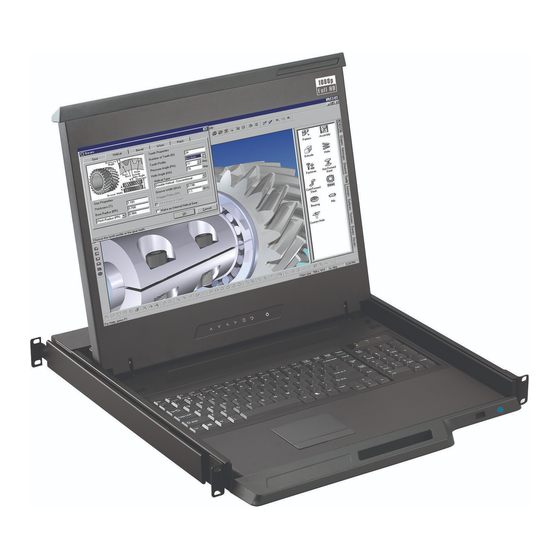

- Page 1 KVM switch and rackmount screen technology User Manual 17” FHD 1080p LCD F117 1U LCD Console Drawer Options : - SDI - HDMI / Audio - DC power Designed and manufactured by Austin Hughes UM-CV-751-F117-Q414V3 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-F117-Q414V3 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > F117 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10 - 12... - Page 4 DB-15 KVM -IP802 -IP1602 -802 -1602 -S801 -S1601 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf Local Remote 12-port DVI-D -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-USBKVM-KIT.pdf Local Remote 8-port 16-port 32-port USB Hub DB-15 KVM -IP802H -IP1602H -802H -1602H -801H -1601H www.austin-hughes.com/support/usermanual/cyberview/UM-CV-PS2KVM-KIT.pdf Local Remote 8-port PS/2 DB-15 KVM -801 UM-CV-751-F117-Q414V3 www.austin-hughes.com...
-
Page 5: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-F117-Q414V3 www.austin-hughes.com... -
Page 6: Part. 1 > F117
< Part 1 > < 1.1 > Package Content F117 unit X 1 - CX-6 6ft DVI-D console cable X 1 ( Alternative : CB-6 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 < 1.2 > Dimension F117 Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 480 x 44 mm 590 x 808 x 140 mm 10.8 kg...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-F117-Q414V3 www.austin-hughes.com... -
Page 9: Post Rack Brackets
< 1.3 > Installation - How to install 2 post rack brackets F117 Step ■ Release front mounting ears before applying 2 post rack brackets. ■ Insert rear mounting brackets into the LCD console drawer. Option Model : MB-751-12 Step ■... - Page 10 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-F117-Q414V3 www.austin-hughes.com...
-
Page 11: Connection
< 1.4 > Connection to USB Server via CX-6 cable F117 LCD Console Drawer Power DVI-D CX-6 DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via CX-6 cable LCD Console Drawer Power DVI-D KVM CX-6 DVI-D... - Page 12 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-F117-Q414V3 www.austin-hughes.com...
-
Page 13: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations F117 Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 14 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz UM-CV-751-F117-Q414V3 www.austin-hughes.com...
-
Page 15: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations F117 G keyboard integrated with touchpad G keyboard integrated with trackball 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC... - Page 16 How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts. Dashboard Increase volume Rewind Eject disc Play / Pause Command P.11 UM-CV-751-F117-Q414V3 www.austin-hughes.com...
- Page 17 < 2.2 > SUN Keyboard / Mouse Options F117 S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 18: On-Screen Display Operation ( Osd )
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power P.13 UM-CV-751-F117-Q414V3 www.austin-hughes.com... - Page 19 < 2.3 > On-screen Display Operation ( OSD ) F117 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup...
- Page 20 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 21: Part. 3 > Options
< 3.2 > Options : F117 ( HDMI 1.1, CEA-861-D ) - HDMI ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio For audio option, casing depth will be changed from 480mm ( 18.9" ) to 530mm ( 20.9" ) - Page 22 For DC power option : ( 1 ) Option excludes 1 x power cord and 1 x AC power adapter. ( 2 ) Casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" ) P.17 UM-CV-751-F117-Q414V3 www.austin-hughes.com...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2014 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-F117-Q414V3 www.austin-hughes.com...
