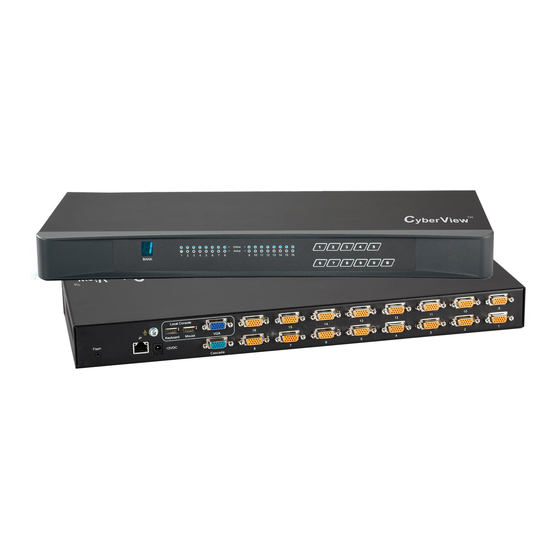

CyberView U-IP1602 User Manual
  1. Manuals
  2. Brands
  3. CyberView Manuals
  4. Switch
  5. U-IP1602
  6. User manual

CyberView U-IP1602 User Manual

Hide thumbs Also See for U-IP1602:
Table of Contents

Advertisement

Quick Links

Download this manual
dedicated KVM switch and rackmount screen technology
User Manual
Cat6
2-console KVM
U-IP802 / 1602 / 3202
Cat6
2-console KVM
U-802 / 1602 / 3202
Cat6 KVM
U-801 / 1601 / 3201
751
Designed and manufactured by Austin Hughes
UM-CV-751-UKVM-Q322V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-IP1602 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberView U-IP1602

Summary of Contents for CyberView U-IP1602

  • Page 1 dedicated KVM switch and rackmount screen technology User Manual Cat6 2-console KVM U-IP802 / 1602 / 3202 Cat6 2-console KVM U-802 / 1602 / 3202 Cat6 KVM U-801 / 1601 / 3201 Designed and manufactured by Austin Hughes UM-CV-751-UKVM-Q322V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, August 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > Cat6 IP KVM U-IP802 U-IP1602 U-IP3202 Package Content KVM port & Cat6 dongle connection IP & Local console connection Connect to IP console IP Console Firmware Update KVM Cascade Specifi cations P.10 < Part. 2 >...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Cat6 Ip Kvm

    < Part 1 > Cat6 < 1.1 > Package Contents Cat6 IP KVM U-IP802 / U-IP1602 / U-IP1602 KVM unit • UIP-802 or UIP-1602 or UIP-3202 KVM unit x 1 • Mounting set w/ bracket & screws x 1 •...

  • Page 6: Kvm Port & Cat6 Dongle Connection

    < 1.2 > KVM port & Cat6 dongle connection Cat6 IP KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port DG-100H HDMI CAT 5 / 6 cable...

  • Page 7: Ip & Local Console Connection

    < 1.3 > IP & Local console connection Cat6 IP KVM IP Console Frequency Resolution Support ( Hz ) 1920 x 1080 1920 x 1200 1600 x 1200 1280 x 1024 1024 x 768 UM-CV-751-UKVM-Q322V1 www.austin-hughes.com...

  • Page 8: Connect To Ip Console

    < 1.4 > Connect to IP console Cat6 IP KVM Please make sure to follow the below steps to setup your KVM IP properly. I. Confi gure the target server The target server is the server that connected to the IP KVM Switch. Before use IP remote access, you need to turn off...
  • Page 9 Cat6 IP KVM Change display scaling setting 100% Open Settings. Click on System. Click on Display. Under the “Scale and layout” section, select the scale 100%. UM-CV-751-UKVM-Q322V1 www.austin-hughes.com...
  • Page 10 Cat6 IP KVM II. Logging in to IP KVM The default IP address is as below: IP address: 192.168.1.22 Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 IP KVM model with single IP port: - Default address 192.168.1.22 IP KVM model with dual IP ports: - The 1st IP address 192.168.1.22 - The 2nd IP address 192.168.1.23 To log in to the IP KVM do as follows:...
  • Page 11 If the users access KVM GUI via internet, please ask MIS for assistance and download IP KVM user manual from the link : www.austin-hughes.com/support/usermanual/cyberview/UM-CV-IP.pdf IV. Launch remote console Click Control and then Remote console, the Remote console Preview is displayed, then Click Connect, the remote console opens in a separate windows.

  • Page 12: Ip Console Firmware Update

    < 1.5 > IP Console Firmware Update Cat6 IP KVM Firmware Update Steps 1) Download the latest IP KVM fi rmware from the link http://www.austin-hughes.com/resources/software/kvm-switch 2) Login the IP KVM 3) Click < Maintenance > 4) Click < Update Firmware > 5) Click <...

  • Page 13: Kvm Cascade

    < 1.6 > KVM Cascade Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 14: Specifi Cations

    < 1.7 > Specifi cations Cat6 IP KVM U-IP802 U-IP1602 U-IP3202 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console ▀...

  • Page 15: Cat6 2-Console Kvm

    < Part 2 > Cat6 2-console KVM < 2.1 > Package Contents Cat6 2-console KVM U-802 / U-1602 / U-3202 • U-802 or U-1602 or U-3202 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit •...

  • Page 16: Kvm Port & Cat6 Dongle Connection

    < 2.2 > KVM port & Cat6 dongle connection Cat6 2-console KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable CAT 5 / 6 cable DG-100P max.

  • Page 17: Remote & Local Console Connection

    < 2.3 > Remote & Local console connection Cat6 2-console KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200 1600 x 1200...
  • Page 18 How to use a receiver to connect a remote console Cat6 2-console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.23 Remote Console Local computer CE-6...

  • Page 19: Kvm Cascade

    < 2.4 > KVM Cascade Cat6 2-console KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 20: Specifi Cations

    < 2.5 > Specifi cations Cat6 2-console KVM U-802 U-1602 U-3202 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console ▀...

  • Page 21: Cat6 Kvm

    < Part 3 > Cat6 KVM < 3.1 > Package Contents Cat6 KVM U-801 / U-1601 / U-3201 KVM unit • U-801 or U-1601 or U-3201 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord ( for KVM ) x 1 U-801 Local Console...

  • Page 22: Kvm Port & Cat6 Dongle Connection

    < 3.2 > KVM port & Cat6 dongle connection Cat6 KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable CAT 5 / 6 cable DG-100P max.

  • Page 23: Kvm Cascade

    < 3.3 > KVM Cascade Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 24: Specifi Cations

    < 3.4 > Specifi cations Cat6 KVM U-801 U-1601 U-3201 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 Connectivity : cable Local Console ▀...

  • Page 25: Usage

    < Part 4 > Usage Cat6 KVM Usage < 4.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Bank no.

  • Page 26: Password

    < 4.2 > Password Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 27: Kvm Osd

    < 4.3 > KVM OSD Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port...

  • Page 28: Kvm Hotkey & Remote Console Hotkey

    < 4.4 > KVM Hotkey & Remote Console Hotkey Cat6 KVM Usage Local / IP Remote Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
  • Page 29 < 4.5 > Options : DC Power Cat6 KVM Usage Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA...
  • Page 30 Intentionally Left Blank UM-CV-751-UKVM-Q322V1 P.26 www.austin-hughes.com...
  • Page 31 Intentionally Left Blank UM-CV-751-UKVM-Q322V1 P.27 www.austin-hughes.com...
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-UKVM-Q322V1 www.austin-hughes.com...
