MFF101 and MFF102 Motorized Filter Flippers
use in absence of a PC. To save the settings to hardware, check the 'Persist Settings
to the Device' checkbox before clicking the 'OK button.
Caution
The 'Persist Settings' functionality is provided to simplify use of the unit
in the absence of a PC. When the unit is connected to a PC and is
operated via the software, the default Server settings will be loaded at
boot up, even if the 'Persist Settings' option has been checked.
6.3.2 Settings Panel

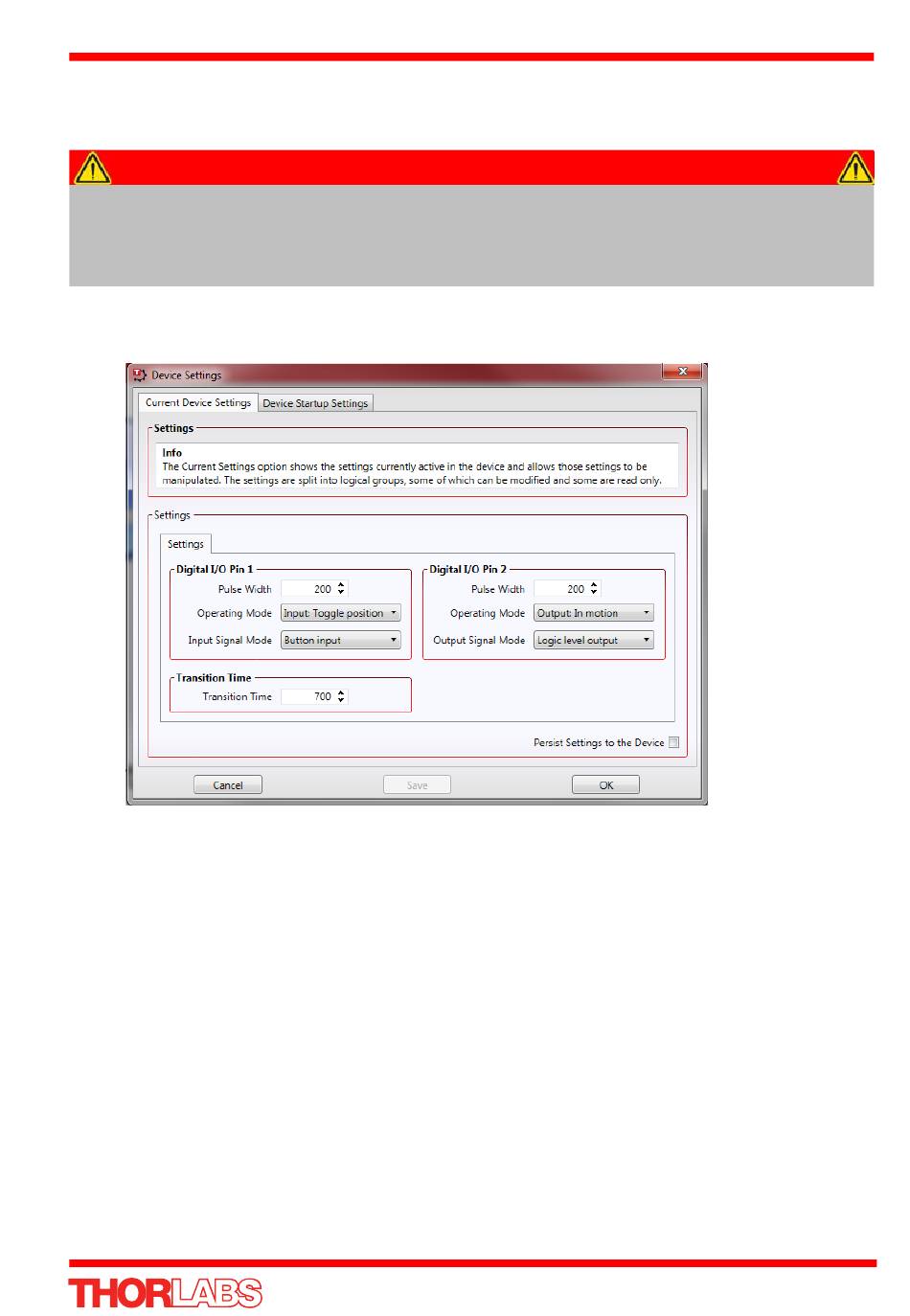

Fig. 6.2 Filter Flipper - Settings
Transition Time - The time taken (in milliseconds) for the flipper to move from
position 1 to position 2 and vice versa, in the range 300 ms to 2800 ms.
The following parameters dictate the function of the SMA Digital I/O connectors on the
unit. They are identical for Digital I/O Pin 1 and Digital I/O Pin 2.
Pulse Width - The pulse width when the Input Signal Mode described below is set to
Logic Pulse Output or Logic Pulse Output (Inverted).
Operating Mode - This parameter specifies the operating mode
Input:Toggle Position - Sets IO connector to input and 'toggle position' mode. In this
mode, the input signal causes flipper to move to opposite position).
Input: Go to Position - Sets IO connector to input and 'goto position' mode. In this
mode, the input signal dictates flipper position, POS 1 or POS 2 as dictated by the
Button Input or Button Input (Swap Position) parameters described below. See Fig.
3.2 for details of POS 1 and POS 2.
19
