Chapter 6 Software Reference

6.1 Introduction

This chapter gives an explanation of the parameters and settings accessed from the
software running on a PC.

6.2 GUI Panel

The following screen shot shows the graphical user interface (GUI) displayed when
accessing the filter flipper using the Kinesis software.
The serial number of the MFF filter flipper associated with the GUI panel,
is displayed in the top right hand corner. This information should always
Position 1 - used to initiate a move to position 1. When the button is
clicked, the flipper is driven to the position at the speed entered in the
'Transition Time' field in the 'Settings' panel (see Section 6.3.). When
at position, the LED in the button is lit.
Position 2 - used to initiate a move to position 2. When the button is
clicked, the flipper is driven to the position at the speed entered in the
'Transition Time' field in the 'Settings' panel (see Section 6.3.). When
at position, the LED in the button is lit.

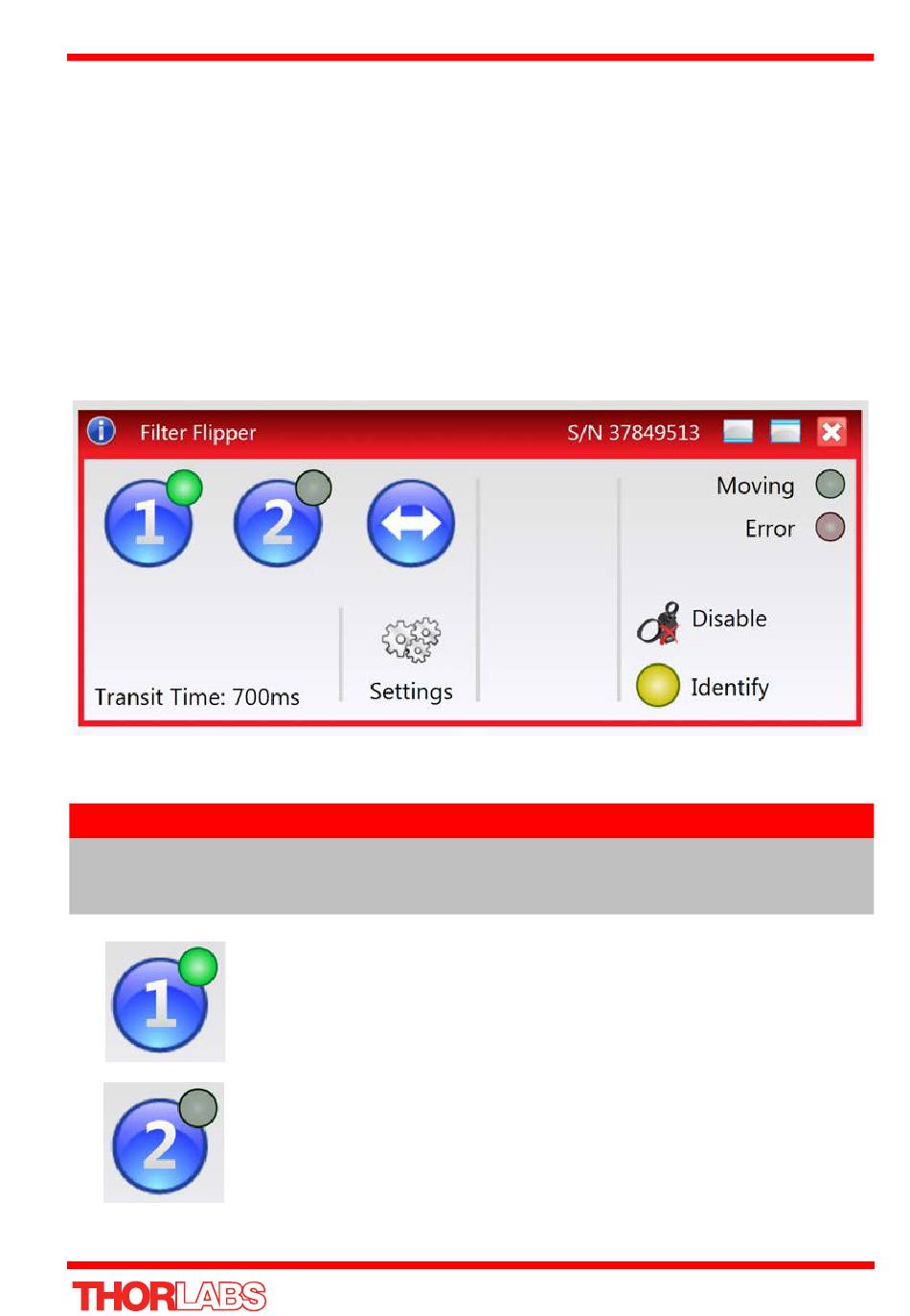

Fig. 6.1 Filter Flipper Software GUI
be provided when requesting customer support.
