6.4.6.2 Upper and lower current limit
In the standard setting, the current output is limited at 3.8 and 20.5 mA, meaning a further
drop or rise in the pressure does not change the current. You can freely select these
current limits for the lower limit between 3.8 and 4 mA and for the upper limit between 20
and 21 mA.
6.4.7 "Diagnosis" menue
In this menue you can view and configure various diagnostic information. The following
diagnostic functions are available:
Menue entry
Counter
Min/max Pressure
Min/max Temp
Last Error
Self Test
Maintenance Timer
6.4.7.1 The trailing pointers
The trailing pointers save the maximum and minimum measured pressure and
temperature levels until they are reset by the user. The menue item that shows the trailing
pointer, can also be used to reset it. The trailing pointers are also accessible directly from
the measured value display in the device data (see 6.2.1).
BA_072 Rev 1J3 Pressure transmitter PASCAL Ci4
OK

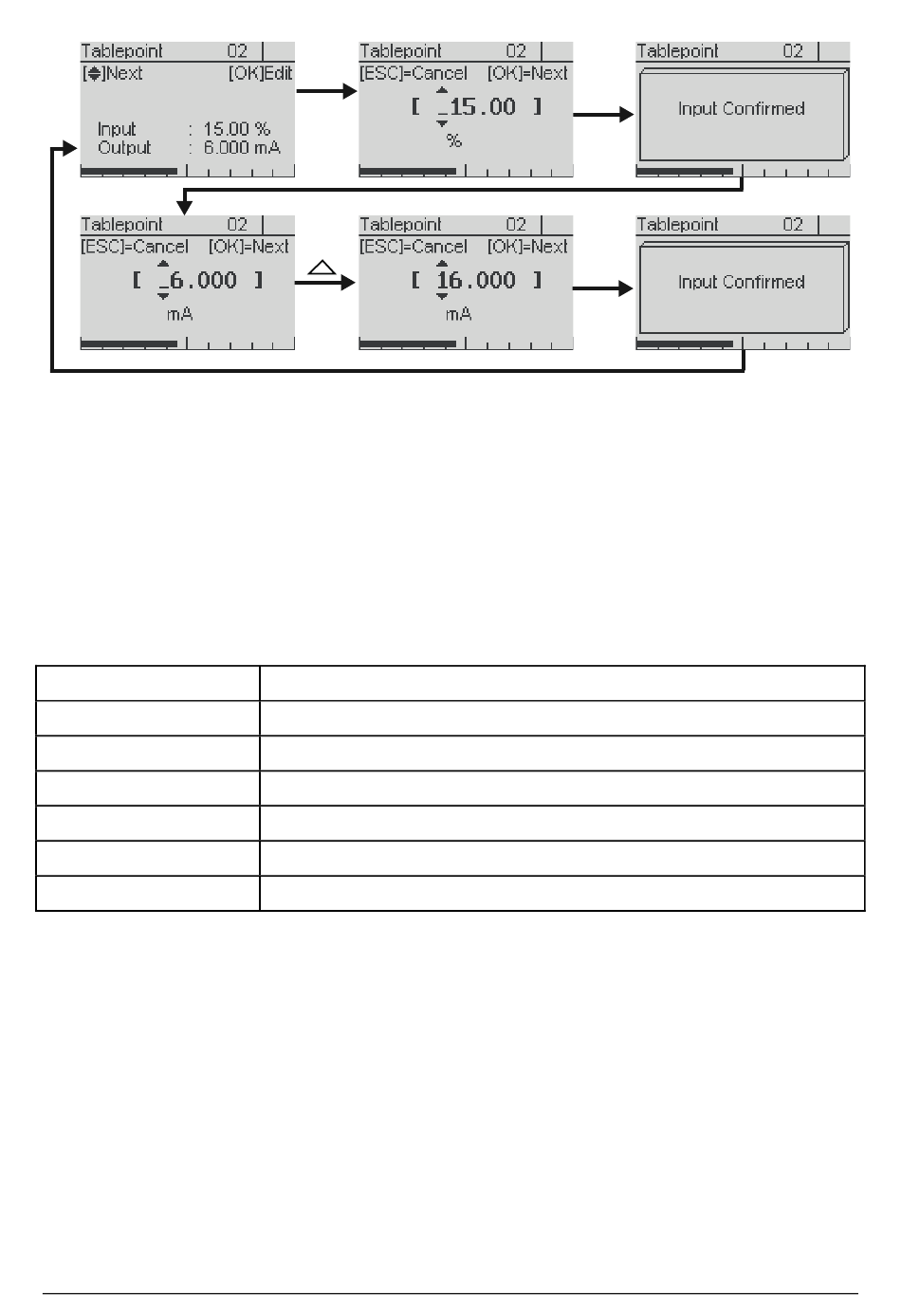

Figure 16: Changing a table point
Description
Display of operating hour counter and maintenance timer
Display and reset of trailing pointer for the pressure measurement
Display and reset of trailing pointer for the sensor temperature
Display and reset of the last critical error
Self test of the device like after applying the power supply
Management of maintenance intervals
Table 16: "Diagnosis" menue
OK
long
OK
long
