Configuration with the digital command station
Please make sure that you observe the manual of the device in
order to find out the numbers and the range of values of the Lo-
coNet™ CVs. The ECoS does not know the structure and meaning
of the programmed devices. Incorrectly configured modules will
not work properly.
6.5. Configuration of feedback modules
All feedback modules connected to the L.Net converter are inter-
nally dealt with like ECoSDetectors by the ECoS. The ECoS combi-
nes 16 feedback inputs into one virtual ECoSDetector (see Fig. 9):
a) "Add" button
b) "Delete" button
• ECoSDetector Name: Here you can edit the names of the feed-
back modules connected to this L.Net converter that will be dis-
played in the ECoS.
• ECoSDetector Nummer: In order to assure that feedback mo-
dules connected to the L.Net converter can function parallel to
the s88 feedback decoders und also parallel to "real" ECoSDetec-
tors each module must have a "number" similar to those of the
8

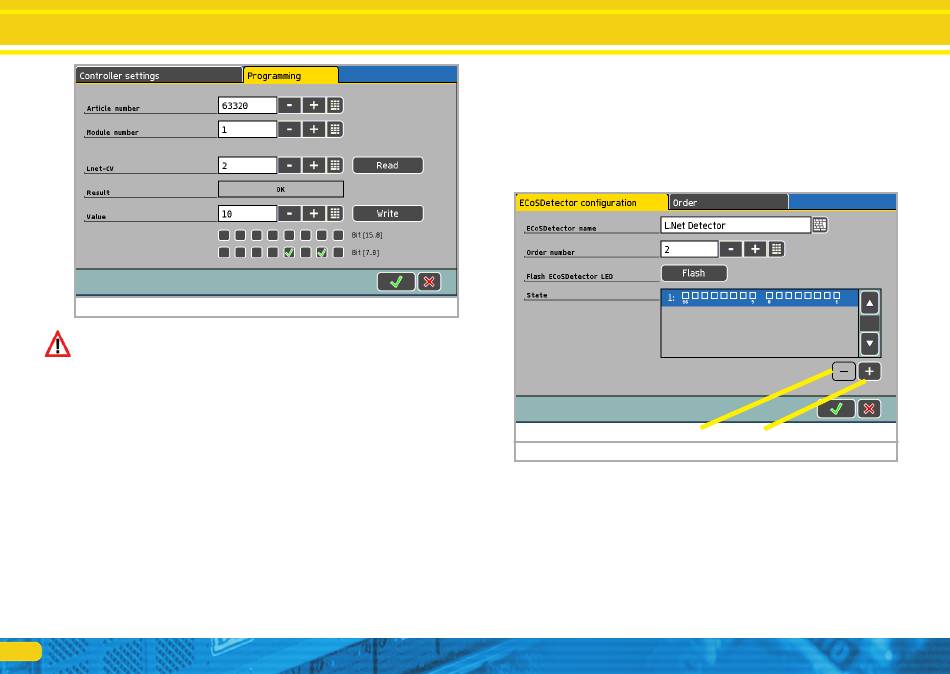

Figure 8: Write LNet CV
s88 modules. That way the individual modules can easily be kept
apart. This number may be any number between 1 and 1000.
When using more than one L.Net converter or in combined ope-
ration with ECoSDetectors it is not necessary to assign consecutive
numbers. There may well be gaps in the sequence of numbers.
• Status: Here you can read the status of the feedback modules
directly and to configure them. A marked square indicates that the
feedback module is active.
b)
Figure 9: L.Net feedback configuration
6.5.1. Addresses of feedback modules
LocoNet™ feedback information uses addresses ranging from 1 to
2048 (not to be confused with the address of the feedback mo-
dule). Some types of feedback modules allow you to freely assign
addresses respectively to configure every feedback port. Gaps are
also permitted.
You can display the feedback modules on the ECoS starting with
number 1 in groups of 16 in the area of the ECoSDetectors. You
can select how many groups of 16 should be displayed by pressing
the buttons a) (Add feedback module) respectively b) (Delete feed-
a)
