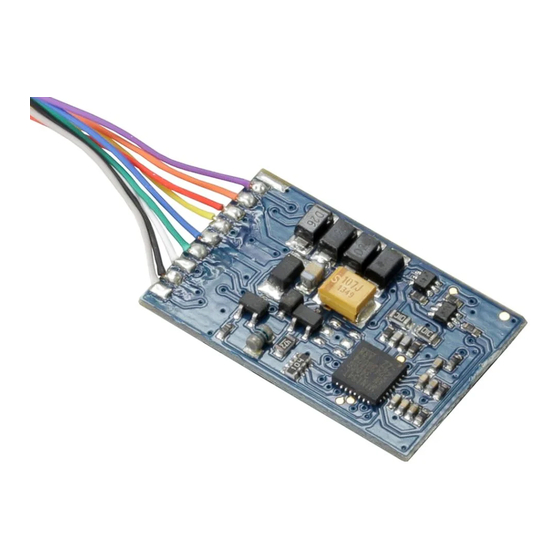

LokPilot 5 Basic
P DCC / DC-Decoder with B-EMF for engines equipped with DC or coreless motors
P Four powered function outputs ( +8 logic level outputs for 21MTC version)
P RailComPlus® for automatic Registration at ESU command stations
P Supports ABC braking & versatile ESU Version 5 function mapping
59020
DCC Decoder
NMRA 8 pin wire harness
DCC & ABC & RailComPlus
4 powered function outputs
1 logic level output (PowerPack)
Specification
Operational
NMRA/DCC with 14, 28, 128 speed steps.
modes
2-digit (short) and 4-digit (long) addresses.
Analog DC operation (de-selectable).
Automatic recognition of operational mode and DCC speed step selection.
Supports Lenz® LG 100 and ABCBraking sections
Throttle
Runs DC and coreless motors.
0,9 A continuous load. 10 kHz - 50,00 kHz motor pulse width frequency motor regulation.
Motor output overload protection. Back-EMF (de-selectable)
Function outputs
4 powered outputs with overload protection
250mA load per output.
500mA total load of all function outputs.
8 pin version supports 1, 21MTC version supports 8 additional logic level outputs.
Shunting speed and momentum key selectable.
Programming
DCC Servicemode & DCC POM (Programming on Main).
Features
RailCom® Feedback system. RailComPlus® Automatische Anmeldung.
Interface
dimensions in mm
dimensions
Item - Number
This product is not a toy. Not recommended for children under 14 years of age.
expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information, go to www.p65warnings.ca.gov.
ESU P/N 01421-24834
LokPilot 5 Basic
4AOEGOP*fjacab+
NMRA 8 pin
25,5 x 15,5 x 4,5
1.00 x 0.61 x 0.18
59020
ESU LLC
1304 Jordan Ave
Montoursville PA 17754
ESU GmbH & Co. KG
Edisonallee 29
D - 89231 Neu-Ulm
DEUTSCHLAND
21MTC
25,5 x 15,5 x 4,5
1.00 x 0.61 x 0.18
59029
WARNING: This product can
www.esu.eu
www.esu.eu
USA
