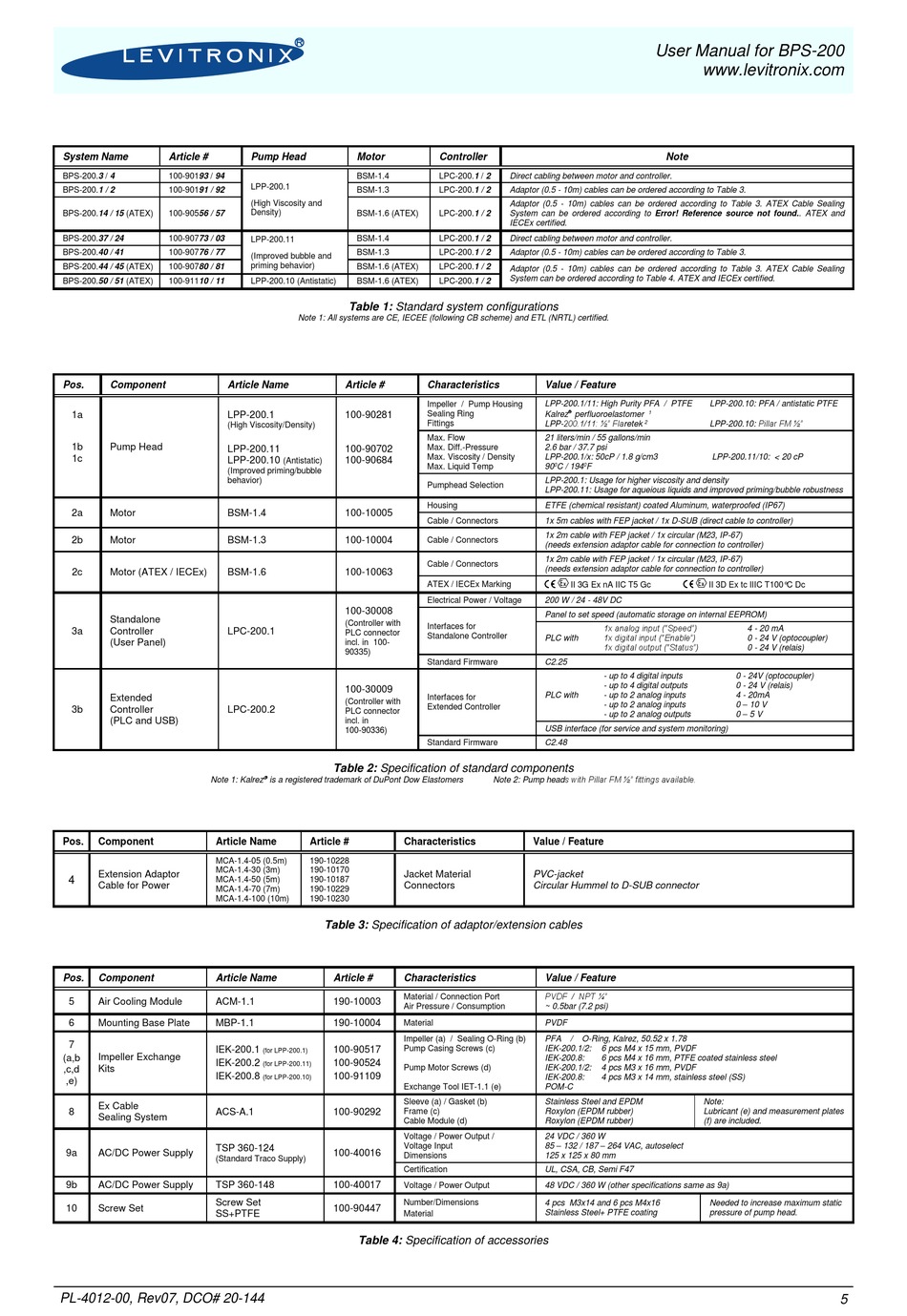

Levitronix BPS-200 User Manual page 5

System Name Article #
BPS-200.3 / 4 100-90193 / 94
BPS-200.1 / 2 100-90191 / 92
BPS-200.14 / 15 (ATEX) 100-90556 / 57
BPS-200.37 / 24 100-90773 / 03
BPS-200.40 / 41 100-90776 / 77
BPS-200.44 / 45 (ATEX) 100-90780 / 81
BPS-200.50 / 51 (ATEX) 100-91110 / 11
Pos. Component Article Name
1a LPP-200.1
(High Viscosity/Density)
1b Pump Head
LPP-200.11
1c
LPP-200.10
(Improved priming/bubble
behavior)
2a Motor BSM-1.4
2b Motor BSM-1.3
2c Motor (ATEX / IECEx) BSM-1.6
Standalone
3a Controller LPC-200.1
(User Panel)
Extended
3b Controller LPC-200.2
(PLC and USB)
Note 1: Kalrez
Pos. Component Article Name
MCA-1.4-05 (0.5m)
MCA-1.4-30 (3m)
Extension Adaptor
4
MCA-1.4-50 (5m)
Cable for Power
MCA-1.4-70 (7m)
MCA-1.4-100 (10m)
Pos. Component Article Name
5 Air Cooling Module ACM-1.1
6 Mounting Base Plate MBP-1.1
7
IEK-200.1
Impeller Exchange
(a,b
IEK-200.2
Kits
,c,d
IEK-200.8
,e)
Ex Cable
8 ACS-A.1
Sealing System
TSP 360-124
9a AC/DC Power Supply
(Standard Traco Supply)
9b AC/DC Power Supply TSP 360-148
Screw Set
10 Screw Set
SS+PTFE
PL-4012-00, Rev07, DCO# 20-144
Pump Head Motor
BSM-1.4
LPP-200.1
BSM-1.3
(High Viscosity and
Density)
BSM-1.6 (ATEX)
BSM-1.4
LPP-200.11
BSM-1.3
(Improved bubble and
priming behavior)
BSM-1.6 (ATEX)
LPP-200.10 (Antistatic) BSM-1.6 (ATEX)
Table 1: Standard system configurations
Note 1: All systems are CE, IECEE (following CB scheme) and ETL (NRTL) certified.
Article #
100-90281
100-90702
100-90684
(Antistatic)
100-10005
100-10004
100-10063
100-30008
(Controller with
PLC connector
incl. in 100-
90335)
100-30009
(Controller with
PLC connector
incl. in
100-90336)
Table 2: Specification of standard components

is a registered trademark of DuPont Dow Elastomers
Article # Characteristics
190-10228
190-10170
Jacket Material
190-10187
Connectors
190-10229
190-10230
Table 3: Specification of adaptor/extension cables
Article # Characteristics
Material / Connection Port
190-10003
Air Pressure / Consumption
190-10004 Material
Impeller (a) / Sealing O-Ring (b)
Pump Casing Screws (c)
100-90517
(for LPP-200.1)
100-90524
(for LPP-200.11)
Pump Motor Screws (d)
100-91109
(for LPP-200.10)
Exchange Tool IET-1.1 (e)
Sleeve (a) / Gasket (b)
100-90292 Frame (c)
Cable Module (d)
Voltage / Power Output /
Voltage Input
100-40016
Dimensions
Certification
100-40017
Voltage / Power Output
Number/Dimensions
100-90447
Material
Table 4: Specification of accessories
Controller
LPC-200.1 / 2 Direct cabling between motor and controller.
LPC-200.1 / 2 Adaptor (0.5 - 10m) cables can be ordered according to Table 3.
Adaptor (0.5 - 10m) cables can be ordered according to Table 3. ATEX Cable Sealing
LPC-200.1 / 2 System can be ordered according to Error! Reference source not found.. ATEX and
IECEx certified.
LPC-200.1 / 2 Direct cabling between motor and controller.
LPC-200.1 / 2 Adaptor (0.5 - 10m) cables can be ordered according to Table 3.
LPC-200.1 / 2
Adaptor (0.5 - 10m) cables can be ordered according to Table 3. ATEX Cable Sealing
System can be ordered according to Table 4. ATEX and IECEx certified.
LPC-200.1 / 2
Characteristics Value / Feature
Impeller / Pump Housing LPP-200.1/11: High Purity PFA / PTFE

Sealing Ring
Kalrez perfluoroelastomer
LPP-200.1/11: ½" Flaretek
Fittings
Max. Flow 21 liters/min / 55 gallons/min
Max. Diff.-Pressure 2.6 bar / 37.7 psi
Max. Viscosity / Density LPP-200.1/x: 50cP / 1.8 g/cm3
Max. Liquid Temp 90 0 C / 194 0 F
LPP-200.1: Usage for higher viscosity and density
Pumphead Selection
LPP-200.11: Usage for aqueious liquids and improved priming/bubble robustness
Housing ETFE (chemical resistant) coated Aluminum, waterproofed (IP67)
Cable / Connectors 1x 5m cables with FEP jacket / 1x D-SUB (direct cable to controller)
1x 2m cable with FEP jacket / 1x circular (M23, IP-67)
Cable / Connectors
(needs extension adaptor cable for connection to controller)
1x 2m cable with FEP jacket / 1x circular (M23, IP-67)
Cable / Connectors
(needs extension adaptor cable for connection to controller)
ATEX / IECEx Marking
II 3G Ex nA IIC T5 Gc
Electrical Power / Voltage 200 W / 24 - 48V DC
Panel to set speed (automatic storage on internal EEPROM)
Interfaces for
Standalone Controller
PLC with
Standard Firmware C2.25
PLC with
Interfaces for
Extended Controller
USB interface (for service and system monitoring)
Standard Firmware C2.48
Note 2: Pump heads with Pillar FM ½" fittings available.
Value / Feature
PVC-jacket
Circular Hummel to D-SUB connector
Value / Feature
PVDF / NPT ¼"
~ 0.5bar (7.2 psi)
PVDF
PFA / O-Ring, Kalrez, 50.52 x 1.78
IEK-200.1/2:
IEK-200.8:
IEK-200.1/2:
IEK-200.8:
POM-C
Stainless Steel and EPDM
Roxylon (EPDM rubber)
Roxylon (EPDM rubber)
24 VDC / 360 W
85 – 132 / 187 – 264 VAC, autoselect
125 x 125 x 80 mm
UL, CSA, CB, Semi F47
48 VDC / 360 W (other specifications same as 9a)
4 pcs M3x14 and 6 pcs M4x16
Stainless Steel+ PTFE coating
User Manual for BPS-200
www.levitronix.com
Note
LPP-200.10: PFA / antistatic PTFE
1
LPP-200.10: Pillar FM ½"
2
LPP-200.11/10: < 20 cP
II 3D Ex tc IIIC T100°C Dc
1x analog input ("Speed")
4 - 20 mA
1x digital input ("Enable")
0 - 24 V (optocoupler)
1x digital output ("Status")
0 - 24 V (relais)
- up to 4 digital inputs 0 - 24V (optocoupler)
- up to 4 digital outputs 0 - 24 V (relais)
- up to 2 analog inputs 4 - 20mA
0 – 10 V
- up to 2 analog inputs
0 – 5 V
- up to 2 analog outputs
6 pcs M4 x 15 mm, PVDF
6 pcs M4 x 16 mm, PTFE coated stainless steel
4 pcs M3 x 16 mm, PVDF
4 pcs M3 x 14 mm, stainless steel (SS)
Note:
Lubricant (e) and measurement plates
(f) are included.
Needed to increase maximum static
pressure of pump head.
5
