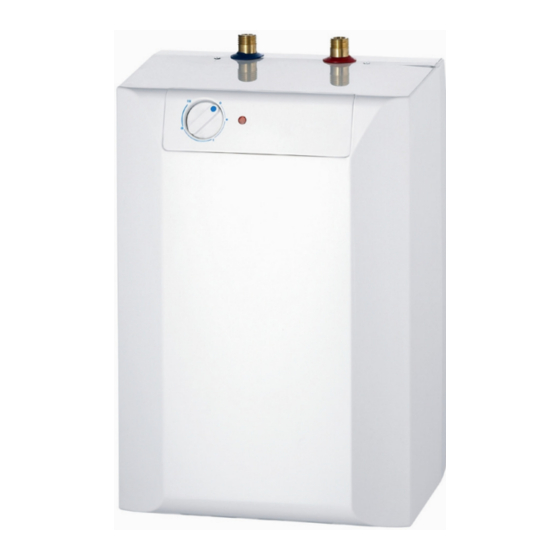

- Page 1 Installation & Operating Instructions Zip Tudor Single point open outlet (vented) under-sink water heaters Model: 21102, 21052 Accessory Tapware for Under-Sink Tudors (sold separately) Solo* Hero* 81333 v1.12 09.21 Tudor Installation Instruction Page 1 of 8...
-
Page 2: Installation Requirements
Children should be supervised to ensure they do not play with the heater. If the power supply cord is damaged it must be replaced by a Zip Service Provider or a qualified electrician. -
Page 3: Installation
NOTE: Failure to correctly fit the Restrictaflow valve (provided) will void the warranty Step One - Tapware Note: Instructions for correct assembly and installation of Tudor tapware is included in the tapware box. Pay close attention to these instructions. Under-sink models must be installed with approved vented tapware. It is advisable to fit the tap to the sink before mounting the heater to the wall beneath the sink. - Page 4 Step Four - Connecting The inlet and outlet water connections are located on the top of the heater. All Zip Tudor water connections are via 15 mm compression fittings and must be made strictly as shown in the diagrams. Under-sink models must be installed with approved vented tapware regulating...
- Page 5 (see page 3) Isolation Valve (not supplied) Restrictaflow (see page 4) Connecting (see page 4) Fasten heater to wall (see page 3) Commissioning - before turning power on (see page 4) 81333 v1.12 09.21 Tudor Installation Instruction Page 5 of 8...
-
Page 6: Operation
Operation Control Panel Water Temperature Zip Tudor water heaters are fully automatic, and may be left switched ON under the control of the variable thermostat. Nominal operating temperature can be varied from about 30°C to about 80°C. Temperature should not be set to less than 50°C without due regard to regulations governing the storage temperature of hot water. -
Page 7: End Of Life Disposal
11. Refit the cover assembly. Tap temperature adjustment Adjustment of a tap temperature limiter on Solo and Hero vented taps should be made only by a Zip Service Provider or a qualified technician. Cleaning Never use strong, corrosive or abrasive cleaning materials. Wipe clean the outer surfaces with a sponge or soft cloth using a mild soap and water. -
Page 8: Troubleshooting
67-77 Allingham Street, Condell Park NSW 2200 Postal: Locked Bag 80, Bankstown 1885 Australia zipwater.com | (+612) 9796 3100 | 1800 ZIP TAP (1800 947 827) Zip products described in this publication are manufactured under one or more of patents and further patent applications are pending.
