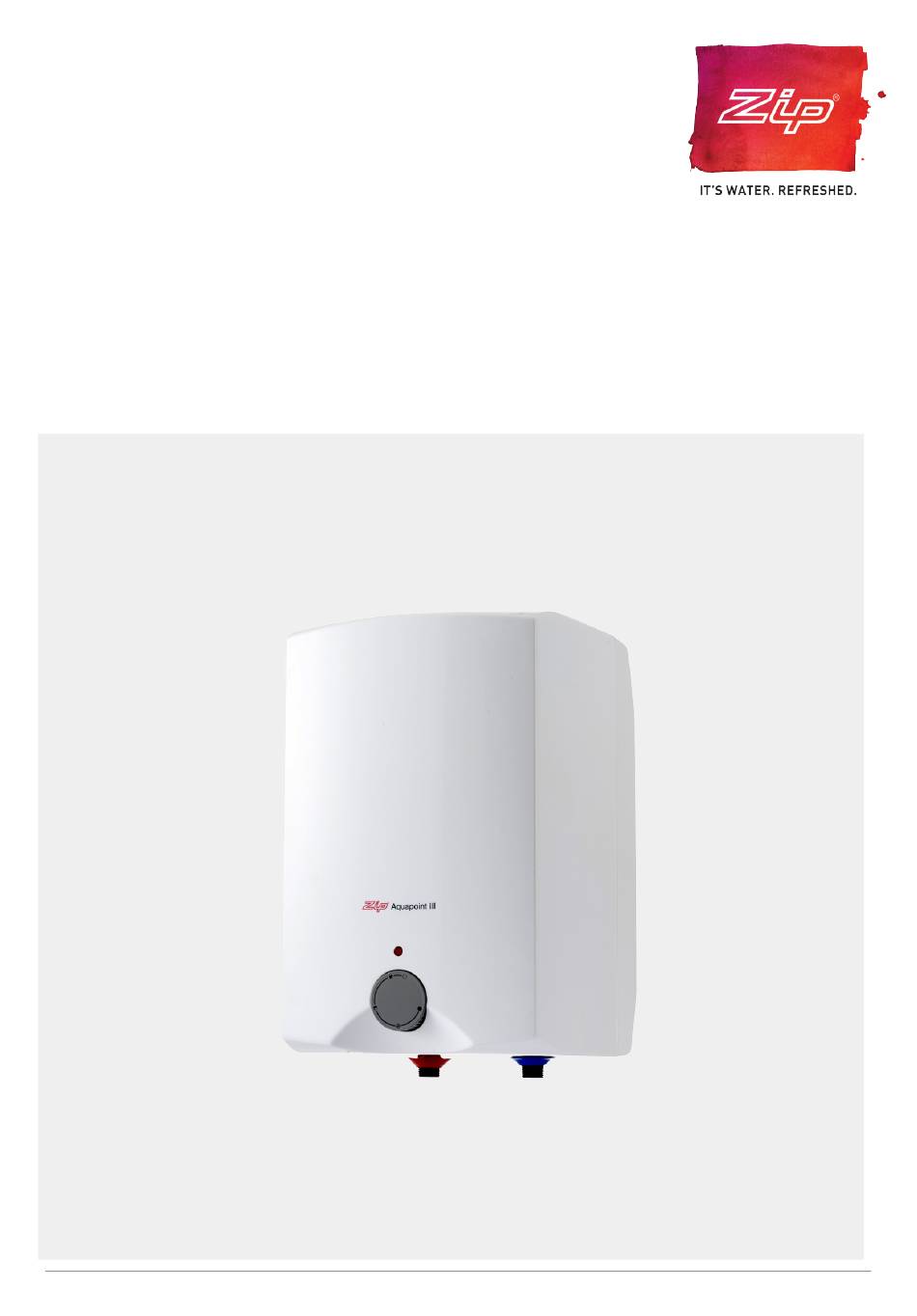

INSTALLATION INSTRUCTIONS & USER MANUAL
ZIP

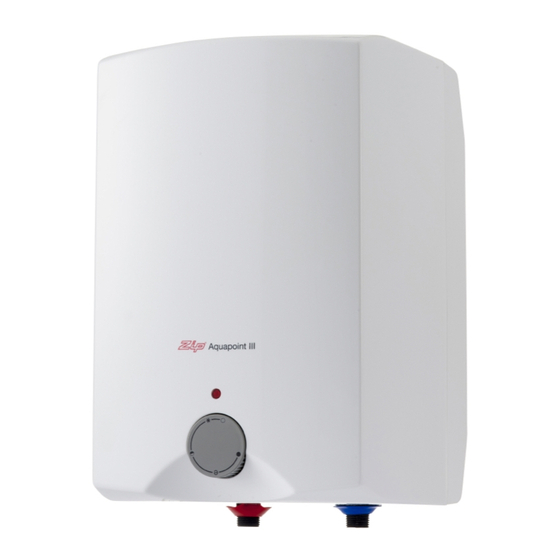

AQUAPOINT III
Direct unvented water heaters.
MODEL NUMBER:
AP3/05 - AP3/15, AP3/05/OB - AP3/15/OB
INSTALLATION INSTRUCTIONS & USER MANUAL
210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB)
TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zip AQUAPOINT III AP3/05
Summary of Contents for Zip AQUAPOINT III AP3/05
- Page 1 INSTALLATION INSTRUCTIONS & USER MANUAL AQUAPOINT III Direct unvented water heaters. MODEL NUMBER: AP3/05 - AP3/15, AP3/05/OB - AP3/15/OB INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK...
-
Page 2: Table Of Contents
Installation must only be undertaken by a competent person, familiar with unvented electric water heaters. The Zip Aquapoint III must be installed in accordance with these instructions and all current legislation, codes of practice and regulations governing the installation of unvented hot water cylinders in force at the time of installation . -
Page 3: General Product Description
GENERAL PRODUCT DESCRIPTION These instructions will guide you through the installation, maintenance and use of the Zip Aquapoint III, however, if you require any further information please call Zip customer service on 0345 6 005 005. • The Zip Aquapoint III is an unvented water heater designed for connection directly to incoming mains water supply and can serve one or more outlets using conventional taps. -
Page 4: Technical Data
(2) Temperature control ‘e’ setting corresponds to approx. 41°C for models AP3/05/0B, AP3/05 or 35°C for models AP3/10/OB, AP3/10, AP3/15/OB, AP3/15. Dimensions Fixing Dimensions Model centres (mm) (mm) AP3/05(OB) AP3/10 (OB) AP3/15 (OB) INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK... -
Page 5: Safety Information
• Temperatures in excess of approximately 43°C are perceived as hot, especially by children, and may cause a feeling of burning. INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK... -
Page 6: Cautions
The Aquapoint III is intended for connection to mains supply only. In any other case please contact Zip on 0345 6 005 005 for advice. • Zip Water UK cannot be held liable for any damages caused by failure to observe these instructions. INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK... -
Page 7: Spare Parts
Control knob with spring AQ0338 Heating flange AQ0345 Anode gasket AQ0346 Insulating bush EXP0921 Expansion relief valve (not shown) 6&7 INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK... -
Page 8: Pack Contents And Accessories
Expansion vessel and check valve. Combined pressure reducer and line strainer. Thermostatic blending valve complete with 2 check valves. INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK... -
Page 9: Installation
IEE regulations and any Local Authority requirements. • The Zip Aquapoint III is designed for connection direct to the incoming mains water supply and accommodation must be made for the expanded water that will occur with each heating cycle. Regulations permit expanded hot water to be accommodated within the supply pipe work provided that no check valve, stop valve with loose jumper or other fitting can prevent reverse flow. -
Page 10: Positioning
This is particularly relevant when the heater is located in a roof space, cupboard or any concealed location. For guidance please call Zip Customer Service on 0345 6 005 005. Wall Mounting Fig. -
Page 11: Plumbing And Safety Control Arrangement
• Drain valves should be fitted in both hot and cold water lines. INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK... -
Page 12: Plumbing Installation Diagram
VALVE TO BE DRAINED VIA TUNDISH (optional, not supplied). Zip recommend expansion vessels to be installed in line with the current HSE guidelines. Expansion vessels should be installed, in cool areas on cold flowing pipes, mounted as close to the incoming water supply to the water heater as possible, mounted... -
Page 13: Electrical Installation
230V AC supply only, this appliance must be earthed The Zip Aquapoint III is pre-wired with a length of 3 core cable suitable for connection to a mains 230V AC supply. The cable is to be wired to a double pole fused spur, with a minimum break rating of 13 amps. -
Page 14: Commissioning & Operation
C - 35°C B - 45°C A - 55°C - 75°C • Replace cover ‘2’. INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK... -
Page 15: Maintenance
MAINTENANCE Precautions • The Zip Aquapoint III is an unvented electric water heater and only a competent person (electrician or plumber), familiar with unvented systems, should carry out any servicing and maintenance work on this unit. • DO NOT Remove the cover whilst the unit is connected to the electrical supply. -
Page 16: Schedule
Disconnect the inlet and outlet connections on the heater. • Remove the heater. • Drain the unit through the hot water supply connection INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK... -
Page 17: Fault Finding
Faulty element. Check and replace as necessary. Thermostat failure. Check and replace as necessary. INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK... -
Page 18: End Of Life Disposal
In order to preserve our environment we ask that you dispose of this product correctly. Please contact Zip Customer Service for advice on 0345 6 005 005. INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK... -
Page 19: Warranty
Furthermore, this warranty does not displace any statutory warranty, but, to the extent to which Zip is entitled to do so, the liability of Zip under any statutory warranty will be limited at Zip’s option to the replacement of the appliance or supply of equivalent appliance, the payment of the cost of replacing the appliance or acquiring an equivalent appliance, or the payment of the cost of having the appliance repaired or the repair of the appliance. -
Page 20: Contact Details
Zip Water UK 14 Bertie Ward Way, Dereham, Norfolk NR19 1TE 0345 6 005 005 sales@zipindustries.co.uk www.zipwater.co.uk INSTALLATION INSTRUCTIONS & USER MANUAL TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK 210005 V2.00 AUG 2017 - ZIP APIII/5-15(OB) WWW.ZIPWATER.CO.UK...
