Zip Tudor
Single point open outlet (vented) water heaters
Above-Sink Tudor
(No tapware included)
Under-Sink Tudor
*
Accessory Tapware as indicated sold separately.
21051

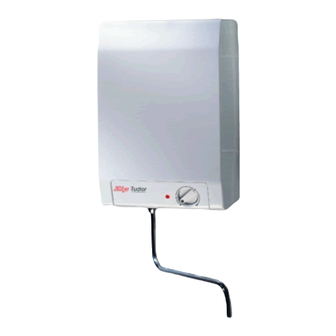

Zip Tudor 5 Litre over-sink water heater
21052
Zip Tudor 5 Litre under-sink water heater
21101
Zip Tudor 10 Litre over-sink water heater
21102
Zip Tudor 10 Litre under-sink water heater
99032
Telescopic Spout accessory for 21051 / 21101 (320mm-720mm)
99076
Mono vented mixer tap for 21052 / 21102
99075
Solo vented mixer tap for 21052 / 21102
99051
Hero vented mixer tap for 21052 / 21102
Page 1
Installation & Operating Instructions
Section Heading
Zip Tudor - Installation & Operating Instructions - 81333 - February 2010 V2

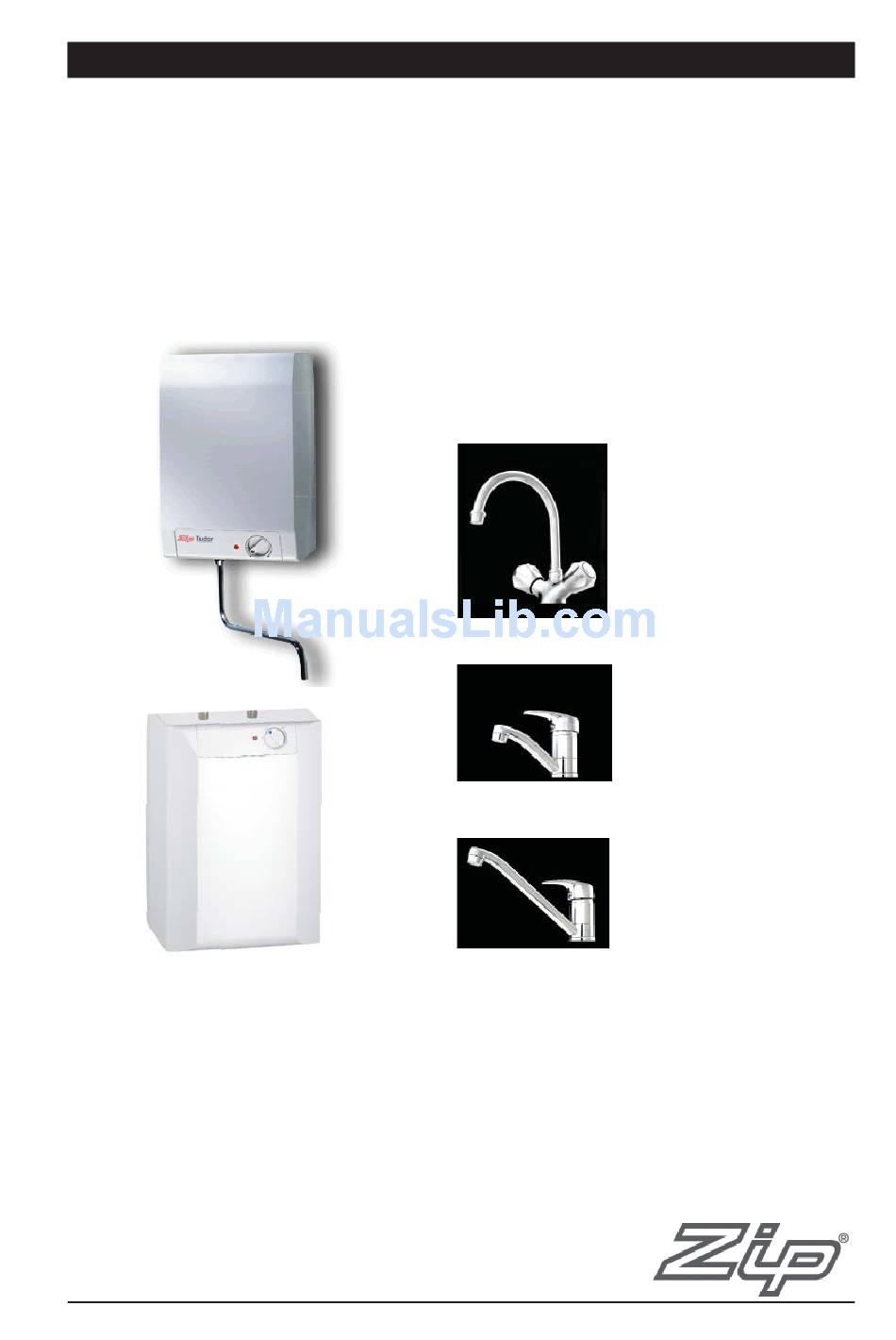

Accessory Tapware for
Under-Sink Tudors.
Mono*
Solo*
Hero*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zip Tudor
Summary of Contents for Zip Tudor
- Page 1 Mono vented mixer tap for 21052 / 21102 99075 Solo vented mixer tap for 21052 / 21102 99051 Hero vented mixer tap for 21052 / 21102 Page 1 Zip Tudor - Installation & Operating Instructions - 81333 - February 2010 V2...
-
Page 2: Read These Warnings First
Children should be supervised to ensure they do not play with the heater. If the power supply cord is damaged it must be replaced by a Zip Service Provider or a qualified electrician. -
Page 3: Installation Procedure
NOTE: Failure to correctly fit the Restrictaflow valve (provided) will void the warranty Step One - Tapware Note: Instructions for correct assembly and installation of Tudor tapware is included in the tapware box. Pay close attention to these instructions. Over-sink models must be installed with an inlet valve to control the flow from the water supply to the heater. - Page 4 On under-sink models, the inlet and outlet are located on the top of the heater. Five Litre over-sink 3.5 All Zip Tudor water connections are via 15 mm compression fittings and must be made strictly as shown in the diagrams. Five Litre under-sink 3.5...
- Page 5 Isolation Valve (not supplied) Restrictaflow see page 4 Tudor Heater Step Three Step Four Fasten heater to wall Connecting see page 3 see Page 4. Zip Tudor - Installation & Operating Instructions - 81333 - February 2010 V2 Page 5...
-
Page 6: Operating Procedures
Operating Procedures Control Panel Water Temperature Zip Tudor water heaters are fully automatic, and may be left switched ON under the control of the variable thermostat. Nominal operating temperature can be varied from about 30°C to about 80°C. Temperature should not be set to less than 60°C without due regard to regulations governing the storage temperature of hot water. -
Page 7: Service Procedures
In order to help preserve our environment we ask that you dispose of this product correctly. Please contact your local city council for collection centre details Zip Tudor - Installation & Operating Instructions - 81333 - February 2010 V2 Page 7... -
Page 8: Problem Solving
Furthermore, this warranty does not displace any statutory warranty, but, to the Website: www.zipheaters.com extent to which Zip is entitled to do so, the liability of Zip under any statutory Telephone: (02) 9796 3100 warranty will be limited at Zip’s option to the replacement of the appliance...
