Zip VP103 Instructions Manual
Varipoint ii
Hide thumbs
Also See for VP103:
- Installation, maintenance & user instructions (14 pages) ,
- Installation instructions & user manual (20 pages)
Related Manuals for Zip VP103
Summary of Contents for Zip VP103
-
Page 1: Table Of Contents
Contents Specification Special notices Dimensions Installation Requirements Positioning Plumbing Electrical Commissioning 10-11 Operation Precautions 11-12 Maintenance Schedule Fault Finding De-Install Spare Parts Zip Varipoint II Installation, Maintenance and User Instructions - June 2004... -
Page 2: Specification
Safety temperature control knob. Approvals: CE endorsed - WRAS approved. Models: VP103 - 10 ltr overbasin. VP153 - 15 ltr overbasin. VP103UB - 10 ltr underbasin VP153UB - 15 ltr underbasin Zip Varipoint II Installation, Maintenance and User Instructions - June 2004... -
Page 3: Special Notices

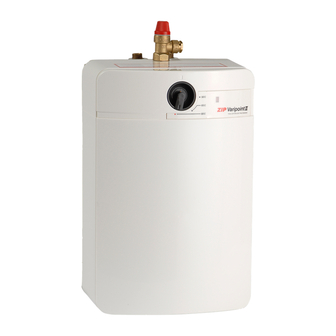

Special notices These instructions should guide you through the fitting of the Zip Varipoint II, however if you encounter a problem, just call 0870 608 8888 and ask for Service Helpdesk. I The Zip Varipoint is an unvented water heater designed for connection directly to the incoming mains water supply and can serve one or more outlets using conventional taps. -
Page 4: Dimensions
Choose from 4 models Model Over or Capacity Dimensions (mm) Weight (kg) Under Basin (litres) Empty Full VP103 Over 16.5 VP103UB Under 16.5 VP153 Over 22.5 VP153UB Under 22.5 Zip Varipoint II Installation, Maintenance and User Instructions - June 2004... -
Page 5: Installation
See diagrams 2 and 3. The 6 bar expansion relief valve must be fitted on the cold water supply. If required, a T&P valve ( Zip Accessory AQ1) may be fitted to the boss provided and must be installed in accordance to manufacturers instructions. - Page 6 (Using pack AQ2 and AQ3 expansion vessel, check valve and pressure reducing valve). Pressure Service Hot water Expansion reducing outlet relief valve valve valve Check Cold water To drain valve supply Expansion vessel Zip Varipoint II Installation, Maintenance and User Instructions - June 2004...
-
Page 7: Positioning
Flush all pipework before making the final connections to the valves, accessories and the heater. Zip Varipoint II Installation, Maintenance and User Instructions - June 2004... -
Page 8: Electrical
Switch off the main electricity supply before carrying out any work involving a live circuit or access to components that may be live. The Zip Varipoint is pre-wired with a length of 3-core cable suitable for connection to a mains 240v supply. Connection must be made to a double-pole isolating switch on a dedicated circuit or a double pole switched spur. -
Page 9: Operation
(45, 60 or 75°C). • Refit the temperature selector onto the spindle. (The temperature cannot be set to a value higher than that fixed on the selector). Zip Varipoint II Installation, Maintenance and User Instructions - June 2004... - Page 10 The Zip Varipoint is an unvented electric water heater and a competent installer, familiar with unvented systems, should carry out all servicing and maintenance. Do not remove the cover whilst the unit is connected to the electrical supply. The over temperature cut-out is located beneath the housing cover.
-
Page 11: Maintenance
Close the mains water supply isolating valve. Disconnect the inlet and outlet water connections at the top of the unit. Remove the heater. Drain the unit through the hot water supply connection. Zip Varipoint II Installation, Maintenance and User Instructions - June 2004... -
Page 12: Spare Parts
VP0317 Element Gasket VP0322 Wall Fixing Bracket Zip Varipoint II Underbasin Item Part No. Description VP0302 Element 2.2kW VP0303 Thermostat VP0304 Resettable Cut-Out VP0317 Element Gasket VP0322 Wall Fixing Bracket Zip Varipoint II Installation, Maintenance and User Instructions - June 2004... - Page 13 (5) calendar years or any component fail within two (2) of installation, that part will be repaired or replaced by Zip Heaters (UK) Ltd free of charge, except as set out below, provided that the failure is not due to accident, misuse, abuse, condition of the water, frost or failure to follow installation instructions or service requirements.
