Summary of Contents for Zip Tudor T4UB5

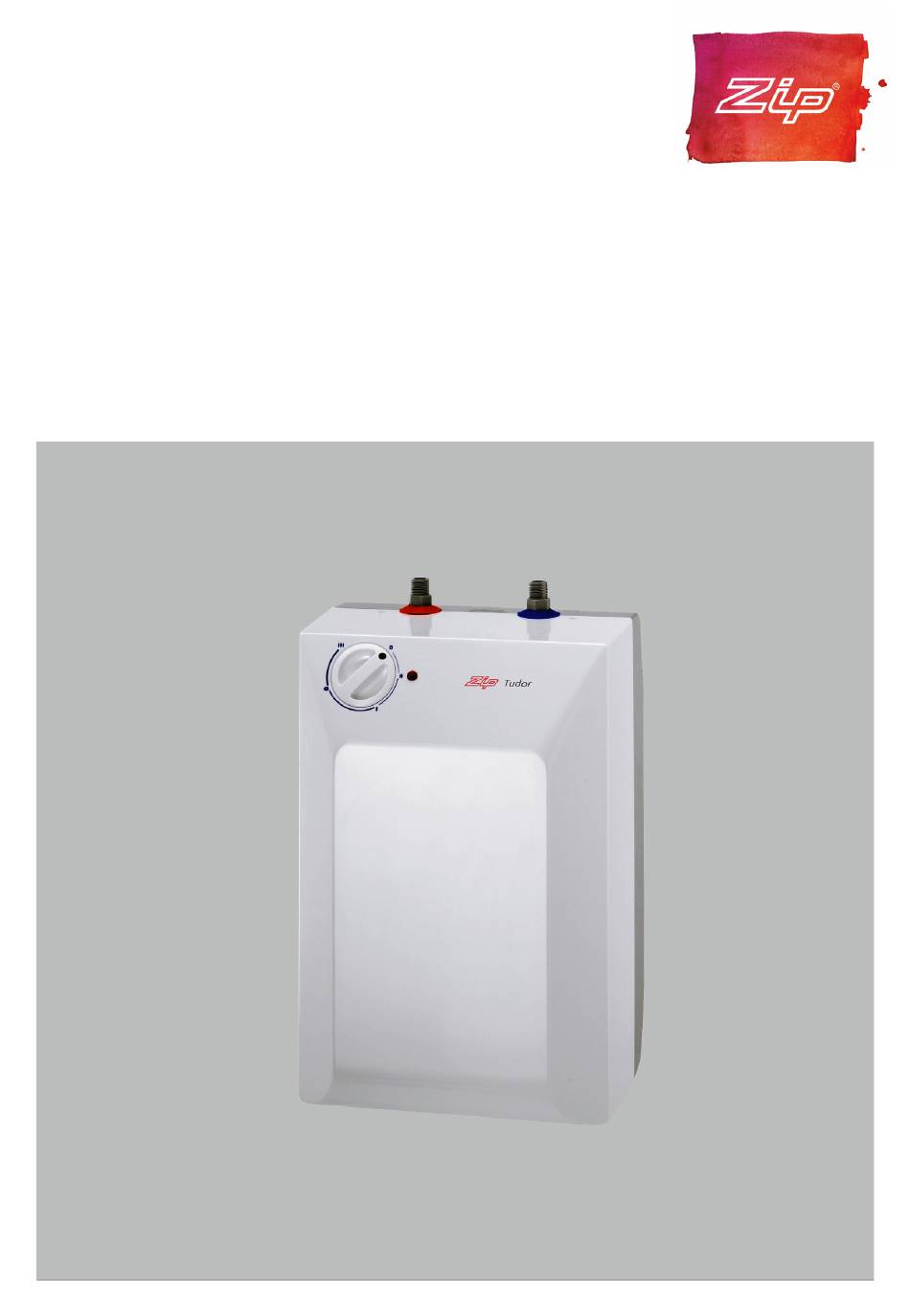

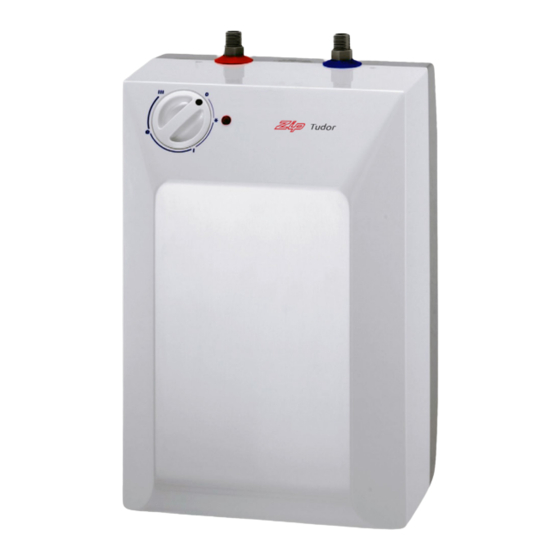

- Page 1 Installation instructions & user manual Tudor Point of use water heaters. Model number: T4UB5, T4OB5 T4OB10, T4UB10 Installation instructions & user manual Technical support T210008 v3.00 May 2019 - Tudor Tel: 0345 6 005 005 email: service@zipindustries.co.uk www.zipwater.co.uk...
-
Page 2: Table Of Contents
Table of contents Safety information WARNINGS CAUTIONS General product description Approvals Technical data Dimensions Spare parts Pack contents and accessories Installation Requirements Wall mounting Over-basin installation Under-basin installation Electrical installation Cable installation/replacement Safety cut out Commissioning & operation Maintenance Fault finding End of life disposal Warranty Contact details... -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. - Page 4 SAFETY INFORMATION • The cross sectional area of the connection cable must be appropriate for the power rating and location of the appliance. See Technical data, page 8. • The connecting cable must be adequately secured. • This appliance must be earthed at all times. •...
-
Page 5: Cautions
In any other case please contact Zip on 0345 6 005 005 for advice. • Zip Water UK cannot be held liable for any damages caused by failure to observe these instructions. • It is recommended that an HE45004 Water Block is fitted in the water supply line to minimise the potential damage in the event of any leakage. -
Page 6: General Product Description
The stored hot water is delivered from an open outlet spout (supplied with over- basin models) or a Zip approved open outlet vented tap. This type of fitting is permanently open to the atmosphere which allows the expansion of water, (that occurs during the heating cycle), to be safely discharged. -
Page 7: Approvals
Approvals The Zip Tudor models are approved to the LVD & EMC directives and are CE endorsed. The Zip Tudor models have been examined, tested and found when correctly fitted to comply with the requirements of the United Kingdom Water Regulations / Byelaws (Scotland). -
Page 8: Technical Data
(2) Temperature control ‘e’ setting corresponds to approx 41°C for models T4OB5, T4UB5 or 35 °C for models T4OB10, T4UB10 (3) For higher supply pressures a Zip AQ3 pressure reducing valve is recommended. Installation instructions & user manual Technical support T210008 v3.00 May 2019 - Tudor... -
Page 9: Dimensions
T4UB5 All dimensions in mm Note Over-basin and under-basin models are NOT interchangeable. For under-basin applications use models designated ‘UB’ and use only Zip approved vented tap accessories. Installation instructions & user manual Technical support T210008 v3.00 May 2019 - Tudor... -
Page 10: Spare Parts
Spare parts Item Description Part no. Heating element 5 &10L 2kW 95110 Element ‘O’ ring CT0116/3 Re-settable cut-out for Tudor CT0121/4 Neon light indicator CT0129/4 Retaining nut CT0115/4 Outlet Spout CT0137 Installation instructions & user manual Technical support T210008 v3.00 May 2019 - Tudor Tel: 0345 6 005 005 email: service@zipindustries.co.uk www.zipwater.co.uk... -
Page 11: Pack Contents And Accessories
Item Wall Bracket Control Valve Outlet spout *(except UB models) Accessories Only Zip approved open outlet accessories should be used, the following are available. HE45005 Water Block (for both over-basin and under-basin models). Over-basin Telescopic Spout 350-600mm. Under-basin Monobloc Mixer Tap. -
Page 12: Installation
The electrical installation including earthing and cross bonding should comply with current IEE regulations and any Local Authority requirements. • Zip Tudor water heaters must be installed according to the specification on the rating plate and the technical specifications (see page 8). •... -
Page 13: Over-Basin Installation
Installation Over-basin Installation • The inlet control valve supplied incorporates compression fittings suitable for fitting between 15mm copper piping (water supply) and the inlet connection (coloured blue) situated on the water heater. • Fit the control valve to the cold water supply ensuring that the water will flow in the direction of WATER... -
Page 14: Electrical Installation
Electrical installation WARNING Switch off the mains electrical supply before carrying out any work involving a live circuit. 230V AC supply only, this appliance must be earthed. Before starting installation the WARNINGS page 3, and CAUTIONS page 5, should be read and fully understood. It is recommended that the electrical installation is carried out by a qualified electrician. -
Page 15: Commissioning & Operation
Commissioning & operation Do not switch on the heater until it is filled with water • Open the inlet control valve or tap to allow the tank to fill with water, the tank will be full when water begins to run continuously from the spout or tap. •... -
Page 16: Maintenance
Repairs All service work should be performed by an authorized Zip service engineer – for details of the full range of services available call Zip Service on 0345 6 005 005. Installation instructions & user manual Technical support T210008 v3.00 May 2019 - Tudor... -
Page 17: Fault Finding
Reset thermostat Water is too hot Faulty thermostat Replace thermostat Please contact Zip for advice on 0345 6 005 005. Installation instructions & user manual Technical support T210008 v3.00 May 2019 - Tudor Tel: 0345 6 005 005 email: service@zipindustries.co.uk www.zipwater.co.uk... -
Page 18: End Of Life Disposal
In order to preserve our environment we ask that you dispose of this product correctly. Please contact Zip for advice on 0345 6 005 005. Installation instructions & user manual Technical support T210008 v3.00 May 2019 - Tudor... -
Page 19: Warranty
Subject to the exclusions set out below and in clause 5 of the terms and conditions, faulty parts and products will be replaced or repaired free of charge by Zip, its distributor or service provider, where such faults arise during the applicable warranty period. -
Page 20: Contact Details
Zip Water UK 14 Bertie Ward Way, Dereham, Norfolk NR19 1TE 0345 6 005 005 sales@zipindustries.co.uk www.zipwater.co.uk Installation instructions & user manual Technical support T210008 v3.00 May 2019 - Tudor Tel: 0345 6 005 005 email: service@zipindustries.co.uk www.zipwater.co.uk...
