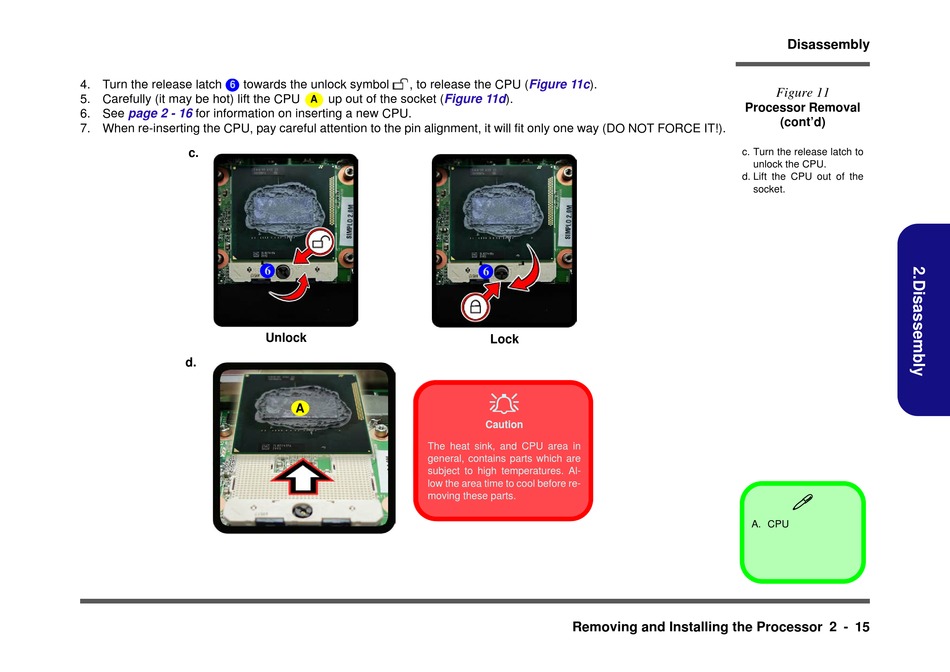

EUROCOM P150HM Series Service Manual page 39

4. Turn the release latch towards the unlock symbol
6
5. Carefully (it may be hot) lift the CPU
6. See page 2 - 16 for information on inserting a new CPU.
7. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
c.
d.
, to release the CPU
up out of the socket (Figure
A
6
Unlock
A
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Al-
low the area time to cool before re-
moving these parts.
(Figure 11c).
11d).
6
Lock

Caution
Removing and Installing the Processor 2 - 15
Disassembly
Figure 11
Processor Removal
(cont'd)
c. Turn the release latch to
unlock the CPU.
d. Lift the CPU out of the
socket.

A. CPU
