Installation Site Requirements
●
The device can be used only indoors.
●
The device can be mounted to a truss or other rigging structure.
●
The minimum distance to other objects must be bigger than 0,5 m.
●
The minimum distance between the light output and the illuminated surface must be bigger than
0,5 m.
●
The maximum ambient temperature t
●
The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.
Rigging
The device can be positioned on a flat surface or mounted to a truss or other rigging structure. Make sure
that all loads are within the pre-determined limits of the supporting structure.
CAUTION
Restrict the access under the work area during rigging and/or derigging.
To mount the device, follow the steps below:

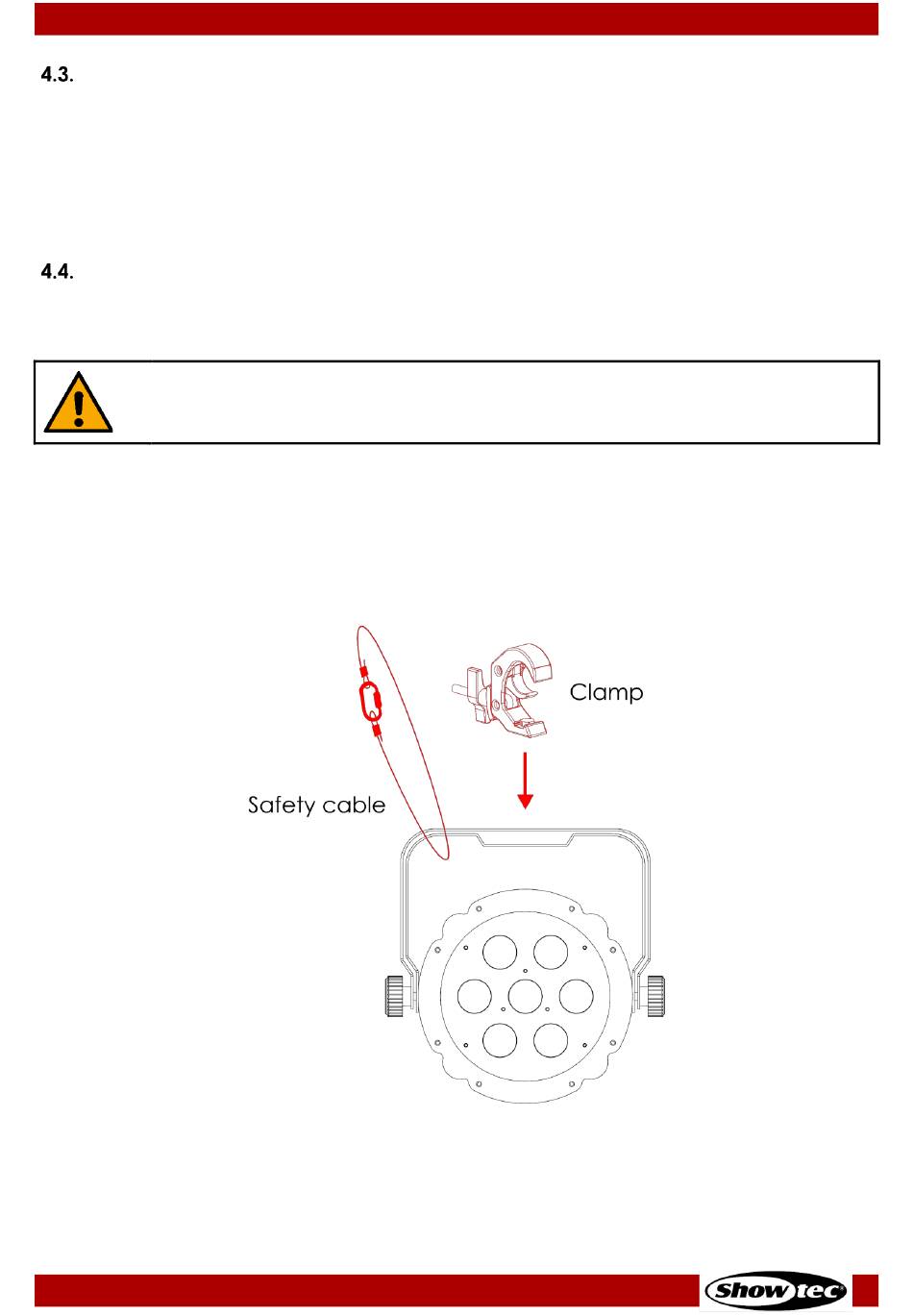

01) Use a clamp to attach the device to the supporting structure, as shown in Fig. 07. Make sure that the
device cannot move freely.
02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the
secondary suspension can hold 10 times the weight of the device. If possible, the secondary
suspension should be attached to a supporting structure independent of the primary suspension. Put
the safety cable around the mounting bracket (03), as shown in Fig. 07.
Product code: 42584
= 40 °C must never be exceeded.
a
12
Fig. 07
