Compact Par 7 Q4

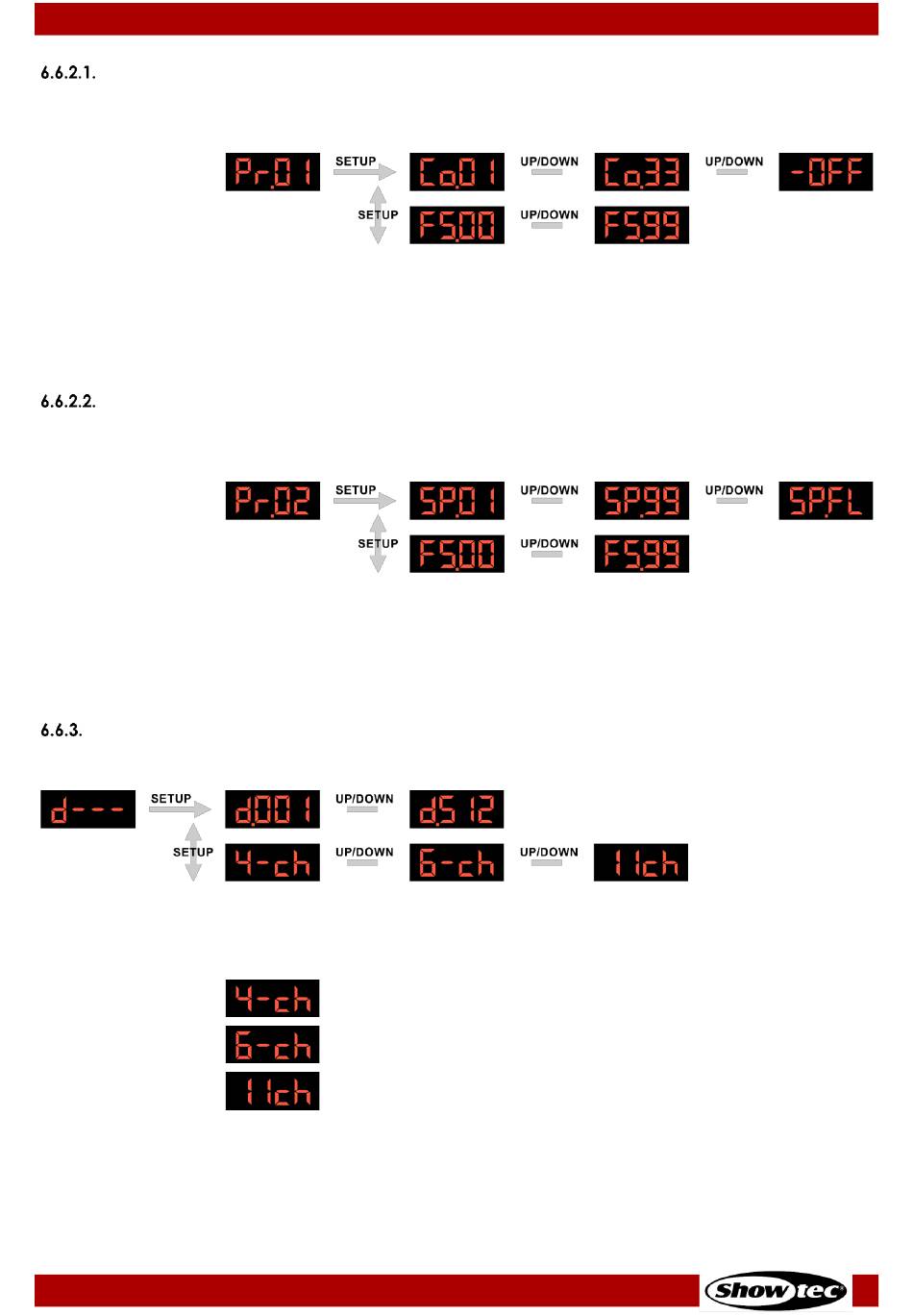

Color Presets
If you have selected Program 01, you can further select one of the 33 preset colors and add strobe
effect.
01) Press the SETUP button to enable the color presets selection.
02) Press the UP/DOWN buttons to select one of the 33 color presets or OFF. The device will output the
selected color.
03) Press the SETUP button to enable the strobe frequency adjustment.
04) Press the UP/DOWN buttons to adjust the frequency of the strobe effect. The adjustment range is 00–
99, from low to high frequency.
Built-in Chases
If you have selected one of the Programs 02–16, you can additionally adjust the speed and add strobe
effect.
01) Press the SETUP button to enable the speed adjustment.
02) Press the UP/DOWN buttons to adjust the speed of the built-in chase. The selection range is 01–99 and
SP.FL, from low to high speed.
03) Press the SETUP button to enable the strobe frequency adjustment.
04) Press the UP/DOWN buttons to adjust the frequency of the strobe effect. The adjustment range is 00–
99, from low to high frequency.
DMX Configuration
In this menu you can configure the DMX settings of the device.
01) Press the UP/DOWN buttons to select the DMX starting address of the device. The selection range is
001–512.
02) Press the SETUP button to enable the DMX channel mode selection.
03) Press the UP/DOWN buttons to select the DMX channel mode. There are 3 options available:
See 6.7. DMX Channels on pages 24–25 for complete description of the DMX channels and values.
Product code: 42584
4-channel mode
6-channel mode
11-channel mode
21
