- Page 1 USER MANUAL ENGLISH Pixel Bubble 75 Set Product code: 44570 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Pixel Bubble 75 Set Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Pixel Bubble 75 Set Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................5 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................6 Safety .................................. - Page 4 Pixel Bubble 75 Set Set IP Address ............................30 Set Net Mask ............................30 Control Modes ............................31 Set String ...............................31 DMX ...............................32 Art-Net ..............................32 Kling-Net ...............................33 Master/Slave ............................33 Auto Mode ............................34 Manual Mode .............................34 Advanced Settings .............................35 Signal Hold ............................35 Pixel Reverse ............................35 Screen Timeout ...........................36...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Pixel Bubble 75 Set ● Powercon power cable (1,5 m) ● User manual Fig. -
Page 6: Text Conventions
Pixel Bubble 75 Set Text Conventions Throughout the user manual the following text conventions are used: ● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons” ● References: References to chapters and parts of the device are in bold lettering, for example: “Refer to 2. -
Page 7: Symbols On The Information Label
Pixel Bubble 75 Set Symbols on the Information Label This product is provided with an information label. The information label is located on the backside of the device. The information label contains the following symbols: This device shall not be treated as household waste. -
Page 8: Safety
Pixel Bubble 75 Set Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 9 Pixel Bubble 75 Set WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 10: Requirements For The User
Pixel Bubble 75 Set ● The safety devices are not damaged. ● There are no deformations on housings, fixations and installation points. ● The power cables are not damaged and do not show any material fatigue. Attention Do not expose the device to conditions that exceed the rated IP class conditions. -
Page 11: Description Of The Device

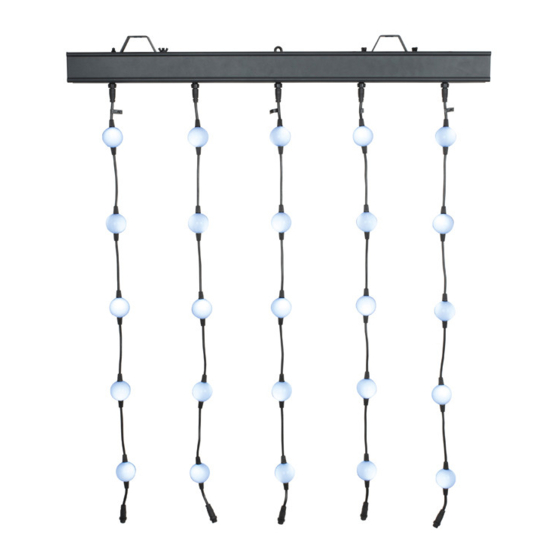

Description of the Device The Showtec Pixel Bubble 75 Set is a matrix of 75x 50 mm (2") white frosted RGB balls with Individual Pixel Control, suitable for creating a nice indoor visual effect. The set includes a 5-output PSU and 15 daisy- chainable 1-m (3.28 ft) strings, each equipped with 5 multi-colour LED balls. -
Page 12: Product Specifications
Pixel Bubble 75 Set Product Specifications Model: Pixel Bubble 75 Set Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 121 W Fuse T3,5A/250V Physical: Dimensions: 1005 x 71 x 75 mm (LxWxH) excluding brackets Weight: 3,12 kg excl. balls, 6,3 kg incl. 5 rows of balls... -
Page 13: Dimensions
Pixel Bubble 75 Set Dimensions Fig. 03 Product code: 44570... -
Page 14: Installation
Pixel Bubble 75 Set Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 15: Rigging
Pixel Bubble 75 Set Rigging The device can be mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. The device is delivered with 2 mounting brackets. -
Page 16: Connecting To Power Supply
Pixel Bubble 75 Set Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 17: Installation Of Multiple Led Strings
Pixel Bubble 75 Set Installation of multiple LED strings This device supports linking of multiple strings of balls. Signals can be relayed to another device via the connector. Note that the input and the output connectors have different designs: one type cannot be connected to the other. -
Page 18: Setup
Pixel Bubble 75 Set Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Pixel Bubble 75 is not connected to a controller or to other devices, it functions as a stand- alone device. -
Page 19: Dmx Cables
Pixel Bubble 75 Set DMX Cables Shielded twisted-pair cables with 3-pin/5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 20: Dmx Linking
Pixel Bubble 75 Set DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 3-pin/5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the first device. -
Page 21: Ethernet Connection
Pixel Bubble 75 Set Ethernet Connection Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Art-Net and Kling-Net Protocols Art-Net is a protocol that uses TCP/IP to transfer large amount of DMX-512 data over an Ethernet network. -
Page 22: Art-Net/Kling-Net Setup
Pixel Bubble 75 Set Art-Net/Kling-Net Setup The Pixel Bubble 75 has 2 RJ45 connectors. Either connector can be used as an input and as throughput. To connect multiple devices in an Art-Net/Kling-Net setup, follow the steps below: Use a CAT-5/CAT-5E/CAT-6 cable to connect the RJ45 connector of the computer/lighting controller to one of the RJ45 connectors of the first device. -
Page 23: Art-Net Settings
Pixel Bubble 75 Set Art-Net Settings To run your device using Art-Net protocol: Configure the network address of your computer/lighting controller in the correct range (IP 2.x.x.x, 10.x.x.x or 192.168.x.x and Subnet 255.0.0.0). To change the IP address of the device, refer to 6.6.2.1. -
Page 24: Universe Numbering
Pixel Bubble 75 Set Universe Numbering If you want to connect more than 5 devices on one data link and use them in 101-channel mode, you will need to address them on different universes. Set the DMX starting address of the first 5 devices. Follow the instructions in 5.3.5. DMX Addressing on page 19. -
Page 25: Connecting To A Network
Pixel Bubble 75 Set Connecting to a Network KlingNet settings 01) Install any KlingNet-based software on your PC (Windows or Mac), for example 50180 - Arkaos LED 02) Connect the LED strings to the Pixel Bubble. 03) Connect the power supply to the Pixel Bubble. -
Page 26: Software For Controlling
Pixel Bubble 75 Set Software for controlling In combination with Arkaos or DMT Software, you are able to play videos over the Pixel Bubble (pixelmapping). You only have to connect all the Pixel Bubbles and run your software. 50180 - Arkaos LED Master An all-in-one solution to run LED light shows for everyone. -
Page 27: Operation
Pixel Bubble 75 Set Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as an indoor LED ball matrix. It is not suitable for households and for general lighting. -
Page 28: Control Panel
Pixel Bubble 75 Set Control Panel A) OLED display UP button C) DOWN button D) ENTER button MENU button Fig. 11 ● Use the MENU button to exit the current submenu, to return to the main menu and to return to the start screen. -
Page 29: Menu Overview
Pixel Bubble 75 Set Menu Overview Product code: 44570... -
Page 30: Main Menu Options
Pixel Bubble 75 Set Main Menu Options The main menu has the following options: DMX address Network Settings Set String / DMX / Art-Net / Kling-Net / Slave / Auto / Manual Signal Hold / Pixel Reverse / Screen Timeout / Screen Brightness / Software Version / Invert Display / Factory Reset 01) Press the UP/DOWN buttons to navigate through the main menu. -
Page 31: Network Settings
Pixel Bubble 75 Set Network Settings With this menu you can set the network settings. 01) While in main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to confirm. The display will show: Set Manual/DHCP 01) Press the UP/DOWN buttons to select MANUAL/DHCP. -
Page 32: Control Modes
Pixel Bubble 75 Set Control Modes 01) While in main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to select one of the 7 modes: ●... -
Page 33: Dmx
Pixel Bubble 75 Set In this menu you can set the desired DMX channel mode. 01) When the display shows DMX, press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to select one of the 2 channel modes: ●... -
Page 34: Kling-Net
Pixel Bubble 75 Set Kling-Net In this menu you can set the Kling-Net settings. 01) When the display shows KLINGNET, press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to select the ENABLE/DISABLE field. Press the ENTER button to confirm. -
Page 35: Auto Mode
Pixel Bubble 75 Set Auto Mode In this menu you can run the desired built-in programs. 01) When the display shows AUTO, press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to select PROGRAM and press the ENTER button to confirm. -
Page 36: Advanced Settings
Pixel Bubble 75 Set Advanced Settings 01) While in main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to select one of the 7 modes: ●... -
Page 37: Screen Timeout
Pixel Bubble 75 Set Screen Timeout In this menu you can set the amount of time after which the display will turn off, when no button is pressed. 01) Press the UP/DOWN buttons to select one of the 3 options: 30 seconds/60 seconds/NEVER. -
Page 38: Dmx Channels
Pixel Bubble 75 Set DMX Channels 7 Channels 7 CH Function Value Setting Master Dimmer 000–255 From low to high intensity (0–100 %) Strobe 000–255 From low to high frequency 000–255 From low to high intensity (0–100 %) Green 000–255 From low to high intensity (0–100 %) -
Page 39: Channels (1 Led String)
Pixel Bubble 75 Set 75 Channels (1 LED string) Note: In 75-channel mode, the numbers of LEDs progress vertically. See below: Color Color Color Color LED 1 LED 8 LED 15 LED 22 LED 1 Green 23 LED 8 Green... -
Page 40: 150 Channels (2 Led Strings)
Pixel Bubble 75 Set 150 Channels (2 LED strings) Note: In 150-channel mode, the numbers of LEDs progress vertically. See below: Product code: 44570... - Page 41 Pixel Bubble 75 Set Color Color Color Color LED 1 LED 15 LED 29 LED 43 LED 1 Green 44 LED 15 Green LED 29 Green 128 LED 43 Green LED 1 Blue LED 15 Blue LED 29 Blue LED 43...
-
Page 42: Troubleshooting
Pixel Bubble 75 Set Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 43: Maintenance
Pixel Bubble 75 Set Maintenance Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. -
Page 44: Corrective Maintenance
Pixel Bubble 75 Set Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 45: Deinstallation, Transportation And Storage
Pixel Bubble 75 Set Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 46 Pixel Bubble 75 Set Product code: 44570...
- Page 47 Pixel Bubble 75 Set Product code: 44570...
- Page 48 ©2022 Showtec...
