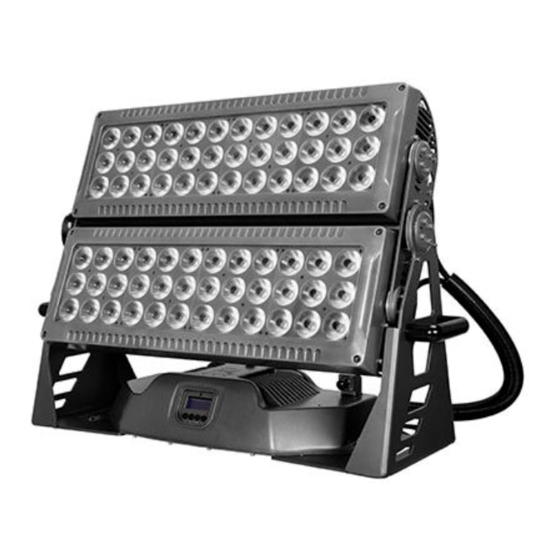

ARC LED 1572
PR-6262
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARC LED 1572 and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting ARC LED 1572

Summary of Contents for PR Lighting ARC LED 1572

  • Page 1 ARC LED 1572 PR-6262 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.

  • Page 2: Table Of Contents

    Any future technical change in the user manual won’t be with any further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Warning User Electrical Goggles Protective Flames High Manual shock Gloves Temperature ●...

  • Page 4: Instructions

    ●All power cords must conform to related safety and regulations. ●Do not switch on and off a projector constantly in very short intervals, otherwise the light source’s and other electrical parts’ life will be shortened . ●There are safety cord holes in either arm of a projector. In view of safety, please run the safety cord supplied through the safety cord holes for safety support.

  • Page 5: Installation

    ●TROUBLESHOOTING PROBLEM ACTION  Check the fuse on the power socket. The projector doesn’t switch on  Check the LED lamps. The LED lamps are on but the projector doesn’t  Make sure that the projector’s start address is right ...

  • Page 6: Setup And Configuration

    terminator as shown in the figure below. Output Input Output Input Terminator DMX512 Controller ● DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals.

  • Page 7: Operation Menu

    ● DMX START ADDRESS Each Projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller.
  • Page 8 color mode with RBGL 11CH Extended different menus) /11CH 4CH Short / 4CH 6CH Standard /6CH 10CH Extended /10CH 3CH Short / 3CH 5CH Standard /5CH 6CH Extended /6CH 1CH Short / 1CH 2CH Standard /2CH 3CH Extended /3CH Slave MasterSlave Master Loss of DMX...
  • Page 9 Cancel Defaults Factory 0-1000 English Language Chinese OffAfterDelay Display Mode On Always Invert TemperatureLED / xx.x C Ampere (Note： Some projectors do x.xx A not have the menu) Voltage xx.x V Stop Fan (Note：Some projectors do not have the menu) Error …...
  • Page 10 White Cancel PR 1 PR 2 PresetMemory … PR 16 Cancel UserMemory Dimmer 0-255 Strobe 0-255 Green Blue 0-255 Amber(White,Lime) StaticScen 1 (Note: different Run Mode colors with different menus) Green 0-255 EditMemory Blue White 0-255 Amber 0-255 White Fade Time 0．0-25．0s Hold Time 0．0-25．0s...

  • Page 11: Dmx Protocol

    6. DMX PROTOCOL DMX512 channel mode (RGBA/RGBW/RGBL) Standard Extended Short mode mode mode 0-255 Green 0-255 Blue 0-255 0-255 Amber(White,Lime) Dimmer 0-255 Dimmer L(16bit) 0-255 Strobe 6-255 CCT(color temperature) 1-255 1-255 Saturation 1-255 Macro 3-255 DMX512 channel mode (RGB) Standard Extended Short mode mode...

  • Page 12: Signs On The Lcd Display

    Dimmer 0-255 DimmerL (16bit) 0-255 Strobe 6-255 CCT (color temperature) 1-255 1-255 Saturation 1-255 Macro 3-255 DMX512 channel mode (W) Standard Extended Short mode mode mode Dimmer 0-255 DimmerL (16bit) 0-255 Strobe 6-255 7. SIGNS ON THE LCD DISPLAY D on DMX signal OK D flashing No DMX signal...
  • Page 13 180° vertical direction, manual adjustment BEAM ANGLE （1/2θ） Beam angle 14° （1/10θ） Field angle 37° X 57° CONTROL International standard DMX512 signal and 5-pin DMX 512 interface The number of DMX control channels varies based on different color mode There are short mode, standard mode and extended mode OTHER FUNCTIONS Fixture and lamp hours displayed Modular structure for easy maintenance...

  • Page 14: Component Order Codes

    SIZES BASE INSTALLATION 9.COMPONENT ORDER CODES NAME CODE NUMBER REMARKS SWITCHING POWER SUPPLY 192010215 MAIN BOARD 230061490 LED LAMP BOARD 230061488 HEAT CONDUCTING PAD 6290000019A 30069005...
  • Page 16 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 6320000097A...
