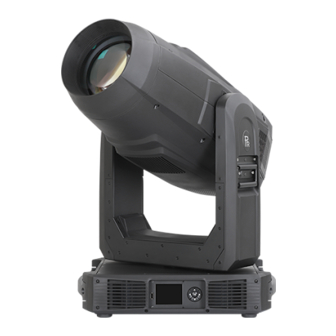

XRLED 2500-W Framing
PR-8157
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XRLED 2500-WFraming and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting XRLED 2500-WFraming

Summary of Contents for PR Lighting XRLED 2500-WFraming

  • Page 1 XRLED 2500-W Framing PR-8157 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    Any future technical changes are not subject to further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safetyand Warnings

    1. SAFETYAND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles User Electrical Protective High Warning Flames Manual shock Gloves Temperature ●...

  • Page 4: Instructions

    ●While being operated, the projector should not be under rains or in humidity. ●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other electrical parts’ life will be shortened . ●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord supplied through the safety cord holes for safety support.

  • Page 5: Appearance

    ●To avoid sunlight or other light penetrating into the head via the front lens, resulting in high temperature internally causing damages to the projector. Before power-off, please use Tilt channel to move the head and make it facing downward. ● Do not use alcohol or other organic solvent to clean the housing to avoid damage. ●Do not use any solvent with chemical elements to clean color filters or hot mirror.

  • Page 6: Installation

    4. INSTALLATION RIGGING ● During transportation, please lock the projector well; Before the use of projector please unlock the head. It’s forbidden to run the projector without unlock Pan and Tilt Note： 1. Distance between feet and top of the head 2.
  • Page 7 POWER CONNECTIONS ● Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off. The earth wire(yellow/green) must be connected to the ground.

  • Page 8: Setupand Configuration

    DMX TERMINATOR ● In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.
  • Page 9 ► to enter into menus. Launch the projector. Press key OK more than 3seconds to unlock the display. After the unlocking, push key After selecting the sign of DMX setting, push OK key or tap the screen directly and select DMX address at 2 level menus.

  • Page 10: Operation Menu

    6. OPERATION MENU 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL LEVEL 1-475（Short Mode） 1-471（Standard Mode） DMX Address 1-456（Extended Mode） Default IPAddress 2.X.X.X /10.X.X.X IP Address Custom IPAddress X.X.X.X Address SubNet Mask X.X.X.X ArtNet 0-255 ArtNet Universe sACN Universe 1-63999 Total Reset Really Reset? Confirm/ Cancel...
  • Page 11 Gamma Curve Gamma 2.0/2.2/2.4/2.6 Dimmer Settings 1200/2400/4800/10000/12000/150 LED Refresh Rate 00/20000/25000Hz Dimmer Speed Fast/Medium/Slow Speed Standard/Theatre Fan Settings Defaults Factory Restore Defaults? Confirm/ Cancel DMX channel Vlaue Strobe Dimmer Dimmer Fine CMYmacro Cyan Yellow Magenta Color Wheel Color wheel Fine XXX Iris Iris macro Fixed gobo wheel XXX...
  • Page 12 Driver Board 3 XX℃/F Blade Board XX℃/F Fan Board XX℃/F LED XX℃/F LED Sensor XX℃/F System= XXX Display Board Boot =XXX System= XXX Pan and Tilt Board Boot =XXX System= XXX Driver Board 1 Boot =XXX System= XXX Software Version Driver Board 2 Boot =XXX System= XXX...
  • Page 13 Framing Blade 1 left XXX Framing Blade 1 left Fine XXX Framing Blade 1 right XXX Framing Blade1 Right Fine XXX Framing Blade 2 left XXX Framing Blade 2 left Fine XXX Framing Blade 2 right XXX Framing Blade2 Right Fine XXX Framing Blade 3 left XXX Framing Blade 3 left Fine XXX Framing Blade 3 right XXX...
  • Page 14 Iris Iris fine Iris macro Fixed gobo wheel XXX Rota. Gobo wheel XXX Gobo Rota. Gobo Rota. Fine Framing Blade 1 left XXX Framing Blade 1 left Fine XXX Framing Blade 1 right XXX Framing Blade1 Right Fine XXX Framing Blade 2 left XXX Framing Blade 2 left Fine XXX Framing Blade 2 right XXX Framing Blade2 Right Fine XXX...

  • Page 15: Dmx Protocol

    Color wheel Fine XXX Iris Iris fine Iris macro Fixed gobo wheel XXX Rota. Gobo wheel XXX Gobo Rota. Gobo Rota. Fine Framing Blade 1 left XXX Framing Blade 1 left Fine XXX Framing Blade 1 right XXX Framing Blade1 Right Fine XXX Framing Blade 2 left XXX Framing Blade 2 left Fine XXX Framing Blade 2 right XXX...
  • Page 16 Dimmer Close Non-linear dimmer from dark to light (0-100%) Dimmer Fine Dimmer in 16 bit CYM Macro The following functions will disable CMY ,CTO No Function Color Temperature 2700K Color Temperature 3000K Color Temperature 3500K Color Temperature 4000K Color Temperature 4500K Color Temperature 5000K Color Temperature 5700K Colour Macro 1...
  • Page 17 Colour Macro 29 Colour Macro 30 Colour Macro 31 Colour Macro 32 Colour Macro 33 Colour Macro 34 Colour Macro 35 Colour Macro 36 Colour Macro 37 Colour Macro 38 Colour Macro39 Colour Macro 40 Colour Macro 41 Colour Macro 42 Colour Macro 43 Colour Macro 44 Colour Macro 45...
  • Page 18 Colour Macro 72 Colour Macro 73 Colour Macro 74 Colour Macro 75 Colour Macro 76 Colour Macro 77 Colour Macro 78 Colour Macro 79 Colour Macro 80 Colour Macro 81 Colour Macro 82 Colour Macro 83 Colour Macro 84 Colour Macro 85 Colour Macro 86 Colour Macro 87 Colour Macro 88...
  • Page 19 Color 2(Green) Color 2(Green)/Color 3(Blue) Color 3(Blue) Color 3(Blue)/ Color 4(Orange) Color 4(Orange) Color 4(Orange) /Color 5(Pink) Color 5(Pink) Color 5（Pink）/Color 6（Light Cyan） Color 6(Light Cyan) Color6 (Light Cyan)/ Open Open Clockwise rainbow effect rotation speed from slow to fast Anti-clockwise rainbow effect rotation speed from slow to fast Color Wheel Fine Color Continual positioning in 16 Bit precision...
  • Page 20 Gobo3 shake from slow to fast Gobo4 shake from slow to fast Gobo5 shake from slow to fast Gobo6 shake from slow to fast Gobo7 shake from slow to fast Rotating gobo wheel Open Gobo1 Gobo2 Gobo3 Gobo4 Gobo5 Gobo6 Clockwise rotation from slow to fast Anti-clockwise rotation from slow to fast Gobo1 shake from slow to fast...
  • Page 21 Framing blade 2 right fine adjustment Framing blade 3 left Framing blade 3left linearly closing from big to small Framing blade 3 left in 16 bit Framing blade 3 left fine adjustment Framing blade 3 right Framing blade 3 right linearly closing from big to small Framing blade 3right in 16 bit Framing blade 3right fine adjustment Framing blade 4 left...
  • Page 22 Linearly focusing Focus Fine Focus in 16 precision Zoom Linearly zooming Zoom Fine Zoom in 16 Bit precision Autofocus While channels for Iris, Rotating Gobo Wheel and Framing blades are in use, the projector has automatic focus function at some distance.
  • Page 23 Reserved Fan standard mode Fan theater mode Reserved Fast speed dimmer Mid speed dimmer Slow speed dimmer Gamma curve 2.0 Gamma curve 2.2 Gamma curve 2.4 Gamma curve 2.6 LED refresh rate 1200Hz LED refresh rate 2400Hz LED refresh rate 4800Hz LED refresh rate 10000Hz LED refresh rate 12000Hz LED refresh rate 1500Hz...

  • Page 24: Signs On The Touch Screen

    8. SIGNS ON THE TOUCH SCREEN Config Settings Option Settings Information Address Service Error Messages Operation Mode Reset User Memories 9.ERROR MESSAGES The system can detect some errors during the reset, if displayed, touch to view the error. The error messages are as follows: Name Type Correction...

  • Page 25: Technicaldata

    10. TECHNICALDATA ELECTRICALPARAMETERS Input voltage: 100V-240VAC，50/60Hz Input power: 1450W @ 220V 1600W @ 100V Power factor: PF>0.95 Current at Maximum: 6.6A @ 220V OPTICALSYSTEM Light sources : 1000W white LED module 6900K Colour Temperature : CRI: Ra≥95 、R9≥95 ( Optional highly bright version: Ra≥70) >20000hrs Manufacturers Rated Lamp Life : COLOR S...
  • Page 26 GOBOS 1 rotating gobo wheel: 6 exchangeable+ open Bi-directional rotation, indexing, shake with varied speeds bi-directional scrolling with varied speeds 1#:120150185 2#:120150186 3#:120150187 4#:120150188 5#:120150189 6#:120150190 Gobo outer diameter :32 mm Image size: 24 mm 1 fixed gobo wheel 7 exchangeable gobos+ open Shake effect with varied speeds and bi-directional rotation with varied speeds 1#:110010483 2#:110010484...
  • Page 27 4 dimmer gamma curves Dimmer frequency adjustable between 1.2K and 25K STROBE Electronic strobe, 0.3~25 F.P.S HEAD MOVEMENT Pan 540º, Tilt 270º with auto position correction and 16 bit control CONTROL International standard DMX512 signal and RDM function 38channels in short mode, 42channels in standard mode,57channel in extended mode DMX512 wireless reciever DMX512 Transmitter ( Optional) ArtNet and sACN ( Optional)
  • Page 28 SIZES (unit: mm) INSTALLATION DIAGRAM viewed from the bottom (unit: mm) LIGHT OUTPUT：High CRI version:...

  • Page 29: Circuit Diagram

    High bright version 11. CIRCUIT DIAGRAM...

  • Page 31: Component Order Codes

    COMPONENT ORDER CODES NAME CODE NUMBER REMARK 192010228A SWITCHING POWER SUPPLY 192010215B SWITCHING POWER SUPPLY 150020328 LED LIGHT SOURCE 030040262 PAN MOTOR 030040262 TILT MOTOR 030040221A PRISM IN/OUT MOTOR 030040289 PRISM ROTATING MOTOR 030040073D FROST IN/OUT MOTOR 030040236A EFFECT WHEEL IN/OUT MOTOR EFFECT WHEEL ROTATING...
  • Page 32 Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320021514...
