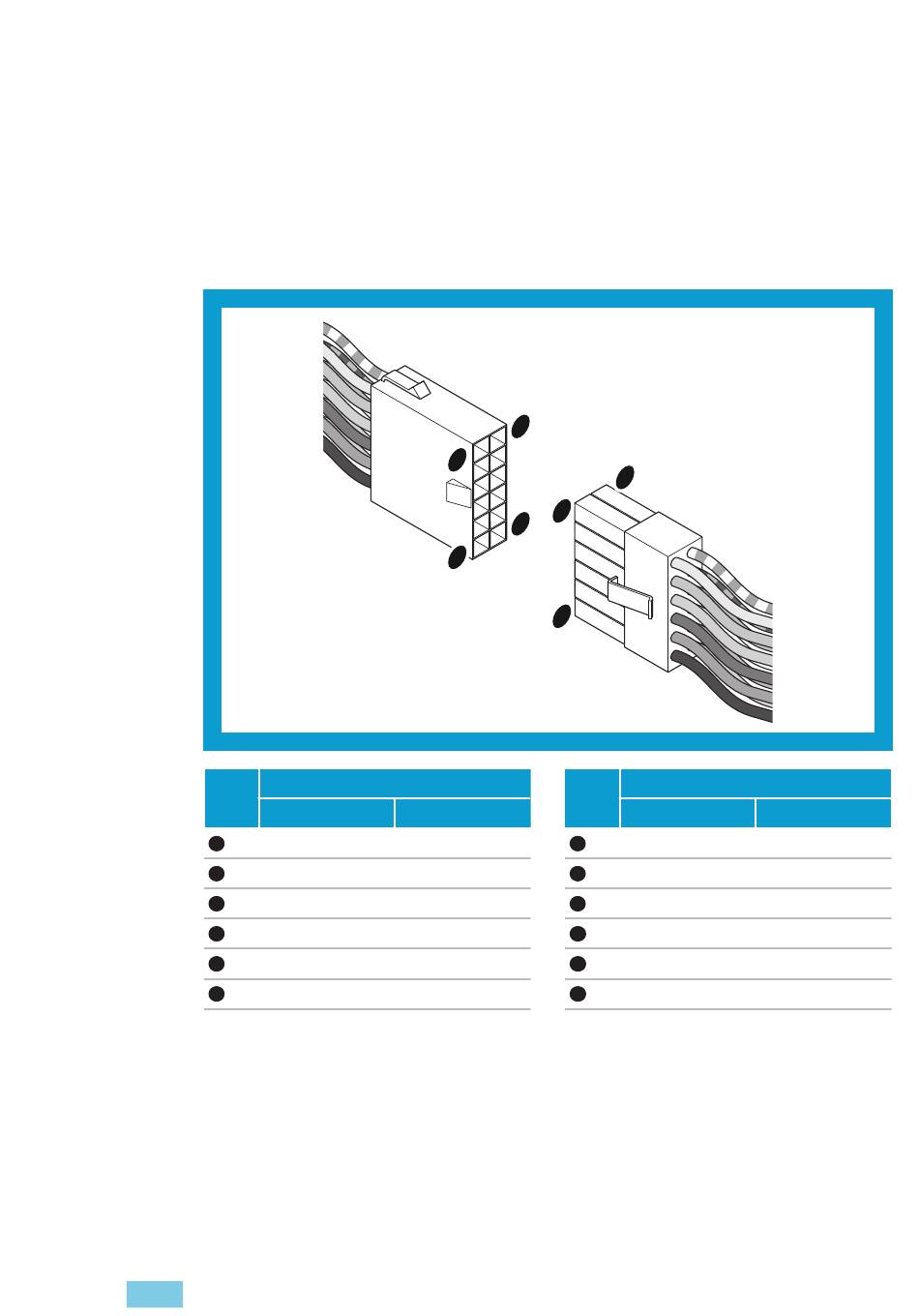

Fig. 11 :
Plug connection
mFlipLock check
EN
58

Cable assignment in mFlipLock check

PIN Plug
Fliplock Check
1 Black
2 Green
3 Red
4 Brown
5 Blue
6 White
1 2
1 1
1 1
2
1
1
PIN
Connection cable
Black
Green
Red
Brown 10
Blue 11
White 12
1 2
Plug
Fliplock Check
7 Pink
8 Purple
9 Grey
Turquoise
Yellow
Orange
Connection cable
Pink
Purple
Grey
Red/blue
Yellow
Grey/pink
