Assa Abloy Yale SR-BX-ZW Quick Manual

smart
Living
Front
Screw

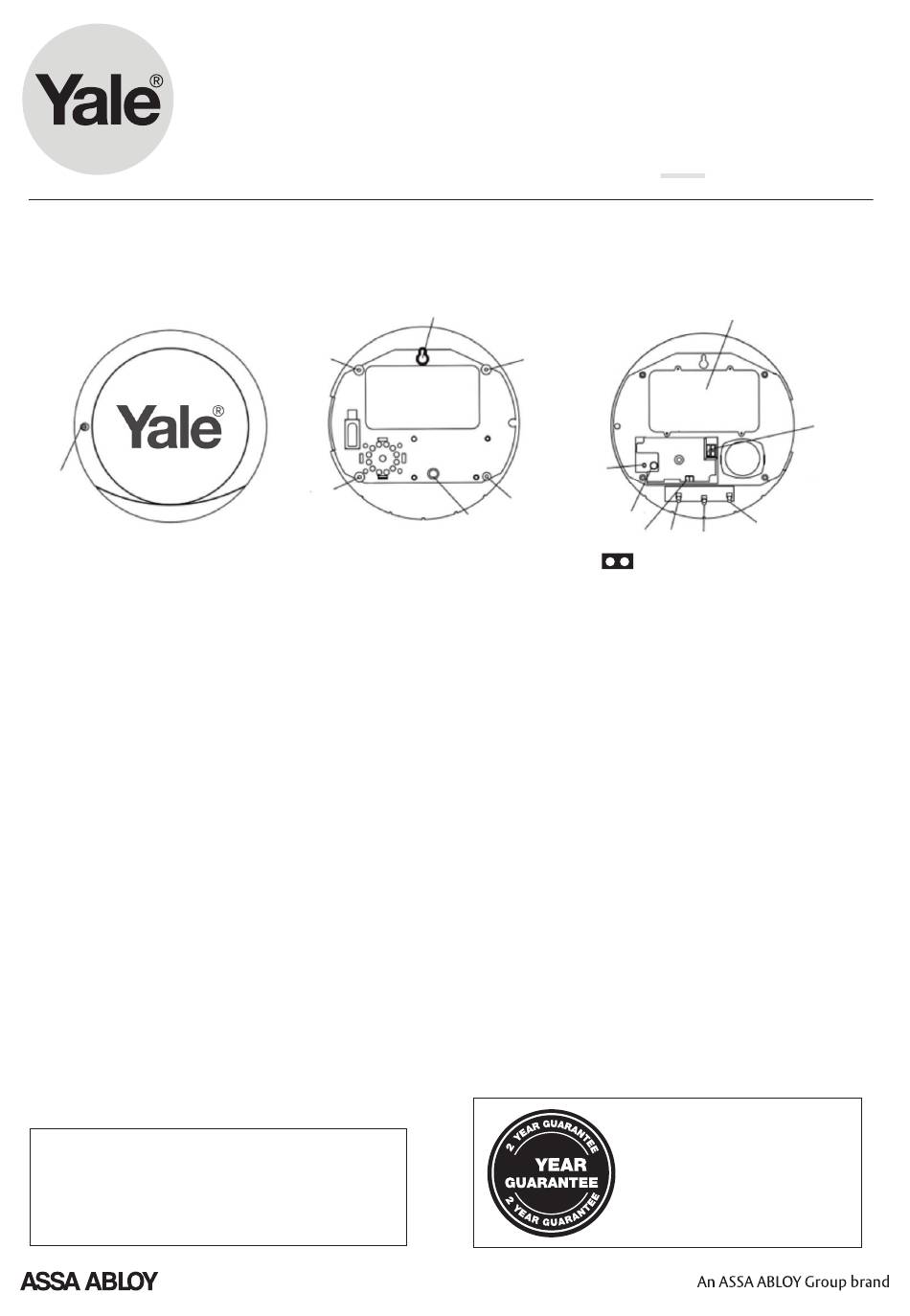

Front View

Description

SR-BX-ZW is a Z-Wave External Siren that can
connect to compatible Z-Wave enabled networks.
It is capable of sounding an alarm upon receiving
an alarm signal from the controller in the Z-Wave
network when an alarm is activated. When
triggered, the Siren will sound and the LED
strobe will flash to attract attention.

Power Supply

The Siren is powered by 4x D-cell Alkaline batteries.
On the right hand side of the PC board it has a
power switch to turn the batteries ON or OFF.
The Siren can also be powered using an optional 9V
1A power adaptor (via 9V power input). When wired,
the Siren will primarily draw power from the 9V
For more information on this product
and Yale Smart Living Range visit
www.yale.co.uk/smart-living
Consumer Support: info@yale.co.uk
Mounting
Screw
Mounting
Screw
Mounting
Screw
Back View
Mounting
Screw
Learn
Button
Front
Cover
Mounting
Tamper
Screw
Wall
9V Power
Tamper
Input
(-) (+)
power adaptor and the batteries will act as a backup
power source in the event of a power cut. The battery
ON/OFF switch does not effect the 9V power adaptor.
Under battery only operation (without 9V power
supply), the Siren will report the battery level (100%,
75%, 50%, 25%, 10%, 0%) and low battery condition
(when power drops below 10%). This indicates that
the Siren has less than 1 month of standby power
before the batteries are exhausted. The Siren will also
beep five times when arming/disarming to indicate low
battery condition.
Note: When changing batteries, press the learn button
a few times to fully discharge before inserting new
batteries.
2
1
External Siren
(SR-BX-ZW)
Battery
Compartment
LED 3
LED 1 LED 2
Inside View
The 2 year guarantee for this
product is active from the date
of purchase (A copy of this
guarantee is available on our
website).
Battery
Power
Switch
