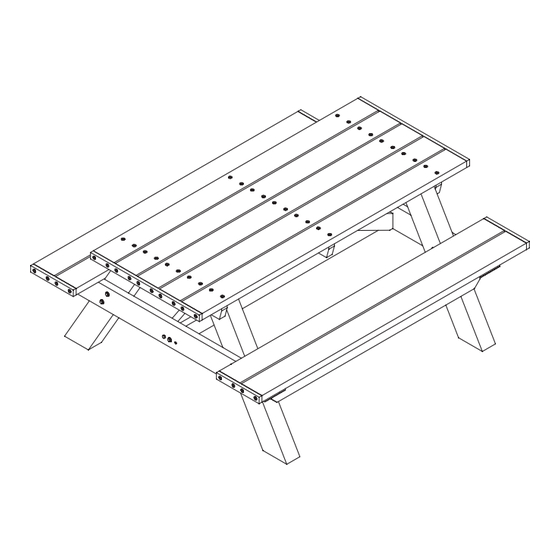

- Page 1 111 North River Road North Aurora, IL 60542 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # RPD6C Instructions Sheet RECYCLED PLASTIC DELUXE PICNIC TABLE www.belson.com...
- Page 2 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED. C - TABLE TOP ( 1 ) - ONE TABLE TOP FP - FASTENER PACK ( 1 ) - ONE FASTENER PACK D - SEAT ( 2 ) - TWO SEATS O - CENTER SUPPORT ( 1 ) - ONE CENTER SUPPORT H - SEAT CROSS SUPPORT...
- Page 3 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED. 2 - 3/8” X 4” HEX HEAD TAP BOLT 16 - 3/8” X 5” HEX HEAD BOLT 8 - 3/8” X 3” HEX HEAD LAG BOLT 4 - 3/8” X 2 1/2” HEX HEAD LAG BOLT 46 - 3/8”...
- Page 4 COUNTER BORE 3/8” FLAT WASHER 3/8” NYLON LOCK NUT 3/8” FLAT WASHER 3/8” X 5” HEX HEAD BOLT STEP #1: WHILE THE TABLE TOP IS UPSIDE-DOWN, FASTEN THE LEGS TO THE UNDER TOP SUPPORTS BEING SURE THAT THE COUNTER BORES ARE POINTING TOWARD THE CENTER OF THE TABLE AS SHOWN ABOVE.
- Page 5 3/8” FLAT WASHER 3/8” NYLON LOCK NUT 3/8” FLAT WASHER 3/8” X 5” HEX HEAD BOLT STEP #2: WHILE THE TABLE TOP IS UPSIDE - DOWN, FASTEN THE SEAT CROSS SUPPORTS TO THE LEGS. USE ( 1 ) ONE 3/8” X 5” HEX HEAD BOLT ALONG WITH ( 1 ) ONE 3/8” FLAT WASHER AND ( 1 ) 3/8” NYLON LOCK NUT PER HOLE TO SECURE.
- Page 6 3/8” FLAT WASHER 3/8” X 2 1/2” HEX HEAD LAG BOLT NOTE: LEG IS REMOVED TO SHOW DETAIL. DO NOT REMOVE FOR THIS STEP. STEP #3: WHILE THE TABLE TOP IS UPSIDE-DOWN, FASTEN AND ANGLE SUPPORTS TO THE SEAT CROSS SUPPORTS AND THE CENTER TOP SUPPORT.
- Page 7 STEP #4: PLACE ( 1 ) ONE 5/8” X 1” CROSS DOWEL IN EACH HOLE OF THE CENTER SUPPORT AS SHOWN IN THE DIAGRAM BELOW. YOU MAY NEED TO TAP THE CROSS DOWELS IN PLACE. BE SURE THE SCORE ON THE DOWEL HEAD IS IN LINE WITH THE LENGTH OF THE CENTER SUPPORT AS SHOWN BELOW.
- Page 8 STEP #6: WHILE THE TABLE TOP IS UPSIDE-DOWN, FASTEN THE UNDER SEAT SUPPORTS TO THE SEAT CROSS SUPPORTS. USE ( 1 ) ONE 3/8” X 3” HEX HEAD LAG BOLT AND ( 1 ) ONE 3/8” FLAT WASHER PER HOLE TO SECURE.
- Page 9 STEP #7: FLIP THE TABLE UPRIGHT ONTO THE LEGS. PLEASE TAKE CAUTION WHILE FLIPPING THE TABLE. AT THIS POINT IN ASSEMBLY THE TABLE WEIGHS APPROXIMATELY 260 POUNDS. www.belson.com...
- Page 10 #12 X 3” FLAT HEAD PHILLIPS SCREW STEP #8: WHILE THE TABLE IS UPRIGHT FASTEN THE SEATS TO THE SEAT CROSS SUPPORTS BEING SURE TO CENTER ALL HOLES OVER BOARDS. USE ( 1 ) ONE #12 X 3” FLAT HEAD PHILLIPS SCREW PER HOLE TO SECURE.
