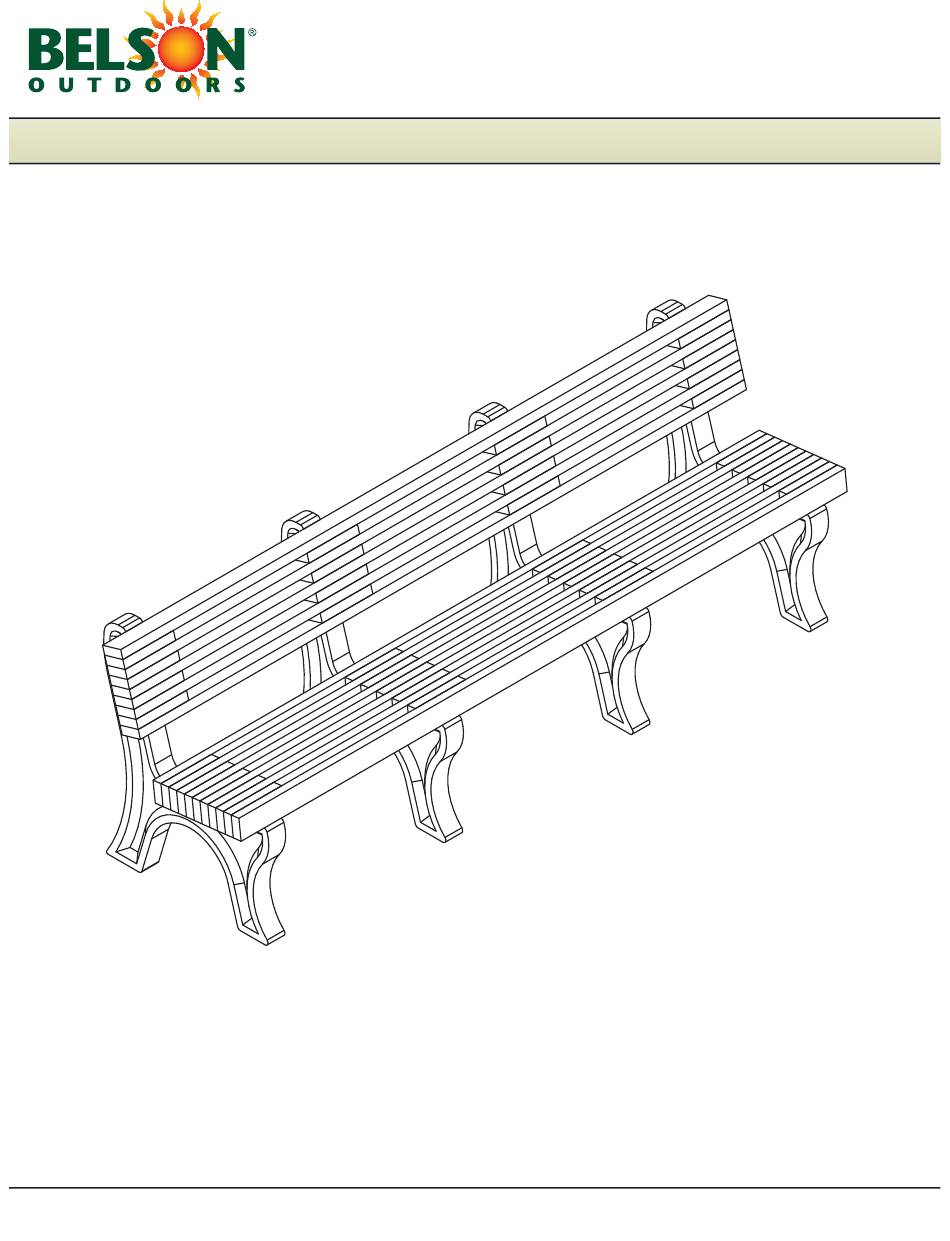

- Page 1 111 North River Road North Aurora, IL 60542 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # RS8WB-PC Instructions Sheet ELITE OUTDOOR PARK BENCH 8’ www.belson.com...
- Page 2 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED. FP FASTENER PACK ONE FASTENER PACK FOUR BENCH ENDS ONE BACK BENCH BOARD ONE SEAT BENCH BOARD www.belson.com...
- Page 3 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED. 32 - #12 X 3” FLAT HEAD PHILLIPS SCREWS ALSO NEEDED FOR THIS ASSEMBLY WILL BE THE FOLLOWING MATERIALS: 1 - 3” PHILLIPS DRIVE BIT www.belson.com...
- Page 4 STEP #1: ON THE CARDBOARD THAT THE BENCH WAS SHIPPED IN, STAND THE SEAT BENCH BOARD ON EDGE WITH THE PILOT HOLES CLOSER TO THE GROUND, ON A LEVEL SURFACE. #12 X 3” FLAT HEAD PHILLIPS SCREW STEP #2: PLACE IN POSITION ( 1 ) ONE BENCH END AS SHOWN IN DIAGRAM, BEING SURE TO ALIGN THE PILOT HOLES TO THE PRE-DRILLED HOLES IN THE BENCH END.
- Page 5 #12 X 3” FLAT HEAD PHILLIPS SCREW STEP #3: REPEAT STEP #2 FOR THE REMAINING BENCH ENDS. NOTE: BE SURE TO TIGHTEN ALL SCREWS COMPLETELY AFTER THIS STEP. www.belson.com...
- Page 6 STEP #4: PLACE THE BENCH IN THE UP RIGHT POSITION. USE CARE, FOR THE BENCH WEIGHS APPROXIMATELY 150 POUNDS. #12 X 3” FLAT HEAD PHILLIPS SCREW STEP #5: PLACE THE BACK BENCH BOARD IN POSITION SHOWN IN DIAGRAM. USE ( 1 ) ONE #12 X 3” FLAT HEAD PHILLIPS SCREW IN THE TOP HOLE OF THE LEFT BENCH END.
- Page 7 #12 X 3” FLAT HEAD PHILLIPS SCREW STEP #6: USING ( 1 ) ONE #12 X 3” FLAT HEAD PHILLIPS SCREW PER HOLE, FINISH FASTENING THE BACK BENCH BOARD TO THE BENCH ENDS. NOTE: BE SURE TO TIGHTEN ALL SCREWS COMPLETELY AFTER THIS STEP. www.belson.com...
