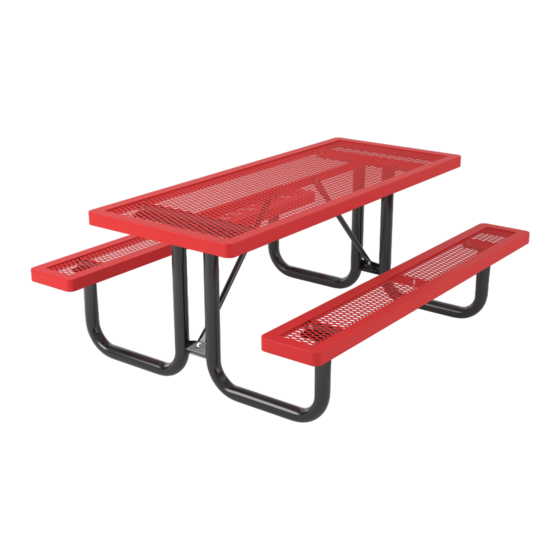

Traditional rectangular portable table

Advertisement

Quick Links

Model # R6-P
TRADITIONAL RECTANGULAR PORTABLE TABLE
Inspect the shipment for damage and conduct a thorough
inventory to determine that all parts and hardware are present and
verify that all tools needed for assembly are on hand.
We are not responsible for items discovered missing or
damaged after 72 hours from time of delivery!
If you have a question regarding anything covered in this manual,
please contact your sales representative.
It is very important to use care when assembling and moving
the equipment. Do not drag the equipment across any surface.
This equipment requires periodic cleaning with a sponge or
soft cloth and a solution of mild detergent and water. You may
also use a solution of 50/50 bleach/water if necessary. Do not
clean with a solvent or petroleum-based products.
A pressure washer may be used for cleaning (follow
manufacturer's recommendations for nozzle type and distance
from surface to avoid damaging finish).
You may use a hair dryer to smooth out the plastisol/PVC
coating if it becomes dented.
WARNING!

Recommended Crew:

Tools Required:

Assembly Time (approximately):

www.belson.com
North Aurora, IL 60542
Phone: (800) 323-5664
Instructions Sheet
Furniture must not be used other
than for its intended purpose. It
should be inspected regularly for
loose, missing or broken hard-
ware and general instability.
Furniture that is damaged or
appears to be unstable must be
removed from service and
repaired or replaced. Repairs
must be made using only factory
authorized parts and methods.
Minimum 2 People
Cardboard from Packaging / Drop Cloth
Level
Ratchet with 1/2" Socket
1/2" Open-End or Box-End Wrench
1 hour
111 North River Road
Fax: (630) 897-0573
sales@belson.com
2014-10-08 – Page 1
