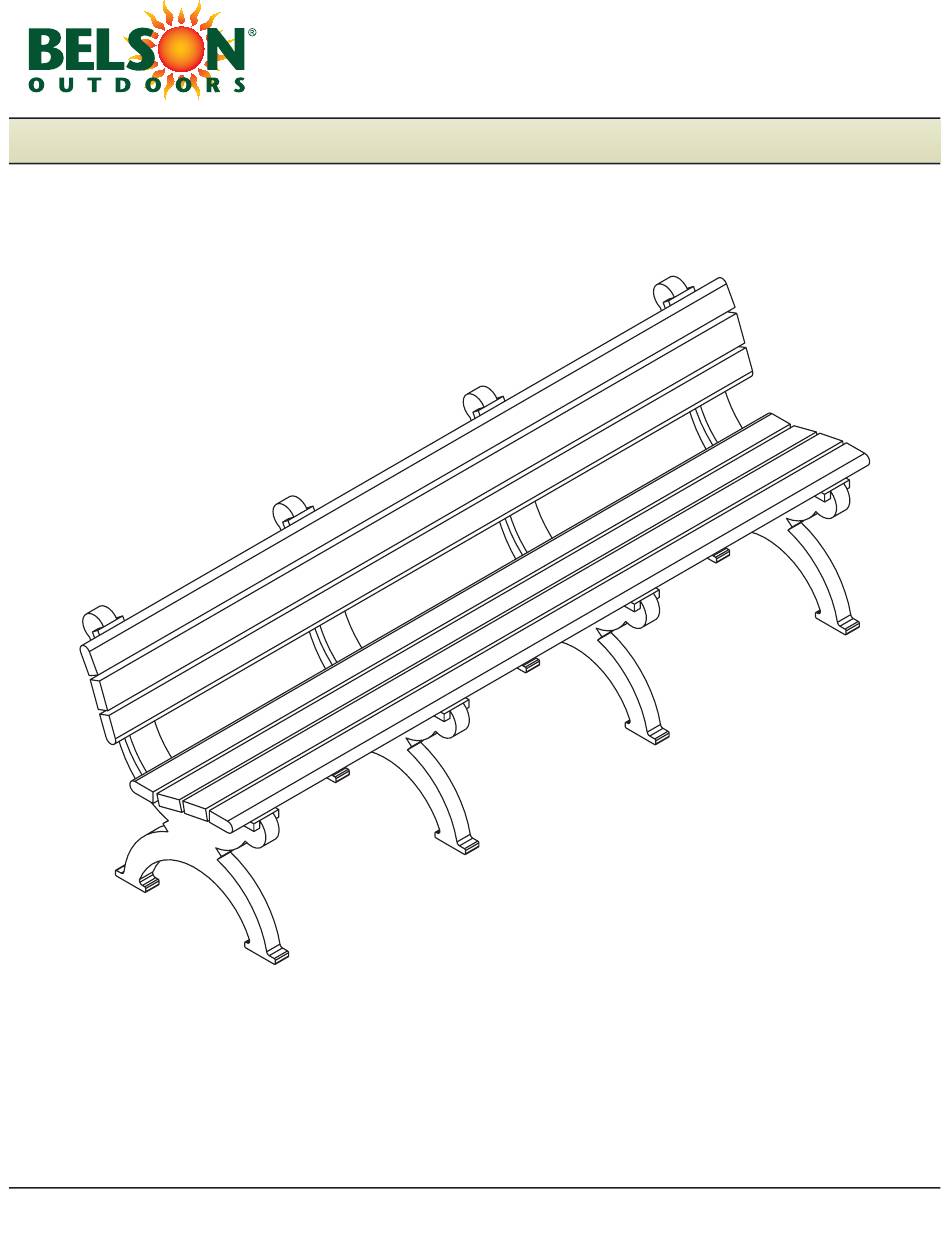

- Page 1 111 North River Road North Aurora, IL 60542 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # DF8WB-P Instructions Sheet RECYCLED PLASTIC 8’ SILHOUETTE BENCH WITH BACK www.belson.com...
- Page 2 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED. FP - FASTENER PACK ( 1 ) - ONE FASTENER PACK BENCH END ( 4 ) - FOUR BENCH ENDS A - BENCH BOARD ( 3 ) - THREE BENCH BOARDS B- BULL-NOSED BENCH BOARD ( 4 ) - FOUR BULL-NOSED BENCH BOARDS www.belson.com...
- Page 3 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED. 56 - #12 X 1-1/2” PAN HEAD PHILLIPS SCREWS ALSO NEEDED FOR THIS ASSEMBLY WILL BE THE FOLLOWING MATERIALS: 1 - 3” PHILLIPS DRIVE BIT www.belson.com...
- Page 4 FIG #1: IN ORDER TO MAKE THE ASSEMBLY OF THIS SILHOUETTE BENCH EASIER WHILE GOING THROUGH THE ASSEMBLY PROCESS THE BOARD POSITIONS ARE NUMBERED AND WILL BE REFERENCED IN LATER STEPS. #12 X 1-1/2” PAN HEAD PHILLIPS SCREW NOTE: STAND BENCH ENDS FLAT ON GROUND.
- Page 5 #12 X 1-1/2” PAN HEAD PHILLIPS SCREW STEP #2: STAND THE OTHER ( 3 ) THREE BENCH ENDS UPRIGHT, ONE AT TIME, AND PLACE THE BULL-NOSED BENCH BOARD ( B ) ALREADY ATTACHED TO THE FIRST BENCH END, ON POSITION 1, BEING SURE TO ALIGN THE PILOT HOLES WITH THE PRE-DRILLED HOLES IN THE BENCH END.
- Page 6 STEP #3: ALIGN THE PILOT HOLES ON THE BULL-NOSED BENCH BOARD ( B ) TO THE PRE-DRILLED HOLES ON THE LEFT SIDE OF THE BENCH ENDS. AFTER THE HOLES ARE PROPERLY ALIGNED, FASTEN WITH ( 1 ) ONE #12 X 1-1/2” PAN HEAD PHILLIPS SCREW PER BENCH END. NOTE: BE SURE TO TIGHTEN SCREWS COMPLETELY AFTER THIS STEP.
- Page 7 #12 X 1-1/2” PAN HEAD PHILLIPS SCREW STEP #5: REPEAT STEPS 1 – 3 TO ATTACH BENCH BOARDS ( A ) ON POSITIONS 2, 5, & 6 AND BULL-NOSED BENCH BOARDS ( B ) ON POSITIONS 3 & 4. USE ( 1 ) ONE #12 X 1-1/2” PAN HEAD PHILLIPS SCREW PER HOLE TO FASTEN.
