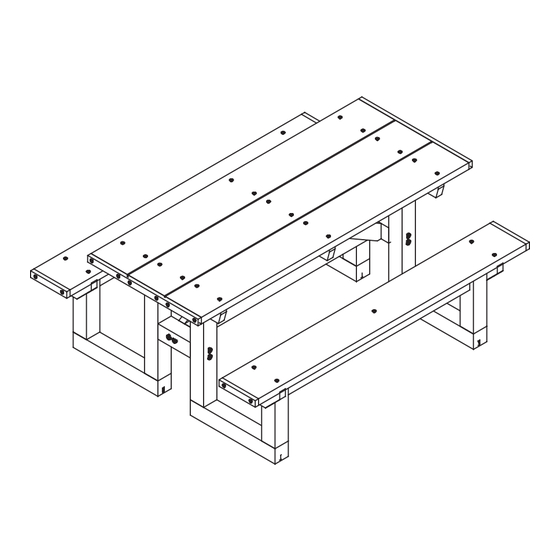

- Page 1 111 North River Road North Aurora, IL 60542 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # PTST6 Instructions Sheet RECYCLED PLASTIC STEP THROUGH PICNIC TABLES www.belson.com...
- Page 2 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED. FP - FASTENER PACK ( 1 ) - ONE FASTENER PACK A - TABLE TOP ( 1 ) - ONE TABLE TOP F - ANGLE SUPPORT ( 2 ) - TWO ANGLE SUPPORTS I - CENTER SUPPORT ( 1 ) - ONE CENTER SUPPORT D - SEAT...
- Page 3 BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED. 10 - 3/8” X 5“ HEX HEAD BOLT 18 - 3/8” X 4“ HEX HEAD LAG BOLT 2 - 3/8” X 2-1/2” HEX HEAD LAG BOLT 8 - 3/8” NYLON LOCK NUT 38 - 3/8”...
- Page 4 LEG CROSS BLOCK 3/8” FLAT WASHER 3/8” X 4” HEX HEAD LAG BOLT STEP #1: WHILE LEGS ARE PLACED IN THE CONFIGURATION AS SHOWN ABOVE PLACE A LEG CROSS BLOCK BETWEEN THE TWO LEGS AND ALIGN THE HOLES, INSERT ( 1 ) - ONE 3/8” X 4” HEX HEAD LAG BOLT WITH ( 1 ) - ONE 3/8”...
- Page 5 3/8” FLAT WASHER 3/8” NYLON LOCK NUT 3/8” X 5” HEX HEAD BOLT 3/8” FLAT WASHER STEP #2: WHILE THE TABLE TOP IS UPSIDE-DOWN, FASTEN THE LEGS TO THE UNDER TOP SUPPORTS BEING SURE THAT THE COUNTER BORES ARE POINTING TOWARD THE CENTER OF THE TABLE AS SHOWN ABOVE. USE ( 1 ) ONE 3/8”...
- Page 6 3/8” X 4” LAG BOLT 3/8” X 2-1/2” LAG BOLT 3/8” FLAT WASHER 3/8” FLAT WASHER NOTE: LEG HAS BEEN REMOVED FOR CLARITY. PLEASE DO NOT REMOVE LEG. STEP #3: WHILE THE TABLE TOP IS UPSIDE-DOWN, FASTEN THE CROSS SUPPORTS TO THE LEGS. USE ( 1 ) ONE 3/8”...
- Page 7 CROSS DOWEL MAKE SURE YOU ALIGN THE HOLE IN THE CROSS DOWEL WITH THE TAP BOLT HOLE THEN THREAD THE 4” HEX HEAD TAP BOLT TOGETHER. 3/8” FLAT WASHER 3/8” X 5” HEX HEAD BOLT STEP #4: WHILE TABLE IS UP-SIDE-DOWN SLIDE THE CROSS DOWEL INTO THE CROSS SUPPORT BOARD ON BOTH ENDS.
- Page 8 NOTE: BE SURE TO TIGHTEN AL L THE LOOSE BOLTS AFTER THIS STEP IS COMPLETE. 3/8” X 5” HEX HEAD LAG BOLT 3/8” FLAT WASHER STEP #5: WHILE THE TABLE TOP IS UPSIDE-DOWN, FASTEN THE UNDER SEAT SUPPORTS TO THE SEAT CROSS SUPPORTS.
- Page 9 STEP #6: FLIP THE TABLE UPRIGHT ONTO THE LEGS. PLEASE TAKE CAUTION WHILE FLIPPING THE TABLE. AT THIS POINT IN THE ASSEMBLY THE TABLE WEIGHS APPROXIMATELY 260 POUNDS. #12 X 3” FLAT HEAD PHILLIPS SCREW STEP #7: WHILE TABLE IS IN THE UP RIGHT POSITION ALIGN THE HOLES ON THE SEAT SUPPORTS WITH THE PRE DRILLED HOLES IN THE LEG AND SCREW A #12 X 3”...
- Page 10 #12 X 3” FLAT HEAD PHILLIPS SCREW STEP #8: WHILE THE TABLE IS UPRIGHT FASTEN THE SEATS TO THE SEAT CROSS SUPPORTS AND UNDER SEAT SUPPORTS BEING SURE TO CENTER ALL HOLES OVER BOARDS. USE ( 1 ) ONE #12 X 3” FLAT HEAD PHILLIPS SCREW PER HOLE TO SECURE.
