Belson Outdoors RB-CA Instruction Sheet

Recycled plastic bench optional center arm

627 Amersale Drive

Naperville, IL 60563

Phone: (800) 323-5664

Fax: (630) 897-0573

sales@belson.com

Model # RB-CA

Instructions Sheet

RECYCLED PLASTIC BENCH OPTIONAL CENTER ARM

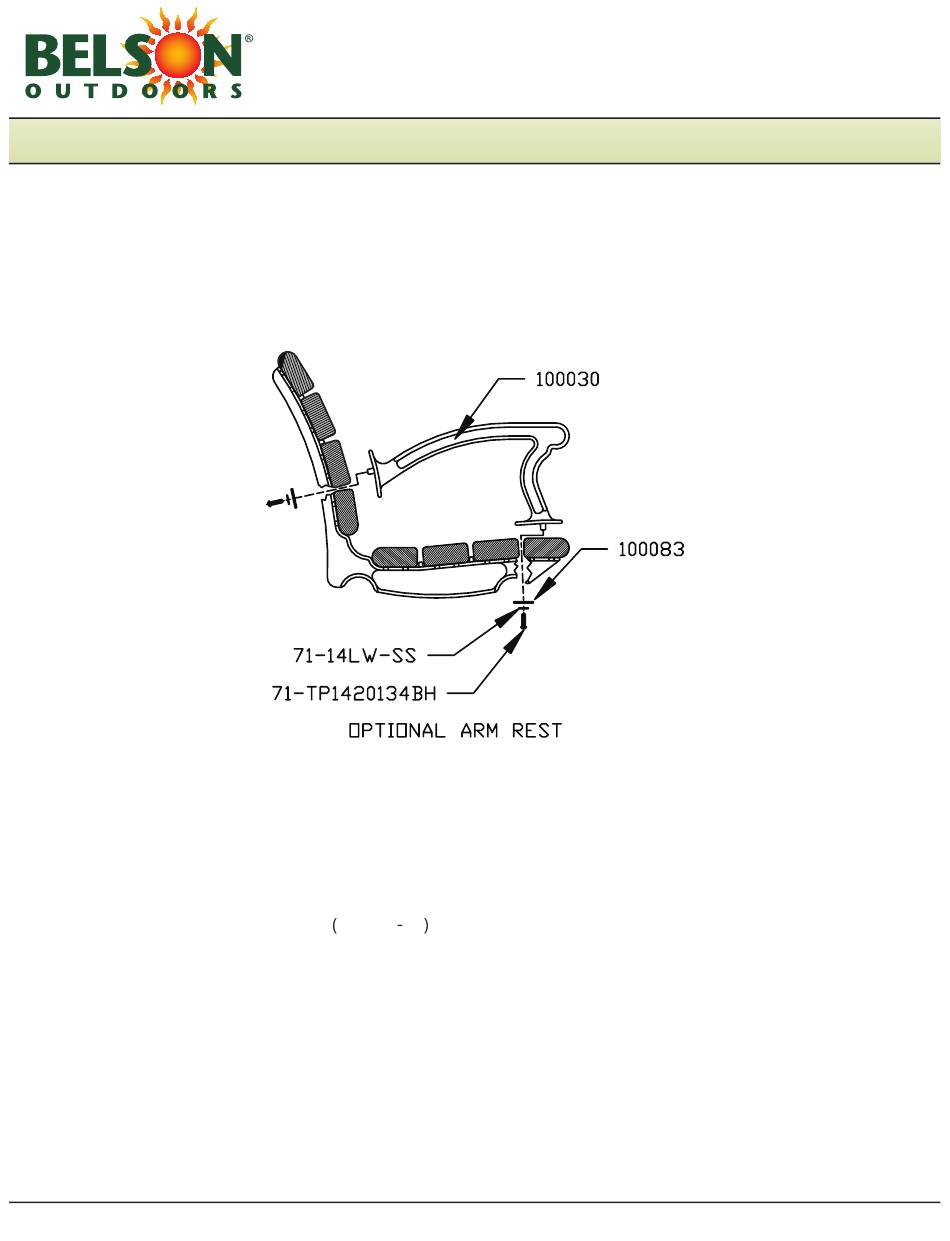

DIAGRAM 1: LOCATING ARM REST

STEP #1:

UNPACK AND LAY OUT PIECES IN THE KIT. VERIFY THAT THE PARTS, QUANTITY, AND COLOR MATCH

THOSE ON THE ENCLOSED BILL OF MATERIAL.

STEP #2:

BEGIN WITH THE ARM CASTING 100030 X_ AND SET IT UPRIGHT ON THE BENCH, NEAR

DESIRED LOCATION WITH THE LONG LENGTH FACING TOWARD THE BACK OF THE BENCH.

SEE DIAGRAM 1.

STEP #3:

INSERT THE "BACK" END OF THE ARM WITH ITS LUG BETWEEN THE BOTTOM AND NEXT LOWER

BOARDS ON THE BACK OF THE BENCH. SEE DIAGRAM 1

STEP #4:

MOVE THE ARM SO IT IS AT AN ANGLE TO THE BACK OF THE BENCH. PUSH DOWN ON THE ARM

TO SET THE "FRONT" LEG WITH THE LUG BETWEEN THE TWO OUTER BOARDS ON THE SEAT OF THE

BENCH. SEE DIAGRAM 1.

www.belson.com

Table of Contents

Need help?

Do you have a question about the RB-CA and is the answer not in the manual?

Page 1 627 Amersale Drive Naperville, IL 60563 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # RB-CA Instructions Sheet RECYCLED PLASTIC BENCH OPTIONAL CENTER ARM DIAGRAM 1: LOCATING ARM REST STEP #1: UNPACK AND LAY OUT PIECES IN THE KIT. VERIFY THAT THE PARTS, QUANTITY, AND COLOR MATCH THOSE ON THE ENCLOSED BILL OF MATERIAL.
Page 2 DIAGRAM 2: LOCATING ANCHOR PLATES STEP #5: STRAIGHTEN THE ARM SO IT IS PERPENDICULAR TO THE BACK OF THE BENCH. SLIDE THE ARM INTO THE LOCATION DESIRED ON THE BENCH. USUALLY THE ARM MOUNTS AT A CENTER POSITION BETWEEN ENDS. NOTE: ON AN EIGHT FOOT BENCH 400201 , THE OPTIONAL ARM WILL MOUNT TO ONE SIDE OR THE OTHER OF THE SUPPORT CASTING 100031 TO CENTER THE ARM FOR COMFORTABLE SEATING IT WILL BE NECESSARY TO MOVE THE SUPPORT CASTING TO A DIFFERENT LOCATION.
Page 3 DIAGRAM 3: ALIGNMENT, FRONTAL VIEW STEP #8: MAKE CERTAIN THE ARM IS ORIENTED VERTICALLY TO THE SEAT, PERPENDICULAR TO THE BACK OF THE BENCH, AND IN LOCATION DESIRED. TIGHTEN THE FOUR SCREWS. NOTE: USE CARE WHEN TIGHTENING SCREWS TO AVOID STRIPPING THE THREADS IN THE CAST ALUMINUM SPACING LUG. SEE DIAGRAM 3.
