molex 63811-8900 Manual

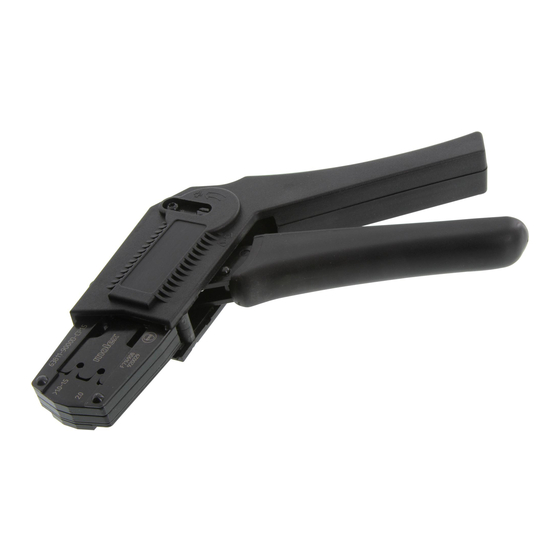

Type 7, hand crimp tool
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Hand Crimp Tool for CP 1.5 Series Crimp Terminals
HAND CRIMP
TOOL
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is WHMA-IPCA620 Class 3 only with specified wire types and RoHS compliant
SCOPE
Products: 1.50mm (.059") CP 1.5 Female Crimp Terminals for CMC connector 1.00-0.50mm
Terminal Series No.
98915
64323
Note: Terminal will accommodate the thin wall small insulation with the IR or ID type Metric wires.
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-638118900
Revision: D
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
98915-1029
64323-1029
98915-1319
64323-1319
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 02-12-07
Revision Date: 11-22-10
Wire Size
Insulation Diameter
AWG
mm²
mm
1.00
1.75-1.90
0.75
1.60-1.80
0.60
1.75-1.90
0.50
1.40-1.50
SEAM
UNCONTROLLED COPY
TYPE 7
Order No. 63811-8900
2
.
Strip Length
In.
mm
In.
.069-.075
4.50
.177
.063-.071
4.50
.177
.069-.075
4.50
.177
.055-.059
4.50
.177
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63811-8900 and is the answer not in the manual?

Questions and answers

Related Manuals for molex 63811-8900

Summary of Contents for molex 63811-8900

  • Page 1 TOOL Application Tooling TYPE 7 Specification Sheet Order No. 63811-8900 FEATURES A full cycle ratcheting hand tool ensures complete crimps A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position This tool is WHMA-IPCA620 Class 3 only with specified wire types and RoHS compliant SCOPE Products: 1.50mm (.059") CP 1.5 Female Crimp Terminals for CMC connector 1.00-0.50mm...

  • Page 2: Operation

    Minimum pull force specifications listed OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.

  • Page 3: Maintenance

    Hand Crimp Tool for CP 1.5 Series Crimp Terminals Note: The tamper proof ratchet action will not release the tool until it has been fully closed. WIRE IS UP AGAINST 6. Remove the crimped terminal from the terminal locator. THE WIRE STOP TERMINAL 7.

  • Page 4: Warranty

    This tool is designed for hand use only. Any clamping, fixturing, or use of handle extensions voids this warranty. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. CAUTIONS: 1.
  • Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.

  • Page 6: Parts List

    Hand Crimp Tool for CP 1.5 Series Crimp Terminals PARTS LIST Item Number Order Number Description Quantity 63811-8900 Hand Crimp Tool Figure 5 63811-8975 Locator 11-11-0320 Spring (Ratchet) 63600-0479 Spring (Main) 69008-0972 Adjuster Wheel M3 X 6LG BHCS Figure 5 http://www.molex.com...
