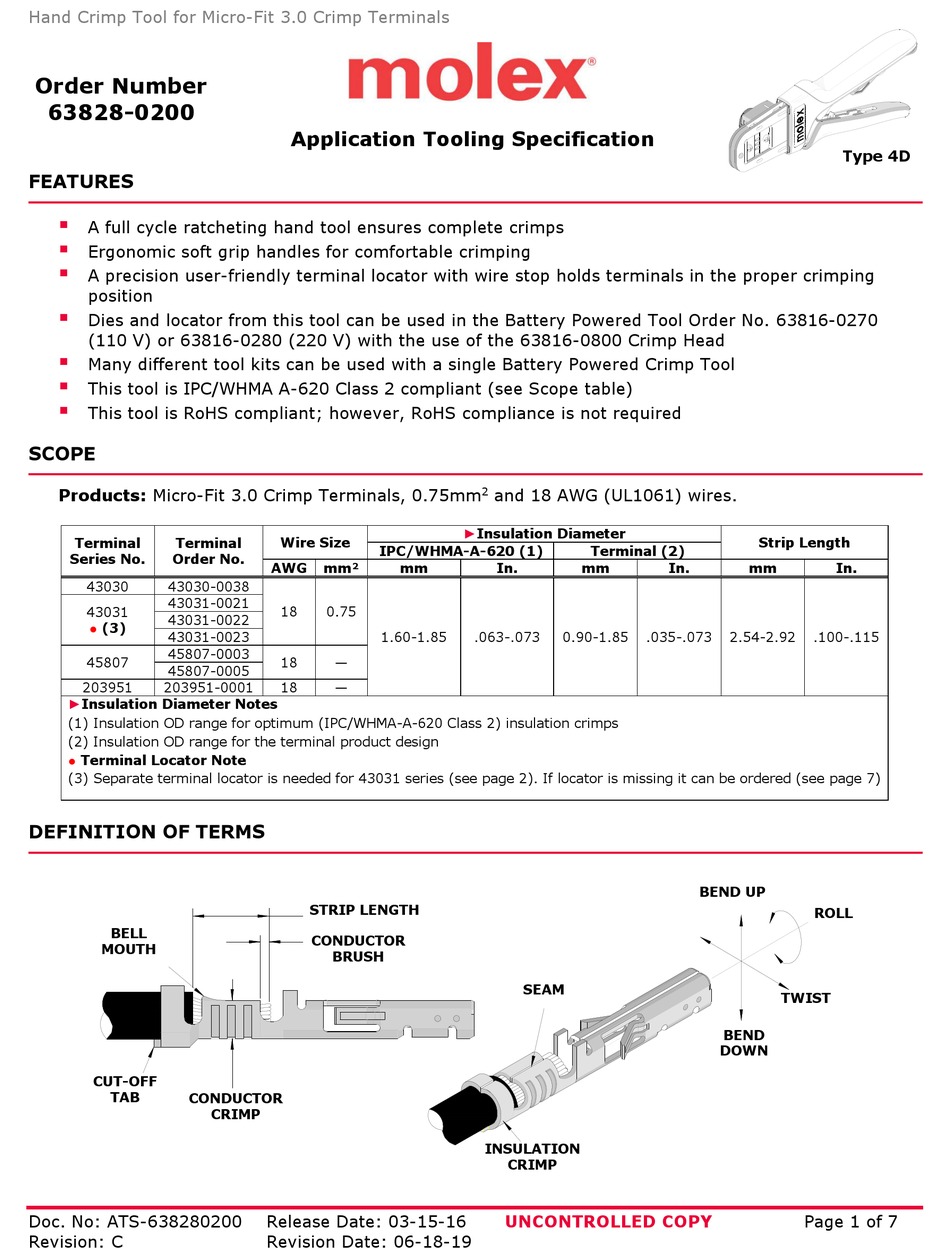

molex 63828-0200 Manual

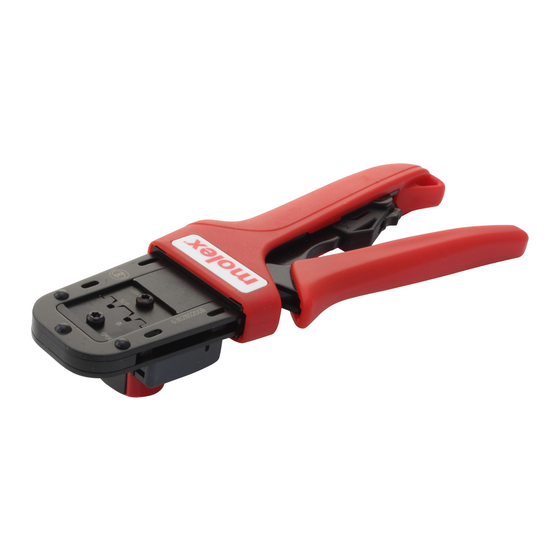

Hand Crimp Tool for Micro-Fit 3.0 Crimp Terminals
Order Number
63828-0200

FEATURES


A full cycle ratcheting hand tool ensures complete crimps

Ergonomic soft grip handles for comfortable crimping

A precision user-friendly terminal locator with wire stop holds terminals in the proper crimping
position

Dies and locator from this tool can be used in the Battery Powered Tool Order No. 63816-0270
(110 V) or 63816-0280 (220 V) with the use of the 63816-0800 Crimp Head

Many different tool kits can be used with a single Battery Powered Crimp Tool

This tool is IPC/WHMA A-620 Class 2 compliant (see Scope table)

This tool is RoHS compliant; however, RoHS compliance is not required

SCOPE

Products: Micro-Fit 3.0 Crimp Terminals, 0.75mm
Terminal Terminal
Series No. Order No.
43030 43030-0038
43031-0021
43031
43031-0022
● (3)
43031-0023
45807-0003
45807
45807-0005
203951 203951-0001
►Insulation Diameter Notes
(1) Insulation OD range for optimum (IPC/WHMA-A-620 Class 2) insulation crimps
(2) Insulation OD range for the terminal product design
● Terminal Locator Note
(3) Separate terminal locator is needed for 43031 series (see page 2). If locator is missing it can be ordered (see page 7)

DEFINITION OF TERMS

BELL
MOUTH
CUT-OFF
TAB
CONDUCTOR
Doc. No: ATS-638280200
Revision: C
Application Tooling Specification
Wire Size
IPC/WHMA-A-620 (1)
AWG mm²
18 0.75
1.60-1.85
18 —
18 —
STRIP LENGTH
CONDUCTOR
BRUSH
CRIMP
Release Date: 03-15-16
Revision Date: 06-18-19
2 and 18 AWG (UL1061) wires.
►Insulation Diameter
mm In.
.063-.073 0.90-1.85
SEAM
INSULATION
CRIMP
UNCONTROLLED COPY
Strip Length
Terminal (2)
mm In. mm
.035-.073 2.54-2.92
BEND UP
BEND
DOWN
Type 4D
In.
.100-.115
ROLL
TWIST
Page 1 of 7
