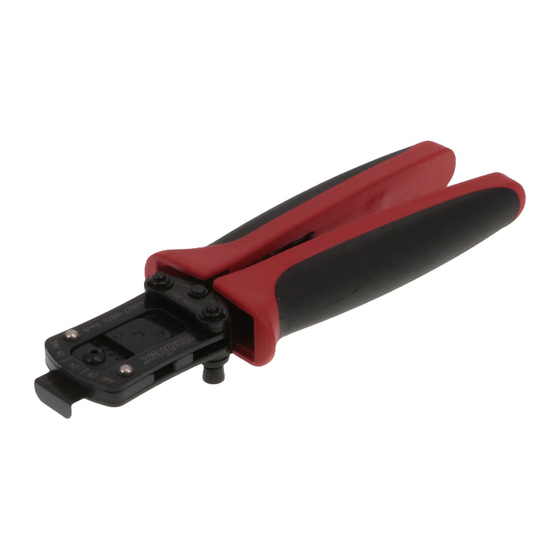

Hand Crimp Tool for EconoLatch Male and Female Crimp Terminals
Modular Crimp Head
Order No. 63828-0670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
A-620 Class 2 compliant as indicated and RoHS compliant
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700)
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
Products: EconoLatch Male and Female Terminals, 16 AWG-18AWG UL1061 and 18 AWG UL1007 wires.
Terminal
Terminal Order No.
Series No.
150180
150180-1016
150181
150181-1016
(1) To achieve optimum IPC-A620 insulation crimps, use this insulation OD range (example 16AWG UL1061 and 18AWG UL1007).
(2) Overall insulation OD specification for terminal.
DEFINITION OF TERMS
BELL MOUTH
CUT-OFF
TAB
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.

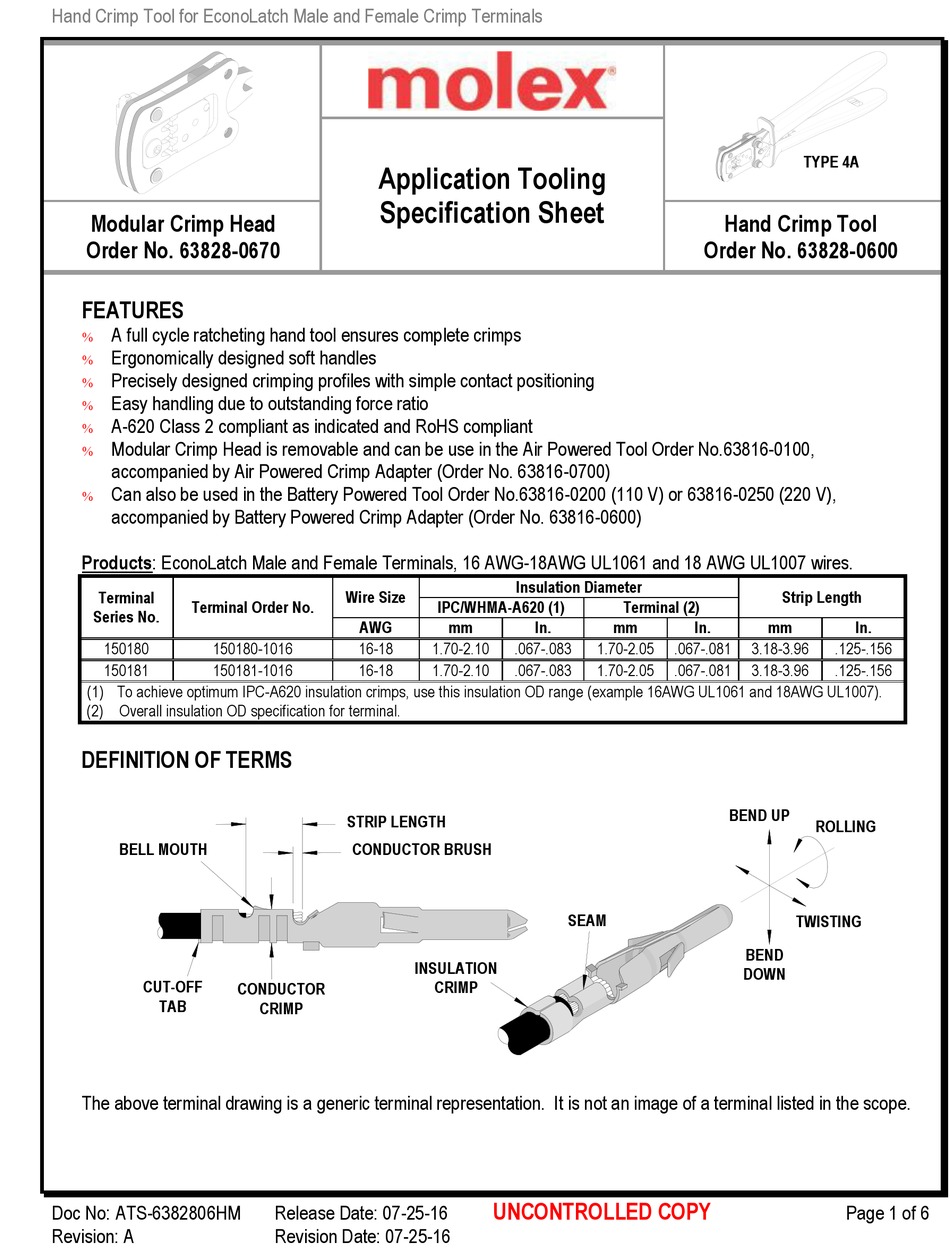

Doc No: ATS-6382806HM
Revision: A
Application Tooling
Specification Sheet
Wire Size
AWG
16-18
16-18
STRIP LENGTH
CONDUCTOR BRUSH
INSULATION
CONDUCTOR
CRIMP
Release Date: 07-25-16
Revision Date: 07-25-16
Insulation Diameter
IPC/WHMA-A620 (1)
mm
In.
1.70-2.10
.067-.083
1.70-2.05
1.70-2.10
.067-.083
1.70-2.05
SEAM
CRIMP
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63828-0600
Strip Length
Terminal (2)
mm
In.
mm
.067-.081
3.18-3.96
.067-.081
3.18-3.96
BEND UP
BEND
DOWN
TYPE 4A
In.
.125-.156
.125-.156
ROLLING
TWISTING
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63828-0600
Summary of Contents for molex 63828-0600
- Page 1 TYPE 4A Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63828-0670 Order No. 63828-0600 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning ...
- Page 2 Hand Crimp Tool for EconoLatch Male and Female Crimp Terminals CRIMP SPECIFICATIONS Cut-off Tab Maximum Bell mouth Conductor Brush Terminal Series No. (Contact side) 150180 0.10-0.60 .004-.024 0.40 .016 0.25-0.65 .010-.030 150181 0.10-0.60 .004-.024 0.40 .016 0.25-0.65 .010-.030 To achieve the conductor brush specification, special care must be taken, or a light touch ...
- Page 3 Hand Crimp Tool for EconoLatch Male and Female Crimp Terminals 5. While holding the locator against the hand tool insert the proper wire size into the terminal. See Figure 2. WIRE STOP CONDUCTOR CONDUCTOR INSULATION BLADE PUNCH PUNCH PUNCH WIRE AGAINST WIRE STOP WIRE TERMINAL...
- Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 5 Hand Crimp Tool for EconoLatch Male and Female Crimp Terminals The chart below shows all applications for this Modular Crimp Head. Modular Crimp Head Tool Tool Adapter Adapter Figure Order No. Order no. Description Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63828-0670 63816-0200 Battery Power Tool (110 V) 63816-0600 Battery Power Crimp Adapter...
- Page 6 Figure 8 SPRING (2) Application Tooling Support 2200 Wellington Court Lisle, IL 60532 USA Phone: +1-402-458-TOOL (8665) E-mail: applicationtooling@molex.com Visit our Website at www.molex.com/applicationtooling UNCONTROLLED COPY Doc No: ATS-6382806HM Release Date: 07-25-16 Page 6 of 6 Revision: A Revision Date: 07-25-16...
